Projector
CP-SX635
User's Manual (detailed) – Operating Guide

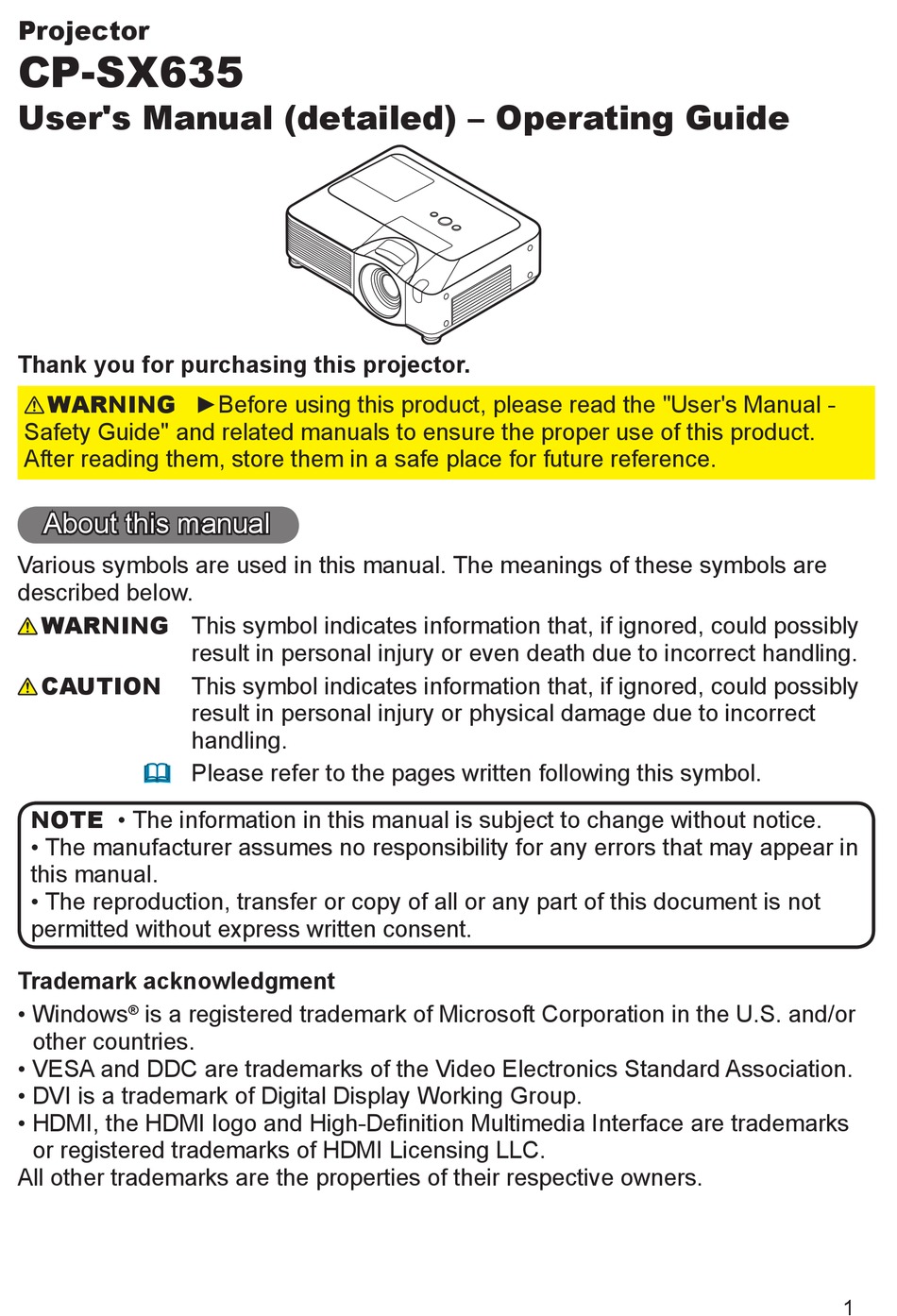

Thank you for purchasing this projector.
WARNING
Safety Guide" and related manuals to ensure the proper use of this product.
After reading them, store them in a safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
• Windows
is a registered trademark of Microsoft Corporation in the U.S. and/or
®
other countries.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
• DVI is a trademark of Digital Display Working Group.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
All other trademarks are the properties of their respective owners.
►Before using this product, please read the "User's Manual -
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
Please refer to the pages written following this symbol.
1
Advertisement
Table of Contents
Related Manuals for Hitachi CP-SX635
Summary of Contents for Hitachi CP-SX635
-
Page 1: About This Manual
Projector CP-SX635 User's Manual (detailed) – Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read the "User's Manual - Safety Guide" and related manuals to ensure the proper use of this product. After reading them, store them in a safe place for future reference. -
Page 2: Table Of Contents
Contents Contents About this manual . . . . . . . . . . . 1 (EASY MENU continued ..26) Contents . -
Page 3: Projector Features
Projector features / Preparations Projector features This projector has a capability to project various picture signals onto a screen. This projector requires only a minimal amount of space for installation and can produce a large projected image from even a short distance. Moreover, the projector has the following features to extend its potentiality for broad use. -
Page 4: Part Names
Part names Part names Projector HOT! (1) Speakers (x 4) (38) (2) Focus ring (19) (20) (3) Zoom ring (19) (11) (4) Lamp cover (63) The lamp unit is inside. (15) (5) Lens shift cover (19) HOT! (6) Horizontal lens shift dial (19) (12) (7) Vertical lens shift dial (19) (14) -
Page 5: Control Panel
Part names Control panel (1) STANDBY/ON button (16) (2) MENU button (25) It consists of four cursor buttons. (3) INPUT button (17) (4) POWER indicator (16, 69) (5) TEMP indicator (69) (6) LAMP indicator (69) Rear panel (1) Shutdown switch (71) (2) Security slot (9) (3) Security bar (9) (4) AC IN (AC inlet) (12) -
Page 6: Remote Control
Part names Remote control LASER INDICATOR (1) Laser pointer (13) STANDBY/ON VIDEO (14) It is a beam outlet. MY SOURCE/ DOC.CAMERA (2) LASER INDICATOR (13) SEARCH (3) LASER button (13) (17) (4) STANDBY/ON button (16) BLANK LASER (5) VOLUME+/- buttons (17) (25) (6) MUTE button (17) (7) VIDEO button (18) -
Page 7: Setting Up
Setting up Setting up Install the projector according to the environment and manner the projector will be used in. WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. -
Page 8: Arrangement
Setting up Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1400×1050 (a) Screen size (diagonal) (b) Projection distance (±10%) (c) Screen height (±10%), when the vertical lens shift (19) is set full upward. On a horizontal surface (c) up... -
Page 9: Adjusting The Projector's Elevator
RGB1 RGB2 M1-D Setting up VIDEO Adjusting the projector's elevator When the place to put the projector is slightly uneven to the left or right, use the REMOTE CONTROL elevator feet to place the projector horizontally. AUDIO S-VIDEO (3.5Φ) CONTROL Using the feet can also tilt the projector in order to project at AUDIO IN 3 AUDIO IN 4... -
Page 10: Connecting Your Devices
Setting up Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them. - Page 11 Setting up Connecting your devices (continued) NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution. - Be sure to consult to the administrator of the network.
-
Page 12: Connecting Power Supply
Setting up Connecting power supply Connect the connector of the power cord to the AC IN (AC inlet) of the projector. Firmly plug the power cord's plug into the outlet. AC IN Connector of the power cord to the outlet WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock. -
Page 13: Remote Control
Align and insert the two AA batteries (HITACHI MAXELL, Part No.LR6 or R6P) according to their plus and minus terminals as indicated in the remote control. Replace the battery cover in the direction of the arrow and snap it back into place. -
Page 14: About The Remote Control Signal
Remote control About the remote control signal The remote control works with the projector’s remote sensors. This projector has three remote sensors on the front, on the top, and on the back. The sensors can be respectively turned active or inactive using the “REMOTE RECEIV.”... -
Page 15: Using As A Wired Remote Control
AC IN Remote control Using as a wired remote control The accessory remote control works as a wired remote control, RGB1 HDMI when the wired control port at the bottom of the remote control VIDEO AUDIO IN1 RGB2 connects with the REMOTE CONTROL port on the back of the AUDIO IN2 projector via an audio cable with 3.5 diameter stereo mini plugs. -
Page 16: Power On/Off
Power on/off Contents Power on/off STANDBY/ON button POWER indicator Turning on the power LASER INDICATOR STANDBY/ON VIDEO MY SOURCE/ DOC.CAMERA Make sure that the power cord is firmly and SEARCH BLANK LASER correctly connected to the projector and the outlet. ASPECT Remove the lens cover, and set the power switch PUSH... -
Page 17: Operating
BLANK LASER Operating LASER INDICATOR STANDBY/ON VIDEO Operating MY SOURCE/ ASPECT DOC.CAMERA Adjusting the volume SEARCH ENTER PUSH PAGE UP PAGE DOWN Use the VOLUME + / VOLUME - buttons to adjust the BLANK LASER MENU RESET volume. POSITION AUTO A dialog will appear on the screen to aid you in adjusting the MY BUTTON VOLUME... -
Page 18: Searching An Input Signal
Operating Selecting an input signal (continued) LASER Press the VIDEO button on the remote control to select an INDICATOR STANDBY/ON VIDEO input for video signal. MY SOURCE/ Each time you press the button, the projector switches its DOC.CAMERA video input port as below. SEARCH COMPONENT (Y, C ) ... -
Page 19: Adjusting The Zoom And Focus
Operating Adjusting the zoom and focus Focus ring Zoom ring Use the zoom ring to adjust the screen size. Use the focus ring to focus the picture. Adjusting the lens shift Use the vertical lens shift dial to shift the picture upward or downward. Lens shift cover LASER INDICATOR... -
Page 20: Adjusting The Position
BLANK LASER Operating Adjusting the position ASPECT ENTER PUSH Press the POSITION button on the remote control when no LASER PAGE UP PAGE DOWN menu is indicated. INDICATOR STANDBY/ON VIDEO The “POSITION” indication will appear on the screen. MENU RESET MY SOURCE/ DOC.CAMERA Use the ▲/▼/◄/►... -
Page 21: Using The Magnify Feature
Operating ASPECT Using the magnify feature ENTER PUSH PAGE UP PAGE DOWN Press the ON button of MAGNIFY on the remote control. MENU RESET The “MAGNIFY” indication will appear on the screen and POSITION AUTO the projector will go into the MAGNIFY mode. In the Magnify MAGNIFY MY BUTTON VOLUME... -
Page 22: Temporarily Blanking The Screen
Operating Temporarily blanking the screen LASER INDICATOR STANDBY/ON VIDEO Press the BLANK button on the remote control. MY SOURCE/ DOC.CAMERA The blank screen will be displayed instead of the screen of SEARCH input signal. Please refer to the BLANK item in SCREEN menu (39). -
Page 23: Using The Menu Function
Operating LASER INDICATOR Using the menu function STANDBY/ON VIDEO MY SOURCE/ This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, DOC.CAMERA SEARCH AUDIO, SCREEN, OPTION, NETWORK, C.C. and EASY MENU. The EASY MENU consists of functions often used, and the other menus are classified into BLANK LASER each purpose and brought together as the Advanced Menu. - Page 24 Operating Using the menu function (continued) In the Advanced MENU Use the ▲/▼ cursor buttons to select a menu. If you want to change it to the EASY MENU, select the EASY MENU. Then press the ► cursor button on the projector or remote control, or the ENTER button on the remote control to select an item.
-
Page 25: Easy Menu
EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control. Then perform it according to the following table. Item Description Using the ◄/►... -
Page 26: (Easy Menu Continued
EASY MENU EASY MENU (continued) Item Description Using the ◄/► buttons adjusts the brightness. BRIGHTNESS See the BRIGHTNESS item in PICTURE menu (27). Using the ◄/► buttons adjusts the contrast. CONTRAST See the CONTRAST item in PICTURE menu (27). Using the ◄/► buttons adjusts the strength of whole color. COLOR See the COLOR item in PICTURE menu (28). -
Page 27: Picture Menu
PICTURE menu PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or the ENTER button on the remote control to execute the item. - Page 28 PICTURE menu PICTURE menu (continued) Item Description Using the ▲/▼ buttons switches the color temperature mode. #1 HIGH#1 CUSTOM#2 MID#2 CUSTOM#3 LOW #3 CUSTOM #6 CUSTOM #6 Hi-BRIGHT-3 #4 Hi-BRIGHT-1 #5 CUSTOM #5 Hi-BRIGHT-2 #4 CUSTOM To adjust CUSTOM Selecting a mode whose name includes CUSTOM and then pressing the ►...
- Page 29 PICTURE menu PICTURE menu (continued) Item Description Using the ▲/▼ cursor buttons changes the active iris control mode. PRESENTATION ó THEATER ó TURN OFF Feature The active iris displays the best presentation PRESENTATION ACTIVE IRIS image for both bright and dark scenes. The active iris displays the best theater image for THEATER both bright and dark scenes.
-
Page 30: Image Menu
IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. - Page 31 IMAGE menu IMAGE menu (continued) Item Description Using the ▲/▼ buttons adjusts the horizontal phase to eliminate flicker. Right ó Left H PHASE • This item can be selected only for an RGB signal or a component video signal. (except 480i@60, 576i@50, SCART RGB input. ) Using the ▲/▼...
-
Page 32: Input Menu
INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. - Page 33 INPUT menu INPUT menu (continued) Item Description Using the ▲/▼ buttons switches the function of the COMPONENT (Y, C ) port. COMPONENT ó SCART RGB When the SCART RGB is selected, the COMPONENT (Y, C ) and VIDEO ports will function as a SCART RGB port. A SCART adapter or SCART cable is required for a SCART RGB input to the projector.
- Page 34 INPUT menu INPUT menu (continued) Item Description Set the frame lock function on/off for each port. (1) Use the ▲/▼ buttons to select one of following ports. QUIT ó RGB1 ó RGB2 ó HDMI (2) Use the ◄/► buttons to turns the frame lock function on/off .
- Page 35 INPUT menu INPUT menu (continued) Item Description The resolution for the RGB1 and RGB2 input signals can be set on this projector. (1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed. (2) In the RESOLUTION menu select the resolution you wish to display using the ▲/▼...
-
Page 36: Setup Menu
SETUP menu SETUP menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or the ENTER button on the remote control to execute the item. - Page 37 SETUP menu SETUP menu (continued) Item Description Using the ▲/▼ buttons corrects the horizontal keystone distortion. Shrink the right of the image ó Shrink the left of the image • The adjustable range of this function will vary among inputs. For some input, this function may not work well.
-
Page 38: Audio Menu
AUDIO menu AUDIO menu From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. -
Page 39: Screen Menu
SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. - Page 40 SCREEN menu SCREEN menu (continued) Item Description Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó TURN OFF Feature Screen can be registered by the MyScreen item MyScreen...
- Page 41 SCREEN menu SCREEN menu (continued) Item Description This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.
- Page 42 SCREEN menu SCREEN menu (continued) Item Description Using the ▲/▼ buttons turns on/off the message function. TURN ON ó TURN OFF When the TURN ON is selected, the following message function works. “AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE”...
- Page 43 SCREEN menu SCREEN menu (continued) Item Description Using ▲/▼ buttons switches the mode for the template screen. The selected template pattern can be displayed when the MY BUTTON allocated TEMPLATE to the TEMPLATE function is pressed (46). DOT-LINE4 ó DOT-LINE3 ó DOT-LINE2 TEST PATTERN ó...
-
Page 44: Option Menu
OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item, except for the items LAMP TIME and FILTER TIME. - Page 45 OPTION menu OPTION menu (continued) Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically.
- Page 46 OPTION menu OPTION menu (continued) Item Description This item is to assign one of the following function to MY BUTTON 1 and 2 on the remote control (6). Choose 1 or 2 on the MY BUTTON menu using the ◄/► button first. Then using the ▲/▼...
- Page 47 OPTION menu OPTION menu (continued) Item Description AUTO ADJUST Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled. FINE ó FAST ó DISABLE FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the input signal.
- Page 48 OPTION menu OPTION menu (continued) Item Description KEY LOCK Using the ▲/▼ buttons turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked. TURN ON ó TURN OFF •...
- Page 49 OPTION menu OPTION menu (continued) Item Description This projector is equipped with security functions. User registration is required before using the security functions. Please contact your local dealer. 1. Using Security Features 1.1 Inputting the PASSWORD 1.1-1 Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ►...
-
Page 50: Using The Myscreen Password Function
OPTION menu OPTION menu (continued) Item Description 1.3 If you have forgotten your PASSWORD 1.3-1 Follow the procedure in 1.1-1 to display the ENTER PASSWORD BOX. 1.3-2 While the ENTER PASSWORD BOX is displayed, press and hold the RESET button on the remote control for about 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ►... -
Page 51: Using The Pin Lock Function
OPTION menu OPTION menu (continued) Item Description 2.2-4 Move the cursor to the right side of the PASSWORD AGAIN BOX and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. Pressing the ENTER button on the remote control or INPUT button on the projector will return to MyScreen PASS WORD on/off menu. - Page 52 OPTION menu OPTION menu (continued) Item Description 3.1-3 Input a 4 part PIN Code using the ▲/▼/◄/►, RGB and INPUT buttons. The PIN CODE AGAIN BOX will appear. Reenter the same PIN Code. This will complete the PIN Code registration. •...
-
Page 53: Using The Transition Detector Function
OPTION menu OPTION menu (continued) Item Description 4. Using the Transition Detector Function While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below. • Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed. -
Page 54: Using The My Text Password Function
OPTION menu OPTION menu (continued) Item Description 4.3 Setting the Transition Detector off 4.3-1 Follow the procedure in 4.1-1 to display the Transition Detector on/off menu. 4.3-2 Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the Transition Detector on/off menu. - Page 55 OPTION menu OPTION menu (continued) Item Description 5.2 Displaying the MY TEXT (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY menu and press the ► button to display the MY TEXT DISPLAY on/off menu. (2) Use the ▲/▼...
- Page 56 OPTION menu OPTION menu (continued) Item Description 5.3-3 Turning the MY TEXT PASSWORD off (1) Follow the procedure in 5.3-1 to display the MY TEXT PASSWORD on/off menu. (2) Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered ENTER PASSWORD BOX PASSWORD and the screen will return to the (large)
-
Page 57: Network Menu
NETWORK menu NETWORK menu Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions. - Page 58 NETWORK menu NETWORK menu (continued) Item Description Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF. ADDRESS • The IP ADDRESS is the number that identifies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.
- Page 59 NETWORK menu NETWORK menu (continued) Item Description (1) Use the▲/▼ buttons on the NETWORK menu to select the PROJECTOR NAME menu and press the ► button. The PROJECTOR NAME dialog will be displayed. (2) The current PROJECTOR NAME will be displayed on the first 3 lines. If not yet written, the lines will be blank.
- Page 60 NETWORK menu NETWORK menu (continued) Item Description Selecting this item displays the MY IMAGE menu. The application software “PJImage” is required to store image(s) into the projector. Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE (...
- Page 61 NETWORK menu NETWORK menu (continued) Item Description Selecting this item displays the NETWORK -INFORMATION- dialog for confirming the network settings. INFORMATION • Only the first 16 characters of the projector neme are displayed. • Nothing (blank) is shown in the “PROJECTOR NAME” field until you setup the item (59).
-
Page 62: C.c. (Closed Caption) Menu
C .C . (Closed Caption) menu C.C. (Closed Caption) menu The closed caption setting can be changed through C.C. menu in the advance menu. Please select the item that you will change using ▲/▼ cursor buttons. • The C.C. (Closed Caption) is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. -
Page 63: Maintenance
Maintenance Maintenance Lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended. -
Page 64: Lamp Warning
Maintenance Lamp (continued) Lamp warning HIGH TEMPERATURE HIGH PRESSURE HIGH VOLTAGE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. -
Page 65: Air Filter
Maintenance Air filter Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. The air filter has two kinds of filters inside. Replace the filters when they are damaged or too soiled. -
Page 66: Internal Clock Battery
Then the battery will come up. Remove the battery. Replace the battery with a new HITACHI MAXELLL, Part No. CR2032 or CR2032H. Slide the battery in under the plastic claw, and push it into the holder until it clicks. -
Page 67: Other Care
Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality. -
Page 68: Troubleshooting
Troubleshooting Troubleshooting Related messages When the unit's power is on, messages such as those shown below may be displayed. When any such message is displayed on the screen, please follow the instructions described below. If the same message is displayed after the remedy, or if a message other than the following appears, please contact your dealer or service company. -
Page 69: Regarding The Indicator Lamps
Troubleshooting Regarding the indicator lamps Lighting and flashing of the POWER indicator, the LAMP indicator, and the TEMP indicator have the meanings as described in the table below. Please follow the instructions within the table. If the same indication is displayed after the remedy, or if an indication other than the following is displayed, please contact your dealer or service company. - Page 70 Troubleshooting Regarding the indicator lamps (continued) POWER TEMP LAMP Description indicator indicator indicator The cooling fan is not operating. Please turn the power off, and allow the projector to Blinking cool down at least 20 minutes. After the projector has Blinking Turned sufficiently cooled down, please make confirmation...
-
Page 71: Phenomena That May Be Easy To Be Mistaken For Machine Defects
Troubleshooting Phenomena that may be easy to be mistaken for machine defects WARNING ►Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet. - Page 72 Troubleshooting Phenomena that may be easily mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. Correctly connect the audio cables. The MUTE function is working. Restore the sound pressing the MUTE or VOLUME button on the remote control.
- Page 73 Troubleshooting Phenomena that may be easily mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The FREEZE function is working. Video screen display freezes. Press the FREEZE button to restore the screen to normal. Color settings are not correctly adjusted. 26, 28, Perform picture adjustments by changing the COLOR Colors have a...
-
Page 74: Eystone Warranty And After-Service
Warranty and after-service / Specifications Warranty and after-service If a problem occurs with the equipment, first refer to the “Troubleshooting” and run through the suggested checks. If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied. - Page 75 Specifications Specifications (continued) CONTROL CONTROL AUDIO AUDIO REMOTE AUDIO S-VIDEO AUDIO RGB2 AUDIO VIDEO HDMI RGB1 [unit: mm]...
