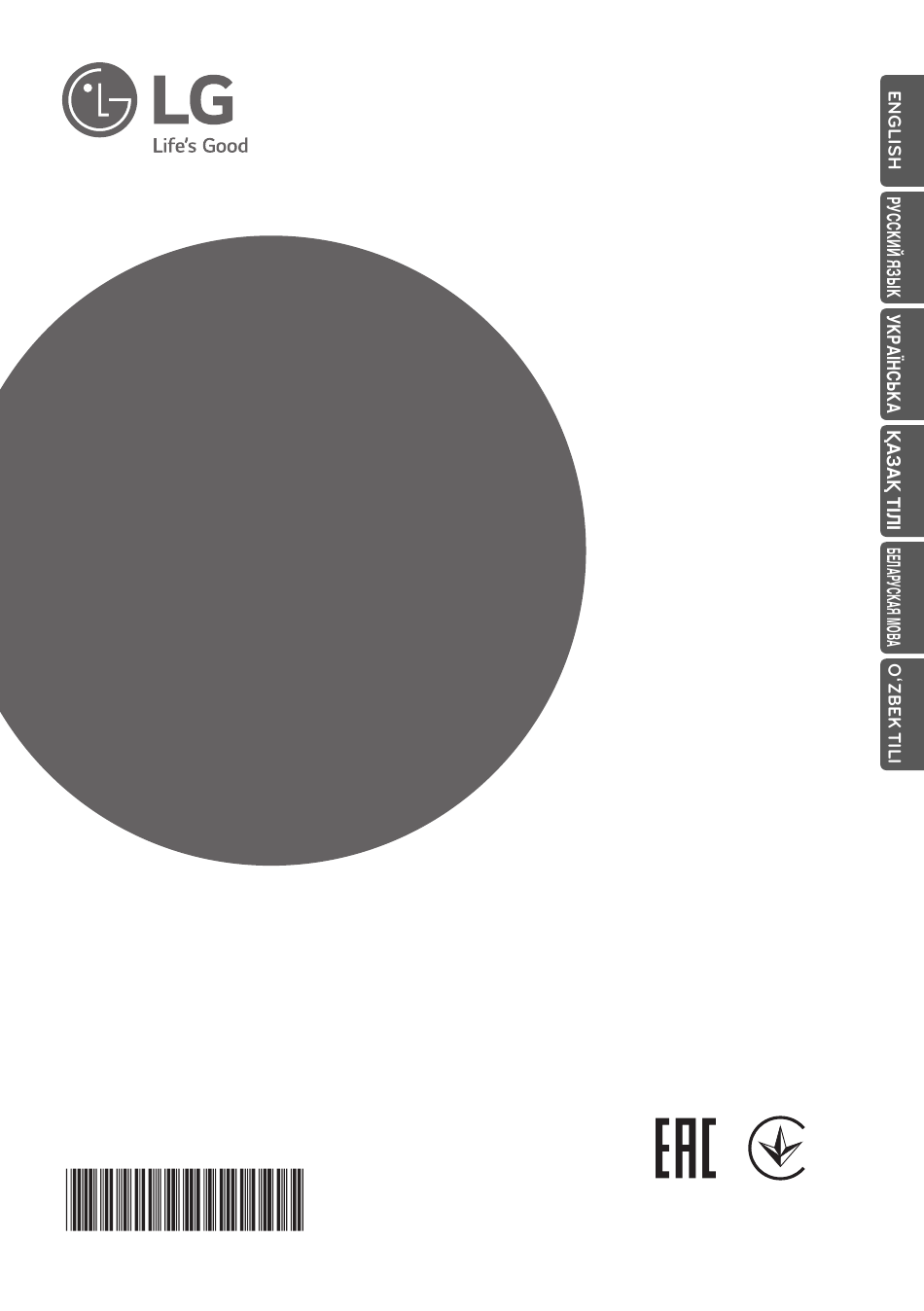

OWNER'S MANUAL
AIR
CONDITIONER
Please read this manual carefully before operating
your set and retain it for future reference.
FLOOR STANDING
MFL67724525
Rev.01_092723
Copyright © 2017 - 2023 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UP36WC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LG UP36WC

  • Page 1 OWNER’S MANUAL CONDITIONER Please read this manual carefully before operating your set and retain it for future reference. FLOOR STANDING www.lg.com MFL67724525 Rev.01_092723 Copyright © 2017 - 2023 LG Electronics Inc. All Rights Reserved.
  • Page 2: Tips For Saving Energy

    TIPS FOR SAVING ENERGY TIPS FOR SAVING ENERGY Here are some tips that will help you minimize the power consumption when you use the air conditioner. You can use your air conditioner more efficiently by referring to the instructions below: •...
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. WARNING It can result in serious injury or death when the directions are ignored. CAUTION It can result in minor injury or product damage when the directions are ignored.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Operation • Take care to ensure that power cable could not be pulled out or damaged during operation. There is risk of fire or electric shock. • Do not place anything on the power cable. There is risk of fire or electric shock. •...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS CAUTION Installation • Always check for gas (refrigerant) leakage after installation or repair of product. Low refrigerant levels may cause failure of product. • Install the drain hose to ensure that water is drained away properly. A bad connection may cause water leakage.
  • Page 6: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS TIPS FOR SAVING ENERGY IMPORTANT SAFETY INSTRUCTIONS BEFORE USE Preparing for operation Usage Cleaning and maintenance Service PRODUCT INTRODUCTION Name of parts Indoor unit controls and indicators Remote control preparation Wireless remote controller OPERATING INSTRUCTIONS <Type 1>...
  • Page 7: Before Use

    BEFORE USE BEFORE USE Preparing for operation • Contact an installation specialist for installation. • Use a dedicated circuit. Usage • Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for extended period of time. •...
  • Page 8: Product Introduction

    PRODUCT INTRODUCTION PRODUCT INTRODUCTION Name of parts Indoor unit Left/Right Airflow Control Louver Up/Down Airflow Control Louver Display Panel Air filter Air Inlet Control Box...
  • Page 9: Indoor Unit Controls And Indicators

    PRODUCT INTRODUCTION Indoor unit controls and indicators Heat Pump MODE 1. Timer 2. Defrosting operation lamp 3. Cooling operation lamp 4. Heating operation lamp 5. Room temp. / Set temp. display 6. Indoor fan speed lamp 7. Start/Stop button 8. Operation mode selection button 9.
  • Page 10: Cooling Only

    PRODUCT INTRODUCTION Cooling only MODE 1. Timer 2. Dehumidification operation lamp 3. Cooling operation lamp 4. Fan mode operation lamp 5. Room temp. / Set temp. display 6. Indoor fan speed lamp 7. Start/Stop button 8. Operation mode selection button 9.
  • Page 11: Remote Control Preparation

    PRODUCT INTRODUCTION Remote control preparation How to mount onto a wall Re-attach the cover. - Slide the cover into back position. Use the screws to secure the holder to the wall or attach the holder side of indoor unit. - Do not use rechargeable batteries such batteries are different from standard dry cells in shape, dimensions, and performance.
  • Page 12: Wireless Remote Controller

    PRODUCT INTRODUCTION Wireless remote controller <Type 1-A> Control Description panel You can turn the air conditioner on and off. You can easily adjust the desired air speed. You can adjust the desired temperature by pressing the buttons. You can select the desired operation mode by pressing the appropriate button.
  • Page 13 PRODUCT INTRODUCTION <Type 2> Heat Pump Control Description panel Remote controller operation lamp Power ON/OFF button : Operation will start when this button is pressed, and stop when the button is pressed again. Indoor fan speed button : To select the desired fan speed.
  • Page 14 PRODUCT INTRODUCTION Cooling only Control Description panel Remote control operation lamp Power ON/OFF button : Operation will start when this button is pressed, and stop when the button is pressed again. Indoor fan speed button : To select the desired fan speed.
  • Page 15: Operating Instructions

    OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS <Type 1-A, Type 1-B> Operation Mode Cooling, Auto, Dehumidification, Heating, Air blowing operations Turn on the air conditioner by pressing the button on the remote control. Ç Select the desired operation mode by pressing the button repeatedly. (The operation mode is changed in the order of cooling, auto, dehumidification, heating and air blowing.
  • Page 16: Auto Dry Function

    OPERATING INSTRUCTIONS Auto Dry Function Airflow Setting Auto dry function can be setted/released We can simply adjust the desired airflow by manipulating indoor unit button or direction. remote control. Up/Down Airflow Direction Control When pressing the button after setting the function, evaporator in indoor unit will Press button to turn on the indoor.
  • Page 17: Power Cooling, Power Heating Operation

    OPERATING INSTRUCTIONS Power cooling, power heating NOTE operation Check the indicator for A.M. and P.M. It can be set when cooling or heating is set as the operation mode. 9/─ Press the button. Setting the On Timer - When cooling is selected as the operation Press ON button to turn the timer on or mode, the power cooling operation will off.
  • Page 18: Defrost Mode

    OPERATING INSTRUCTIONS Defrost Mode Child Lock Operation Function É Press the and high simultaneously Heat Pump for 3 seconds. Or press the button on remote control. During defrost operation, will be indicated at display section of indoor. During child lock operation, - Whenever you press any button on display panel, it will immediately display "CL", which means display panel is...
  • Page 19: Auto Restart Operation

    OPERATING INSTRUCTIONS Auto Restart Operation When power is supplied again after unit operation has been stopped because of interruption of power supply due to outage or other causes, auto re-operation will be performed by remembering previous setting. - When power is supplied, outdoor unit operation will be started within 3 minutes.
  • Page 20: Type

    OPERATING INSTRUCTIONS <Type 2> Cooling Mode Airflow Setting Press button to turn on the indoor. We can simply adjust the desired airflow direction. Press button to select Cooling operation mode. Up/Down Airflow Direction Control - When canceling operating, press Press button to turn on the indoor.
  • Page 21: Dehumidification Mode

    OPERATING INSTRUCTIONS Dehumidification Mode Heat Pump Cooling only Press button to turn on the indoor unit. ┌ In rainy season or high humidity climate, it is Press button on remote controller to possible to operate simultaneously circulate indoor air. dehumidifier and cooling mode to remove ┌...
  • Page 22: Defrost Mode

    OPERATING INSTRUCTIONS Defrost Mode Child Lock Operation Function É Press the and high simultaneously Heat Pump for 3 seconds. Or press the button on remote control. During defrost operation, will be indicated at display section of indoor. During child lock operation, - Whenever you press any button on display panel, it will immediately display "CL", which means display panel is...
  • Page 23: Auto Dry Function

    OPERATING INSTRUCTIONS Auto Dry Function Auto Restart Operation Auto dry function can be setted/released When power is supplied again after unit by manipulating indoor unit button or operation has been stopped because of remote control. interruption of power supply due to outage or other causes, auto re-operation will be When pressing the button after setting...
  • Page 24: Maintenance And Service

    MAINTENANCE AND SERVICE MAINTENANCE AND SERVICE Indoor Unit Filter Cleaning Please clean it once in a week. Grille, Case and Remote Control Remove the Air filters. - Turn the system off before cleaning, To - Take hold of the tab and pull slightly clean, wipe with a soft, dry cloth.
  • Page 25: Helpful Information

    MAINTENANCE AND SERVICE When air conditioner is not going When the air conditioner is to be to be used for a long time. used again. Operate the air conditioner at the following Clean the air filter and install it in the settings for 2 to 3 hours.
  • Page 26: Troubleshooting Tips! Save Time And Money

    MAINTENANCE AND SERVICE Troubleshooting Tips! Save time and money! Check the following points before requesting repairs or service..If the malfunction persist, please contact your dealer. The air conditioner The room has a It seems that Air conditioner does does not operate. peculiar odor.
