Harman Kardon SB SB15/230 Service Manual

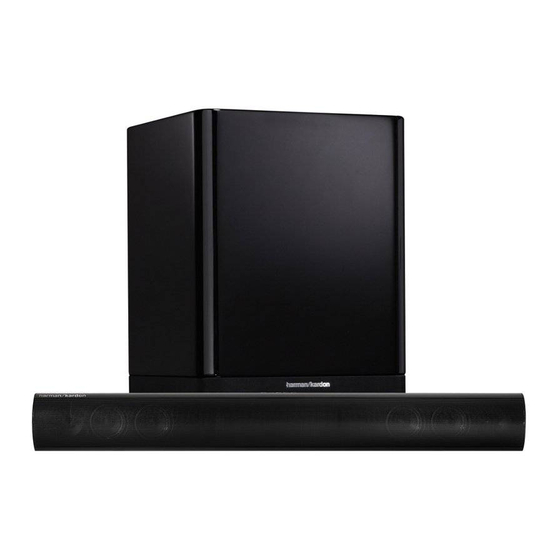

Soundbar with wireless subwoofer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

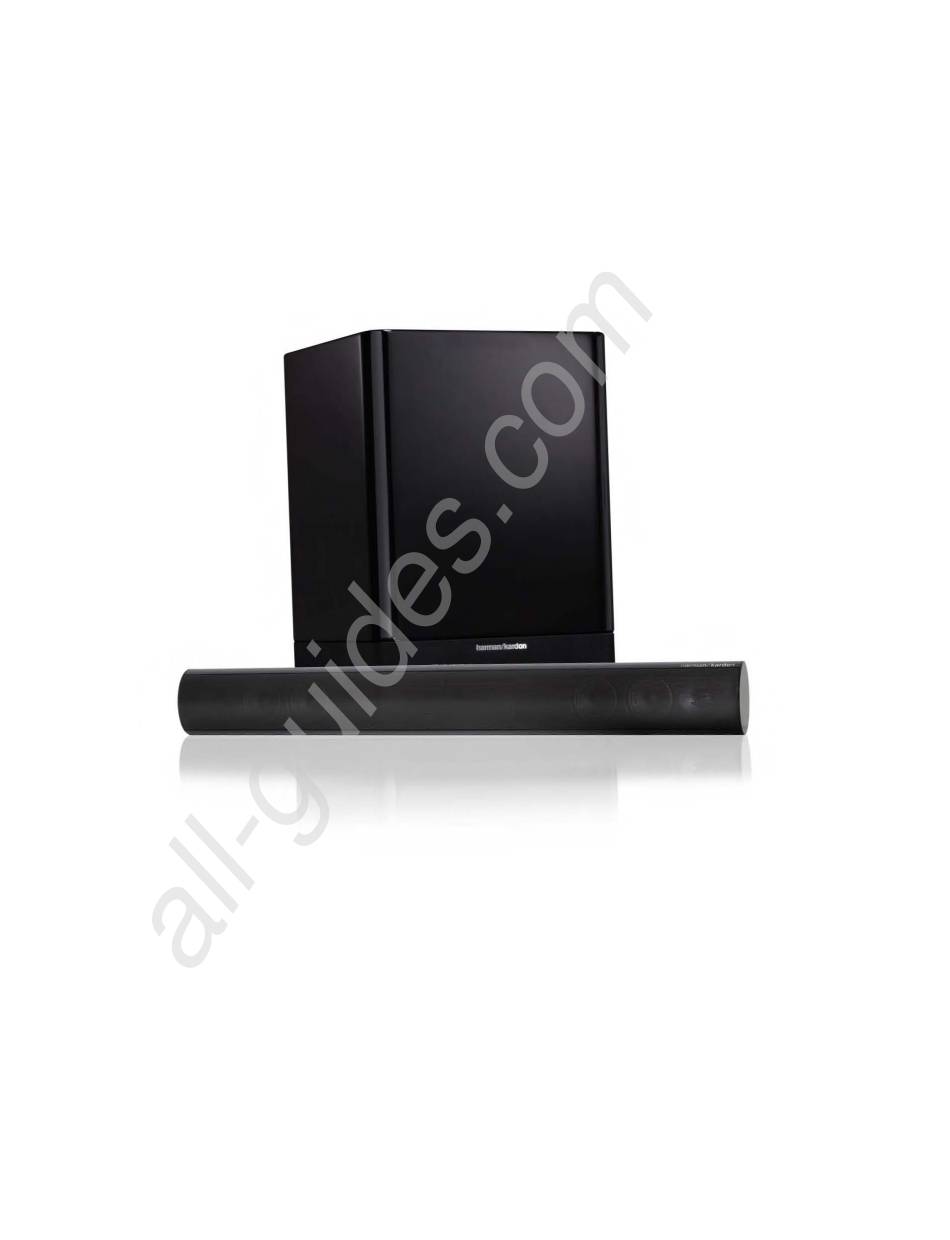

harman/kardon
harman/kardon
SB 15/230
Soundbar with wireless subwoofer
Released EU2010
All manuals and user guides at all-guides.com
CONTENTS
2
3
EXPLODED VIEW AND PARTS, CENTER 12
5
7
8
9
Harman Consumer Group, Inc.
8500 Balboa Boulevard
Northridge, California 91329
SB 15/230 Service Manual
Service Manual
Rev 0, 05/2010
11
13
14
16
20-30
Page 1 of 30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB SB15/230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman Kardon SB SB15/230

Summary of Contents for Harman Kardon SB SB15/230

  • Page 1: Table Of Contents

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com harman/kardon Service Manual SB 15/230 Soundbar with wireless subwoofer CONTENTS PACKAGE GUIDE AND PARTS, CENTER 10 ESD WARNING PACKAGE GUIDE AND PARTS, SUB INTRO AND CONTENTS EXPLODED VIEW AND PARTS, CENTER 12 CONTROLS AND CONNECTIONS 4 EXPLODED VIEW AND PARTS, SUB SUBWOOFER CONNECTIONS...

  • Page 2: Esd Warning

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip"...

  • Page 3: Description And Features

    Introduction One SB 15CNTR soundbar speaker Thank you for purchasing the Harman Kardon® SB 15/230 speaker system, with which you’re about to begin many years of listening enjoyment . The SB 15/230 has been custom-designed to provide the excitement and power of the cinema experience in your own living room .

  • Page 4: Soundbar Top-Panel Controls

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Soundbar Top-Panel Controls Soundbar Rear-Panel Controls and Connections Wireless Code Switch: Selects between four different channels for the wireless Surround Volume Source subwoofer signal . Power Mode Up/Down Selector Button Button...

  • Page 5: Subwoofer Rear-Panel Controls

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Subwoofer Rear-Panel Controls CROSSOVER Crossover Knob VOLUME Volume Knob PHASE Phase Switch POWER Wireless Fuse Code Switch Power Cord Power Switch AC Fuse: The SB 15SUB is factory-equipped with a T1AL/250V 1A – 250V AC fuse . If Crossover Knob: This knob adjusts the subwoofer’s crossover between 50Hz and 150Hz .The higher you set the Crossover knob, the higher in frequency the subwoofer the fuse ever blows:...

  • Page 6: Programming The Soundbar

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Programming the Soundbar to Respond to Your TV Remote You can program the soundbar so it will respond to your TV remote’s Power, Mute, Aim the TV remote at the front of the soundbar from about 300mm-900mm Volume Up, Volume Down and Source commands .

  • Page 7: Troubleshooting

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Troubleshooting If the soundbar does not turn on: The soundbar won’t learn your TV remote’s commands: • Check that the soundbar power supply’s AC cord is plugged into a working AC •...

  • Page 8: Specifications

    Features, specifications and appearance are subject to change without notice . Harman Kardon is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries . Designed to Entertain is a trademark of Harman International Industries, Incorporated .

  • Page 9: New On/Off Explanation

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com NEW SECTION FOR THE SB 15 OWNER’S MANUAL.  SB 15/230 How to Switch the system on:  Manually:  If the SB 15/230 is manually put into Standby on the ON/OFF Button on the SB 15 unit itself, it can only be  switched back ON by manually pressing the ON/OFF button again.  Auto Turn on:  The SB 15/230 automatically enters Standby‐mode after approx. 15 minutes if no audio signal is detected.  This can also be forced by learning (for example) the TV set’s remote control “Off” code into the SB 15/230  (See owner’s manual).    Due to Power saving regulations, the SB 15 does not “listen” to the Audio Inputs, unless it senses a remote  signal first, which can be any kind of remote signal (it does not have to be a learned remote code ‐ turning  ON the TV or sending any other infrared remote code will be enough). The remote signal will tell the SB  15/230 to start up automatically as soon as audio is detected on (first) the Digital or (second) the Analog  audio Input. If no signal is detected by the Inputs, the SB 15 will go back into total Standby again after  approx 15 minutes.  MATRIX OF ON/OFF FUNCTIONS.    Power OFF function SB 15 Status Way to Power On Comment Remote sense is OFF  ...

  • Page 10: Package Guide And Parts, Center

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 10 of 30...

  • Page 11: Package Guide And Parts, Sub

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 11 of 30...
  • Page 12 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com 日 期 版 本 頁 次 客 戶：JBL 作 業 指 示 機 種：SB 15CNTR/230 2009/12/25 螺絲均要點膠 Crossover 013-7600-05766-E Screw for woofer 352-AM04008C1334-E 315-ABS-05230-0BAE Top panel 247-030-05099-0BAE Rear Enclosure 305-ABS-05037-0BAE Side Cap 214-000-05409-0BAE...

  • Page 13: Exploded View And Parts, Sub

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com 客 戶: 日期 版本 頁次 作 業 指 示 機 種: 2009/12/03 序號 品名 料號 數量 Screw for 352-AM04020D210-E amplifier Amplifier 010-7610-05246-E 務 Wood 241-100-00613-2BCE Cabinet 316-AL-00553-E)背後點3188膠水 注: 1.銘板( Logo 316-AG-00557-E 再貼到鐵網卞槽中...

  • Page 14: Electrical Parts List

    Part Description 352-AM04020D210-E Screw for Subwoofer 010-7610-05246-E Amplifier SB15/230 SUB 241-100-00613-2BCE Wood Cabinet 316-AG-00557-E Harman Kardon Logo for the Sub top board 316-AL-00553-E Logo for grille 25PF12DZB-FW01-E 10" Subwoofer 352-FM04020D605-E Screw for woofer to wood cabinet 320-RUB-00057-0BAE Rubber pad for subwoofer cabinet...
  • Page 15 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com 431-000-07021-E EPE for Soundbar carton end 430-002-05391-E Pearl-cotton bag for Soundbar 431-000-07026-E EPE for Soundbar mid-carton 402-000-06333-E Gift Box for Soundbar Cntr 406-000-06124-E Owner Manual 431-000-07022-E EPE Material for Subwoofer (top) 283-001-05105-0WAE Non-woven cloth bag 424-000-00185-E...

  • Page 16: Schematic Diagrams

    All manuals and user guides at all-guides.com harman/kardon SB 15/230 Service Manual 100n 12.1K A50k 12.1K 17.8k 100n mout 24.9K 100p 15.4k VR2B VR2A VR*2 VR*2 TL074CD TL074CD TL072CN 100n 82.5k 100n 82.5k 220k CON2 SGND 100n SGND SGND Header 5 SGND TL072CN SGND...
  • Page 17 All manuals and user guides at all-guides.com harman/kardon SB 15/230 Service Manual CON1 Header 8 4.7R 1000u/10V CON2 link1 100n RX M1087 100n 1000u/10V RFVcc rest 470u/16V nRESET RFGND 100n 100n Header 3 SCD14 4.7R STM809 /RST PB1(CS0) MSIO0 MOSI0 SCK0 PF0(ID_DATA) PF1(ID_CLK)
  • Page 18 All manuals and user guides at all-guides.com harman/kardon SB 15/230 Service Manual VDDA2 VSSA2 VDDP VSSP CON1 CON2 VDDP VSSP VSSA2 +15v 47u/100v 100n +3.6V -15v 470p 470p 30.1K Header 5 100n 100n Header 6 100n SGND 100n 100n MODE 1N4148 5.6k SUBOUT+...
  • Page 19 All manuals and user guides at all-guides.com harman/kardon SB 15/230 Service Manual 15uf/400V 300k 300k 1N4007 HI VOL UF302 68 ohm +12VA +12VB 1N4007 1.1meg 470PF/1k 0.1u 100u/25V 1N4007 UF1010 1.1meg +3.6VA +3.6V Inductor ICSP 22uH 0.1u 1N4007 UF302 0.1u SF16 0.1u/25V 470u/16V...

  • Page 20: Pcb Drawings

    harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 20 of 30...
  • Page 21 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 21 of 30...
  • Page 22 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 22 of 30...
  • Page 23 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 23 of 30...
  • Page 24 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 24 of 30...
  • Page 25 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 25 of 30...
  • Page 26 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 26 of 30...
  • Page 27 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 27 of 30...
  • Page 28 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 28 of 30...
  • Page 29 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 29 of 30...
  • Page 30 harman/kardon SB 15/230 Service Manual All manuals and user guides at all-guides.com Page 30 of 30...
