harman/kardon
SB 30/230

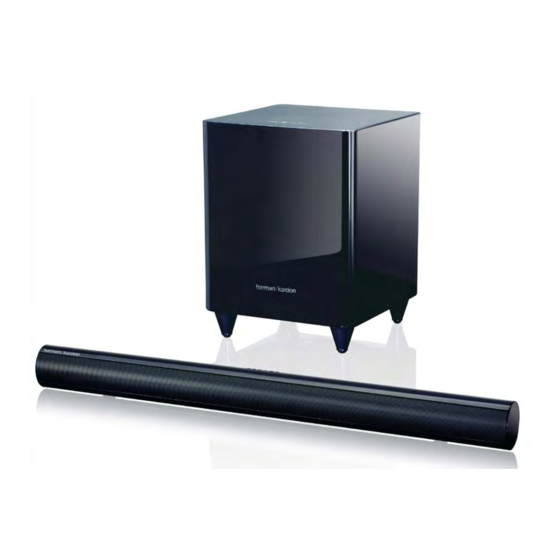

Active Soundbar with wireless subwoofer
OWNER'S MANUAL
PACKING AND PARTS, CENTER
EXPLODED VIEW AND PARTS, CENTER 18
PACKING AND PARTS, SUB
EXPLODED VIEW AND PARTS, SUB
PARTS LIST, CENTER
Released EU2012
CONTENTS
PARTS LIST, SUB
2-16
BLOCK DIAGRAM, SUB
17
BLOCK DIAGRAM, CENTER
CABLE DIAGRAM
19
SCHEMATIC DIAGRAMS, CENTER
20
SCHEMATIC DIAGRAMS, SUB
21
Harman Consumer Group, Inc.
8500 Balboa Boulevard
Northridge, California 91329
www.audiodna.sk
Service Manual
Rev 1, 2/2012
29
33
34
35
37
47
