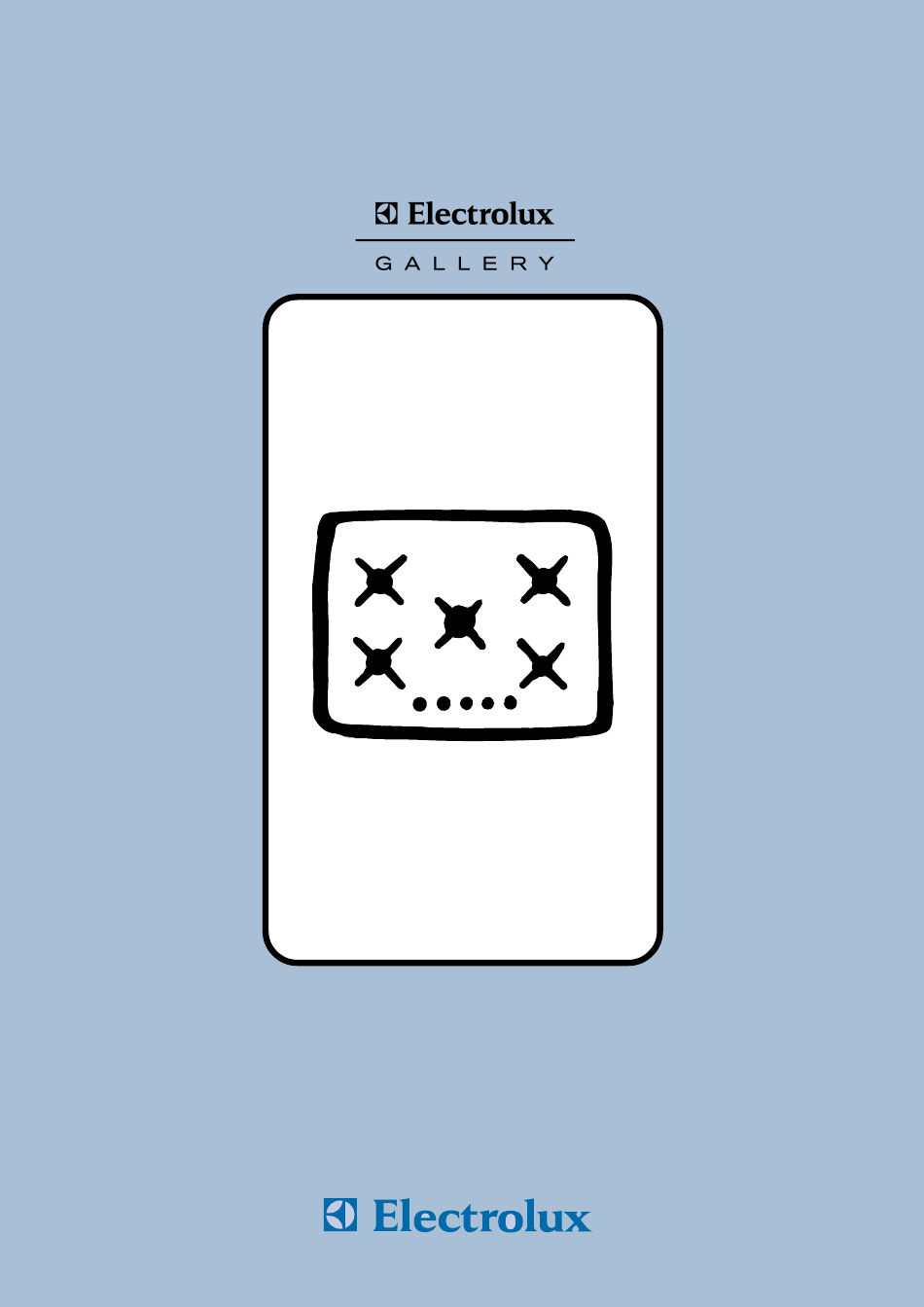

- Page 1 Gas Hobs INSTR INSTR UCTION BOOKLET UCTION BOOKLET INSTR UCTION BOOKLET UCTION BOOKLET INSTR INSTR UCTION BOOKLET Mod. EGG 76 35678-3001...
-
Page 2: Important Safety Information
Important Safety Information You MUST read hese warnings carefully before installing or using the hob. If you need assistance, contact our local Customer Care Department Installation Never use plastic or aluminium foil dishes on the hob. This hob must be installed by qualified personnel, according to the manufacturer’s instructions and to Perishable food, plastic items and areosols may be the relevant Australian Standards. -
Page 3: Table Of Contents
Contents For the Installer For the User Important Safety Information Instructions for the Installer Description of the Hob Engineers technical data Operation Important safety requirements Maintenance and Cleaning Installation The Hob Top Adaptation to different types of gas Something Not Working? Electrical connections Building In Description of the Hob... -
Page 4: Operation
Operation Hob Burners To light a burner: push in the relevant control knob and turn it anticlockwise to maximum position; upon ignition, keep the knob pushed down about 5 seconds. This will allow the "thermocouple" (Fig. 1 - letter C) to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted;... -
Page 5: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob from the electricity supply. The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool. -
Page 6: Instructions For The Installer
Instructions for the Installer Engineers technical data SUPPLY CONNECTIONS Gas: OVERAll dimensions RC 1/2 inch (1/2 inch male) Rear right hand corner Width: 740 mm. Depth: 520 mm. Electric: 230-240V ac 50Hz supply CUT OUT DIMENSIONS APPLIANCE GAS SUPPLY: Width:. 560 mm. -
Page 7: Installation
Installation Important This appliance must be installed by qualified personnel. The installer shall verify the satisfactory operation of the ignition system on all burners both individually and in combination. The manufacturer will not accept liability, should FO 0814 the above instructions or any of the other safety instructions incorporated in this book be ignored. -
Page 8: Adaptation To Different Types Of Gas
Electrical connections The appliance is designed to be connected to 230-240 V If connecting the appliance directly to the electric system, monophase electricity supply. it is necessary that you install a double pole switch The connection must be carried out in compliance with between the appliance and the electricity supply, with a the laws and regulations in force. -
Page 9: Building In
Building In ON/OFF SWITCH Building over a cupboard or drawer FLEX If the hob is to be installed above a cupboard or drawer OUTLET it will be necessary to fit a heat resistant board below the base of the hob on the underside of the work surface. - Page 10 State legislation. Such rights cannot be changed by the conditions in this warranty. Subject to the conditions below, this appliance is warranted by Electrolux Home Products Pty. Ltd. A.B.N. 51 004 762 341, (the “Company”), to be free from defects in materials and workmanship for a period of 24 months following the date of purchase (the “Warranty Period”).
- Page 11 ELECTROLUX APPLIANCE WARRANTY – NEW ZEALAND This appliance is warranted by Electrolux Home Products (NZ) Ltd (“the Company”) from the date of purchase. The following terms and conditions apply: 1 The Company or its Authorised Service Centre will pay the cost of repairing or replacing all parts of the appliance which the Company or its Authorised Service Centre find defective for a period of 24 months following the date of purchase (the “Warranty Period”).
- Page 12 The Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
