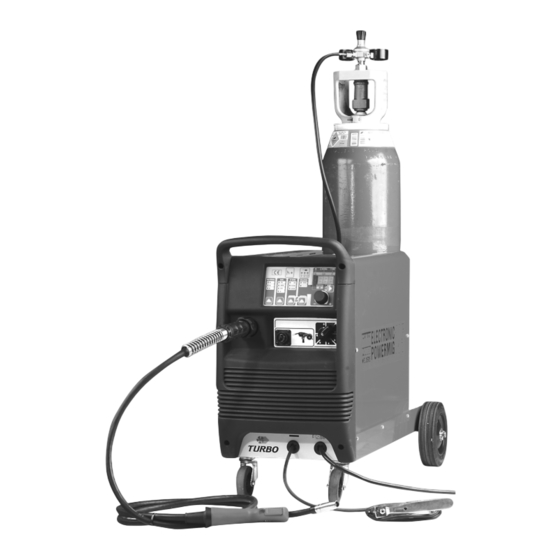

- Page 1 INSTRUCTIONS FOR ELECTRONIC POWERMIG ELECTROMIG 195.V2 MODEL: ELECTROMIG 195.V2 - 1 - 300903...
-
Page 2: Safety Instructions
It is particularly important to use an RCD together with portable products that are plugged into an electrical supply not protected by an RCCB. If in doubt consult a professional electrician. You may obtain a Residual Current Device by contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety. -
Page 3: Introduction And Specifications
2. INTRODUCTION & SPECIFICATIONS IMPORTANT : These instructions contain information required to prepare your machine for welding, together with a maintenance and a trouble shooting section. If you have no previous experience the instructions are not intended to show you how to become a welder. Should you have no experience, we recommend that you seek training from an expert source. -
Page 4: Clutch Adjustment
5. MAINTENANCE 5. SETTING UP THE WELDER CONNECTING THE GAS CYLINDER. Stand the gas cylinder on the base at the rear of the fig 3 welder and secure with chain supplied. The welder can be transported with small and medium sized bottles only. Do not transport the welder with a large bottle attached. - Page 5 5. MAINTENANCE 6. CONTROL PANEL SELECT WELDING MATERIAL. Select from: Fe (Ferrous metals), Ss (Stainless steel), Al (Aluminium). SELECT GAS. Select from : CO (Carbon dioxide), ArCO (Argon / Carb.dioxide), ArO (Argon / Oxygen), Ar (Argon) OVERLOAD INDICATOR. L.E.D lights up to indicate power has been cut off due to overheating. Readout shows message ‘ALL thr’.
-
Page 6: Maintenance
Teflon guide hose. Alternatively a spool gun for welding aluminium is available as an optional extra. A small reel of aluminium wire is directly mounted onto the torch itself which eliminates the need for a long liner. Contact your local Sealey dealer for information. -
Page 7: 11. Troubleshooting
Low Voltage Directive (S.I. 1994/3260) 73/23/EEC 17th May 2002 Signed by Mark Sweetman EMC Directive (S.I. 1992/2372 & Amendments). 89/336/EEC For Jack Sealey Ltd. Sole importer into the UK of Sealey as Power Welders ELECTROMIG 195.V2 - 1 - 300903...
