Shenzhen ATESS Power Technology Co.,Ltd
GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, Shuitian Community,
Shiyan Street, Baoan District, Shenzhen
T +86 755 2998 8492
F +86 755 2998 5623
www.atesspower.com
Revised date:2023-09-19

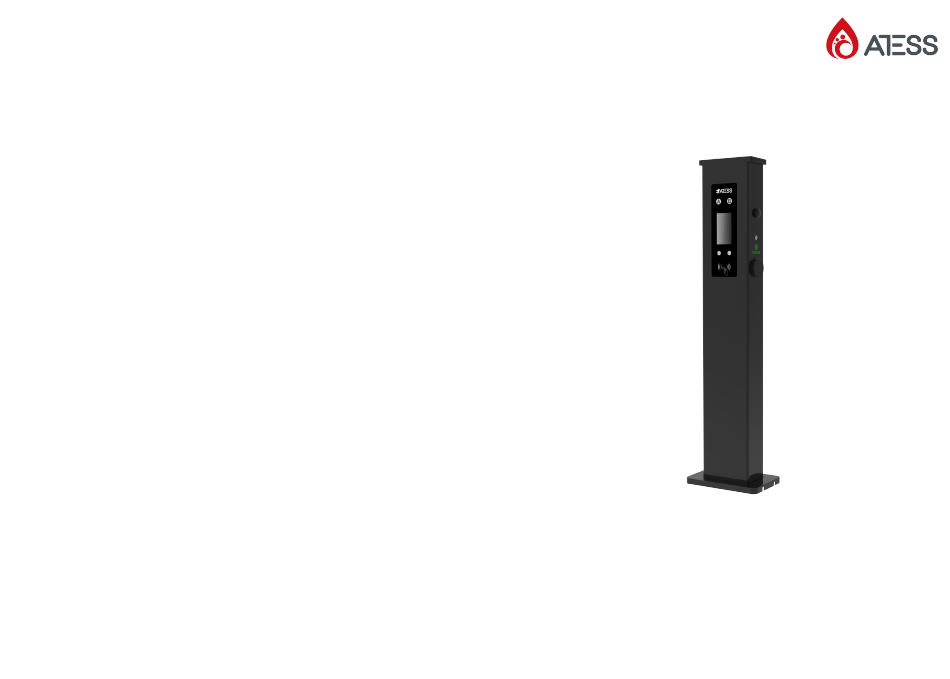

NOVE ATESS EVA-11/22D-SE/PE
3-phase AC charger Quick installation guide
Advertisement
Table of Contents
Related Manuals for ATESS NOVO EVA-11D-SE
Summary of Contents for ATESS NOVO EVA-11D-SE
- Page 1 Shenzhen ATESS Power Technology Co.,Ltd NOVE ATESS EVA-11/22D-SE/PE GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street, Baoan District, Shenzhen 3-phase AC charger Quick installation guide T +86 755 2998 8492 F +86 755 2998 5623 www.atesspower.com Revised date:2023-09-19...
-
Page 2: Table Of Contents
II. Packaging list ·································································· All rights reserved. III. Installation and wiring ······················································· ATESS has the final right to interpret this user manual. The information in this manual is subject to change without notice. IV. Parameter setting ···························································· V. Operation instruction and LCD description ·····························... -
Page 3: Product Description
Product description Packaging list Name Remark Charger User manual Quality certificate Cable hook For cabled version User card M5*12 stainless 4 Fixed the bottom bracket steels hex-head 4-10 6 of 10 Pugs for cabled version, self-drilling screws cable hook fixing M8*80 Plastic For the bottom bracket expansion plugs... -
Page 4: Installation And Wiring
III. Installation and wiring 3.1.3 Fix the chargepoint onto the holes with expansion bolts. The input cables shall go into the pole from the bottom middle area and come out of it from the area below the cable hooker. 3.1 Installation on the ground 3.1.1 Open the packaging, you’ll see a charge point, a user manual, a pedestal and a bag of mounting accessories. -
Page 5: Parameter Setting
2. Click Change adapter settings. 3. Right-click on Local Area Connection and click on Properties. The position of PE terminal Parameter setting After the installation and wiring is done, connect the Charger to a computer and configure parameters via the web browser of the computer, then the Charger can be ready for use. 4. -
Page 6: Explanation Of Parameters
(2) Charger ID, this is the unique identification of the Charger. If the charger is to be connected to ATESS back-office server, this ID must be set as the serial number on the nameplate of the Charger. Otherwise the Charger cannot be registered on the server. - Page 7 (5) MAC address. This is the MAC address used for LAN cable connection. If the charger The domain name of ATESS server is “ws://ess-charge.atesspower.com:80/ocpp/ws”; is connected to ATESS back-office server via LAN cable and the router has MAC access IP address is “ws://ess-charge.atesspower.com:80/ocpp/ws”.
- Page 8 (11) Login password is used for web page login parameter settings,the default password (15) DC residual current sampling value calibration. Enter 0 and press “Set and Reboot ” is 1234578. to calibrate the DC RCD ring. Display real-time detection value of DC residual current.keep the default RCD level.
- Page 9 (22)Set the load balancing or Solar function, sampling instrument type and address. (18) Relieve the power grid pressure, authorized charging, after the set time to start. Fig.18 (19) Open the function, the user's home meter provides dry contact signal, identify the off- peak period, reduce the charge of electricity Fig.22 (23) Set the display language of the charger LCD.
- Page 10 (27) PIN of the charger, used to verify the PIN of user card. To use a RFID card with the (32) The communication interval between the charger and server,keep the default value. charger, their PIN must be consistent. If the user card has a different PIN, then it cannot be used on this charger.
-
Page 11: Operation Instruction And Lcd Description
A or B.Reference part 5.2 interface introduction. If you are using the ATESS APP, Charging can be started/stopped by pressing the ON/OFF button on the APP. Plug & Charge mode operation process flow... -
Page 12: Firmware Update
5.2 LCD interface introduction Press A and B buttons 10s at the same time to enter the debugging interface, you can view Interface of stand by status. IP/serial number and other information. Press either Charging mode is displayed in the lower right button AB to exit the screen. - Page 13 3. Open the txt file, write “state=1” in it and save the file. 4. Turn off the charger and insert the SD card into the charger, the update will start automatically. The indicator will first flash red and then flash green with a long beep as the end of the update(sometimes the beep sound may not be clearly heard).
-
Page 14: Troubleshooting
VII. Troubleshooting 3. Click the “browse” button and select the firmware file. Click “Upload”, then update will start automatically. 7.1 Troubleshoot by LED behavior or LCD display If fault occurs, users can check the fault information on the LCD or by the number of blinks of the LED indicator light. - Page 15 7.2 Firmware update fails b. Please check and input the correct WiFi SSID and password to retry; 7.2.1 Firmware update failure with SD card: a. Check if the capacity is over 4G bytes,please use a SD card of less than 4GB to retry; b.
- Page 16 e. Check if the charger is still connected to the computer. Please unplug it from computer otherwise the charger won’t connect to the back-office server. f. Check if server address is correct in the“Server URL” field. The correct setting is : ws://ess-charge.atesspower.com:80/ocpp/ws 1.
- Page 17 (3). Right-click on Local Area Connection and click on Properties. c. Check what web browser is being used, it’s suggested to use Firefox or IE, Chrome cannot be used to update firmware. d. Check if you have input the complete content, which is http://192.168.1.5:8080, in the address field, do not leave out the http:// or the“:8080”.
-
Page 18: Load Balancing
VIII. Load balancing 7.5 Charging issue If charging cannot start after the car is plugged in, Introduction The charge point can monitor the total power consumption of the household during a. Check if the red emergency stop button is pressed. charging. -
Page 19: Use Excess Solar Power To Charge Your Car
Use excess solar power to charge your car The charge point can work with grid-tied solar system, to detect and use the residual solar power to charge your car that otherwise would be fed back to grid. This can help increase the self-usage rate of the solar system and reduce electricity bill for the household. - Page 20 8.3 Parameter configuration for this function 8.2 If meter is used, please wire it as below (1) Connect the charge point to a laptop with a network cable, access the parameter setting page on the web browser of the laptop. (2) Scroll down to find the following parameters: Solar Mode, FAST, ECO or ECO+.
-
Page 21: Specification
Specification Annex1 11.1. APP Introduction NOVO EVA-11/22D-SE/PE Model 11.1.1 Description Dimension(mm) 420*270*1639(L*W*H) ATS Charge is an app for controlling charger. It can help you quickly and easily charge <28 Weight(kg) your vehicle with a charger. Display Casing Material Stainless steel& Engineering plastics& Tacrylic 11.1.2 Main Function Of ATS Charge Input (1) The APP can push the transfer information of the charger. - Page 22 11.2.2 Registration and login When the user first visits, the user registration is performed by the following steps: Click the desktop icon Login page Register. When the user has an account, you can directly enter the user name and password to log in.
- Page 23 11.2.5 Start and stop control of charger 11.2.7 Charging record Press “Record” to view past charge records, including changer ID, gun number, time, energy, cost and so on. Press “Charge”to turn on/off. Note: when charger status is Preparing , you can press”Charge” to start charging. 11.2.8 Preset charging scheme 11.2.6 Cable locked For chargers in the socket version, the connector can be unlocked via this button after...
- Page 24 There are three Pre-set charging schemes: Duration, Cost and Energy. Users can choose one of these options.The scheme can be canceled before the start charging time is reached. For example, in the "Cost" mode, you can set the amount and stop charging if the amount reaches the set value.
- Page 25 ●Charger Settings Method of Control : Three modes control the charging of the charger,APP,RFID and plug and charge. Currency: Select the currency in which the charge is settled and the charge report displays the bill with currency. Charging rates: The charge tariff is used to calculate the cost of electricity consumed. The charge report shows the total cost.
- Page 26 ●User Authrization To manage authorized users, you can view the authorization time, account name, and delete user in the authorization management interface. Users can authorize other users to use charging stubs through authorization management. Enter the user name to authorize other users to use the chargepoint. If the person you want to authorize does not have an account, you can register for the new user by registering the new user in the upper right corner.
-
Page 27: Annex2
Modify the mailbox: Follow the steps to verify the new mailbox by verification code. 11.2 Contact Shenzhen ATESS Power Technology Co.,Ltd Address: GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street, Baoan District, Shenzhen Website:www.atesspower.com Service line:+8675529988492 E-mail：service@atesspower.com...
