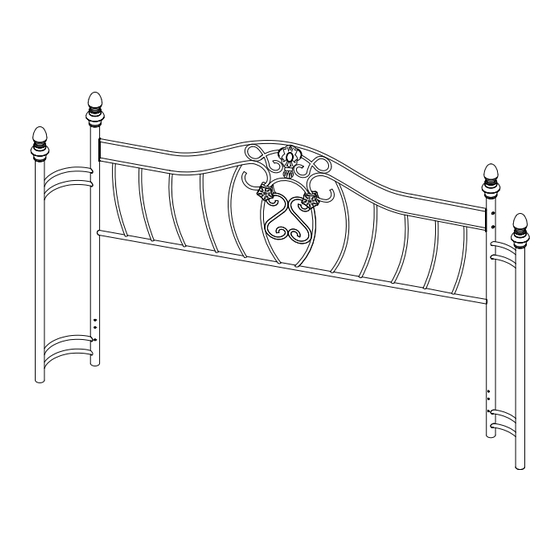

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 300171KE B1/B2 EASTERN KING SIZE BED PAGE 1 OF 5 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
300171KE B1/B2 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
300171KE B1/B2 ITEM: HARDWARE IDENTIFICATION LONG BOLT FLAT WASHER 16PCS 8PCS (Φ1/4"x2-1/4") (Φ23xΦ8.5x3.0) LOCK WASHER SHORT BOLT 8PCS 4PCS (Φ1/4") (Φ1/4"x3/4") ALLEN KEY SPRING WASHER 8PCS (Φ10.5xΦ6.5x1.5) (4mm) WRENCH FLAT WASHER 12PCS (Φ16.0xΦ6.5x1.5) (11.0mm) NOTE: Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item. - Page 4 300171KE B1/B2 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 PAGE 4 OF 5 COASTERFURNITURE.COM...
- Page 5 300171KE B1/B2 ITEM: Product size:2315Wx240Dx965/1346H Product size:91-1/4"Wx9-1/2"Dx38"/53"H PAGE 5 OF 5 COASTERFURNITURE.COM...
