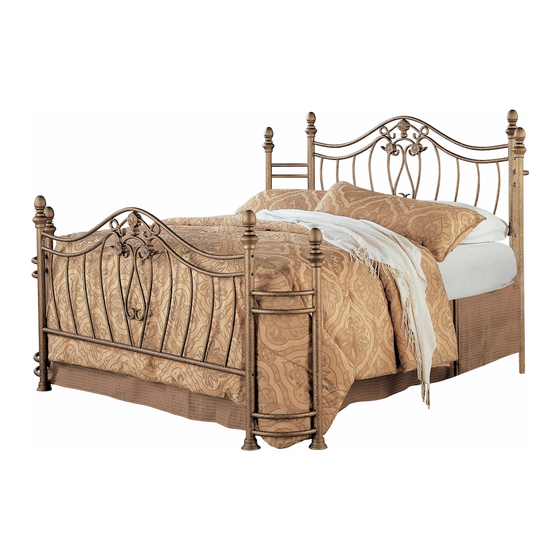

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 300171QB1/B2 Metal Queen Size Bed PAGE 1 OF 5 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
300171QB1/B2 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
300171QB1/B2 ITEM: HARDWARE IDENTIFICATION LONG BOLT 16PCS (Φ1/4"x2-1/4") SHORT BOLT 8PCS (Φ1/4"x3/4") FLAT WASHER FLAT WASHER 8PCS (Φ16.0xΦ6.5x1.5) (Φ16.0xΦ6.5x1.5) ALLEN KEY (4mm) NOTE: Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item. - Page 4 300171QB1/B2 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 PAGE 4 OF 5 COASTERFURNITURE.COM...
- Page 5 300171QB1/B2 ITEM: Product size:1956WX1333DX953H(mm) Product size:77"WX52-1/2"DX37-1/2"H PAGE 5 OF 5 COASTERFURNITURE.COM...
