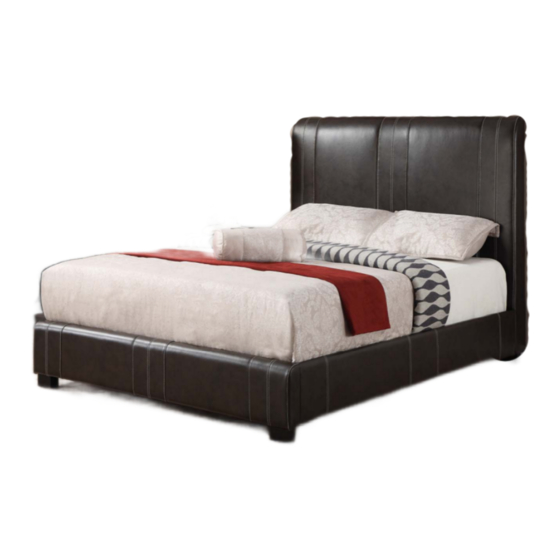

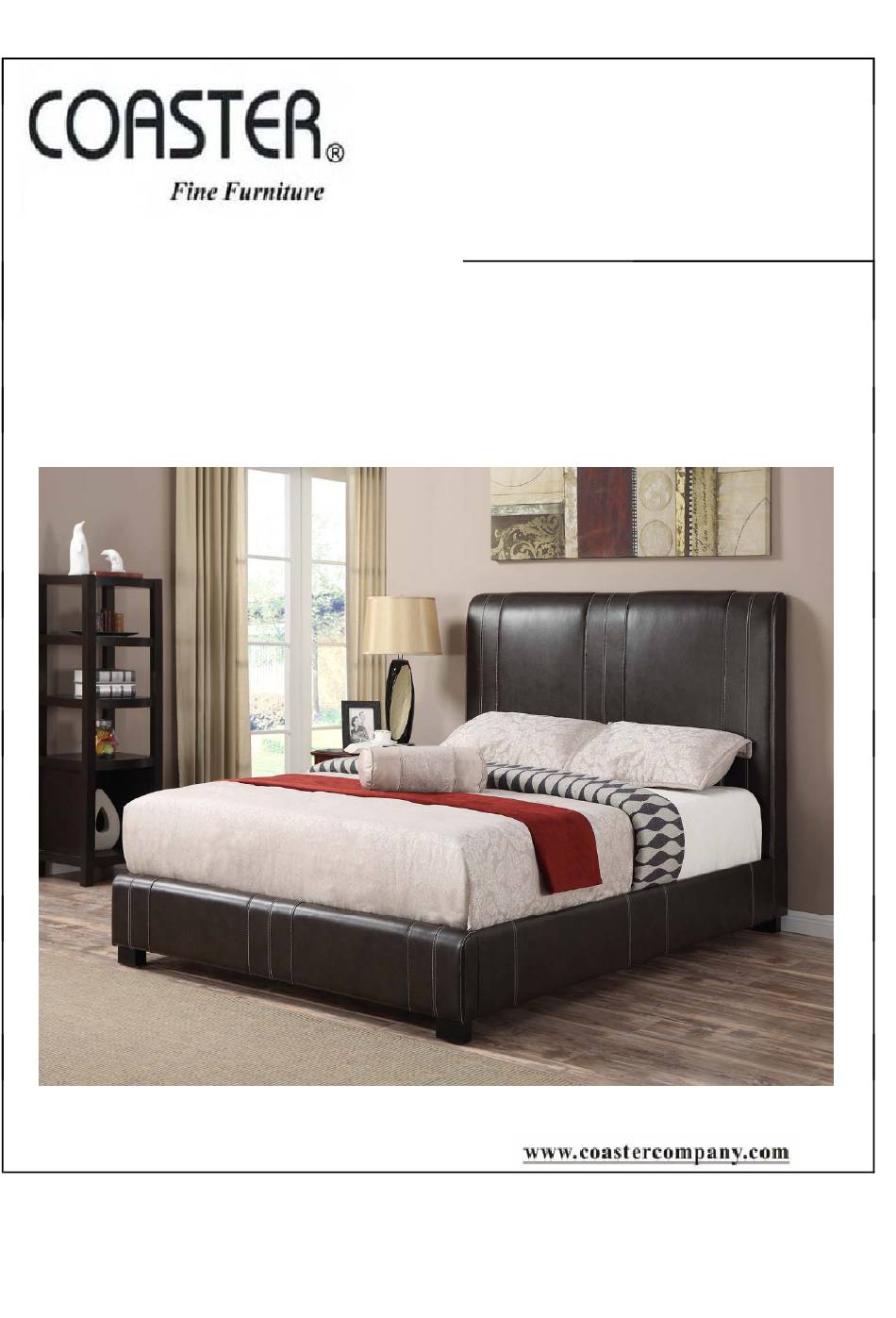

- Page 1 300123FULL FULL SIZE BED ASSEMBLY INSTEUCTIONS COASTER FINE FURNITURE 1 OF 4 2014-5-8...
- Page 2 ITEM: 300123FB1 ASSEMBLY INSTRUCTION ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast &...
- Page 3 ITEM: 300123FB2 ASSEMBLY INSTRUCTION PARTS IDENTIFICATION Wood legs 2 PCS Bed rail 2 PCS Footboard 1 PC Slat 3 PCS Support leg 3 PCS HARDWARE PACKAGE DESCRIPTION FIGURE Q'TY Allen wrench 5*23*67mm 1 PC 2 Flat washer Ø5/16 * Ø16 * Ø1.5 mm 2 PCS Long bolt Long bolt...
- Page 4 IT NEEDS TWO PERSONS AND TAKES ABOUT THIRTY MINUTES TO ASSEMBLE THE ITEM. STEP 1 Attach the wooden foot(B) to the headboard(A) and footboard(D) STEP 2 Align and attach the left and right brackets (4 and 5) to the bed rails (C) using flat washer (7) bolt (8) and tighten with allen wrench (10).
