T20S pulse wire user manual
Guangdong Qilin Laser Application Technology Co., LTD
Address: 9th floor, Building E1, Songhu Zhigu, Liaobu Town, Dongguan City, Guangdong
Province
Tel.: 0755-27999931
mail:
address:www.qilinlaser.com
Be sure to read the manual before using the system
This manual is the T 20S user manual of
industrial laser welding wire feeder
Read the manual carefully first to ensure the
correct electrical connection
T20S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T20S and is the answer not in the manual?

Questions and answers

Related Manuals for Qilin Laser Application Technology T20S

Summary of Contents for Qilin Laser Application Technology T20S

  • Page 1 Read the manual carefully first to ensure the correct electrical connection T20S T20S pulse wire user manual Guangdong Qilin Laser Application Technology Co., LTD Address: 9th floor, Building E1, Songhu Zhigu, Liaobu Town, Dongguan City, Guangdong Province Tel.: 0755-27999931 mail:...

  • Page 2: Copyright Statement

    T20S PulMachine User Manual V1.0 Copyright Statement Guangdong Qilin Laser Application Technology Co., LTD. (hereinafter referred to as Qilin Laser) reserves all powers. Qilin Laser has the patent copyright and intellectual property rights of this product. Without the authorization and permission...

  • Page 3: Certification Statement

    T20S PulMachine User Manual V1.0 Certification statement The CE Certification Statement This product has passed the European Union CE (Communate Europpene) safety, certification, has passed the corresponding conformity assessment procedures and the manufacturer's declaration of conformity, in accordance with the relevant EU directives.

  • Page 4: Security Information

    T20S PulMachine User Manual V1.0 security information When using the system, please ensure that the operation is correct and safe. Some signs or text will be used to remind you of dangerous matters and some important information. danger: Represents a serious danger. In the process of use, if the...
  • Page 5 Qilin Laser immediately. If any obvious damage to the equipment, do not install or debug the equipment. The delivery list of T20S industrial laser welding wire delivery machine is shown in the following table: (As the product will be updated and upgraded,...
  • Page 6 T20S PulMachine User Manual V1.0 catalogue An Overview of Chapter 1 ......................7 1.1 T20 pulse, wire feeder brief introduction ..............8 1.2 Product dimension drawing ..................8 Chapter 2. System installation and use ..................9 2.1 Wire feeder wiring ...................... 10 2.2 Installation diagram of T 20 S ..................11 2.3 Human-machine interface function ................12...
  • Page 7 T20S PulMachine User Manual V1.0 An Overview of Chapter 1 The main contents of this section are: Introduction to the T20S pulse wire feeder Product size chart 7Page 8 of 15 pages14...

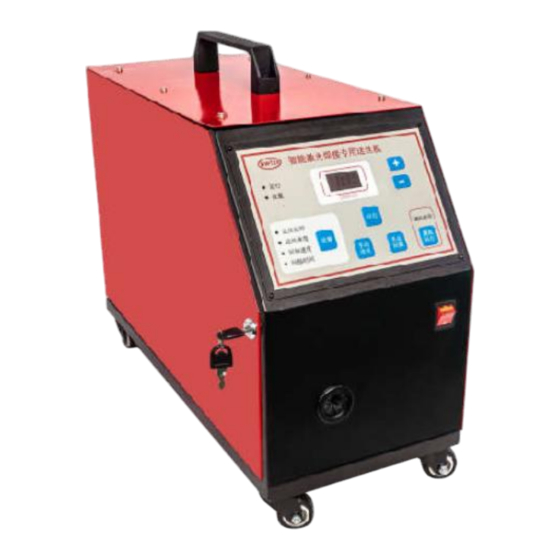

  • Page 8 T20S PulMachine User Manual V1.0 1.1 T20 pulse, wire feeder brief introduction T20 wire delivery machine is a wire delivery machine specially used for fiber laser and pulse wire welding combination developed by Qilin laser. Welding effect Uniately, no tow, no lag, with handheld welding control system for welding, greatly improve the effect of welding process.
  • Page 9 T20S PulMachine User Manual V1.0 Chapter 2. System installation and use The main contents of this section are: Silk delivery machine wiring Schematic diagram of the T20S installation Human-machine interface function Send wire structure description 9Page 8 of 15 pages14...
  • Page 10 T20S PulMachine User Manual V1.0 2.1 Wire feeder wiring External control box connection port Connecting port of wire feeder control box signal definition explain Power supply output end of wire Wfeeder 24V + power interface feeder Silk feeder and board card...
  • Page 11 T20S PulMachine User Manual V1.0 2.2 Installation diagram of T 20 S Note: "1" in the above picture is used to show the installation effect. This wire delivery fixture is not in the list of accessories, it is the standard welding torch head. If you only purchase this wire delivery machine, "1"...

  • Page 12: Function Settings

    T20S PulMachine User Manual V1.0 2.3 Human-machine interface function Function Settings: ① Silk delay: turn on the laser, and then start the wire ② Wire feeder speed: the running speed of the wire feeder ③ Silk filling distance: the filament compensation distance after the puldrawing stops ④...

  • Page 13: Mode Settings

    T20S PulMachine User Manual V1.0 Wfeeder operation: : Manual quick delivery : manual quick withdrawal : Simulate the set parameter run Mode Settings: : Continuous welding mode of wire feeder : pulse welding mode of wire feeder 2.4 Description of the wire delivery structure 1: wire copper nozzle: special wire delivery machine can send 0.8-1.6 wire...
  • Page 14 T20S PulMachine User Manual V1.0 Quality assurance description: The warranty period of this product is 12 months, starting from the delivery date. If there is any fault of the product during the warranty period, Can be sent back to our company, free maintenance, free of labor costs.
