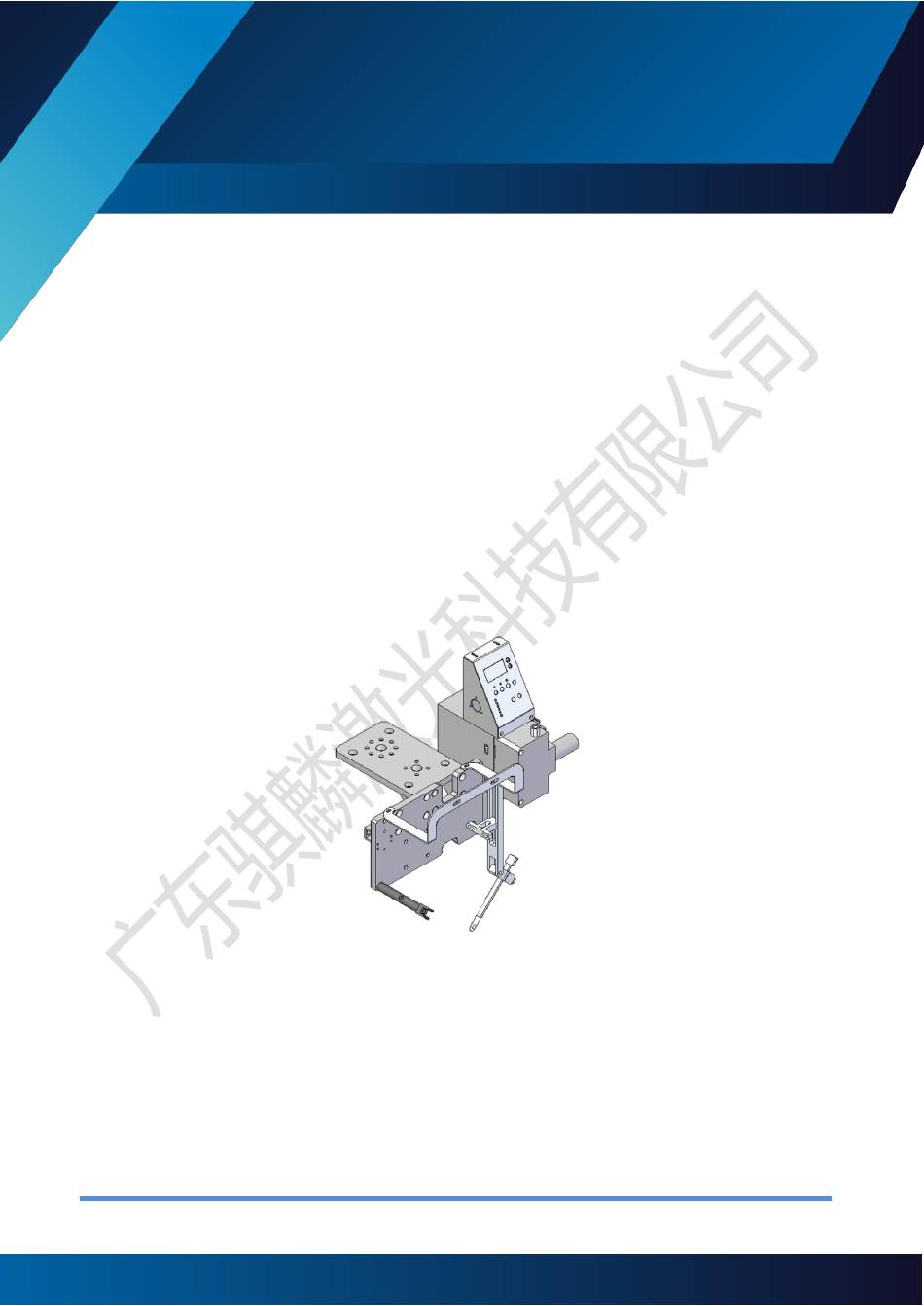

Industrial laser welding wire feeder SST 30 user manual
Guangdong Qilin Laser Application Technology Co., LTD
Address: 9th floor, Building E1, Songhu Zhigu, Liaobu Town, Dongguan City, Guangdong
Province
Tel.: 0755-27999931
mail:
address:www.qilinlaser.com
Be sure to read the manual before using the system
This manual is an industrial SST 30 user manual
Read the manual carefully first to ensure the
correct electrical connection
SS T30
Advertisement
Related Manuals for Qilin Laser Application Technology SS T30
Summary of Contents for Qilin Laser Application Technology SS T30
- Page 1 Read the manual carefully first to ensure the correct electrical connection SS T30 Industrial laser welding wire feeder SST 30 user manual Guangdong Qilin Laser Application Technology Co., LTD Address: 9th floor, Building E1, Songhu Zhigu, Liaobu Town, Dongguan City, Guangdong Province Tel.: 0755-27999931 mail: address:www.qilinlaser.com...
-
Page 2: Copyright Statement
Industrial Laser Machine SST 30 User Manual V1.0 Copyright Statement Guangdong Qilin Laser Application Technology Co., LTD. (hereinafter referred to as Qilin Laser) reserves all powers. Qilin Laser has the patent copyright and intellectual property rights of this product. Without the authorization and permission... -
Page 3: Certification Statement
Industrial Laser Machine SST 30 User Manual V1.0 Certification statement The CE Certification Statement This product has passed the European Union CE (Communate Europpene) safety, certification, has passed the corresponding conformity assessment procedures and the manufacturer's declaration of conformity, in accordance with the relevant EU directives. -
Page 4: Security Information
Industrial Laser Machine SST 30 User Manual V1.0 security information When using the system, please ensure that the operation is correct and the use safely. Some signs or words will be used to remind you of dangerous matters and some important information. danger: Represents a serious danger. - Page 5 Industrial Laser Machine SST 30 User Manual V1.0 Receiving goods, unpacking and inspection The product uses shock-proof soft packaging. If the package has any external damage marks, please check the damage to the equipment and notify the carrier and the carrier of the damage in written documents. important: After receiving the product, please check whether the outer package is in good condition, and check whether the product is...
- Page 6 Industrial Laser Machine SST 30 User Manual V1.0 catalogue An Overview of Chapter 1 ......................7 1.1 Introduction to the SST 30 system of industrial laser welding wire feeder ......... 8 1.2 Product installation dimension drawing ..................8 Chapter 2. System installation and use ..................9 2.1 Wire feeder wiring ........................
- Page 7 Industrial Laser Machine SST 30 User Manual V1.0 An Overview of Chapter 1 The main contents of this section are: Introduction to the SST 30 system Product installation size drawing 7Page 8 of 15 pages14...

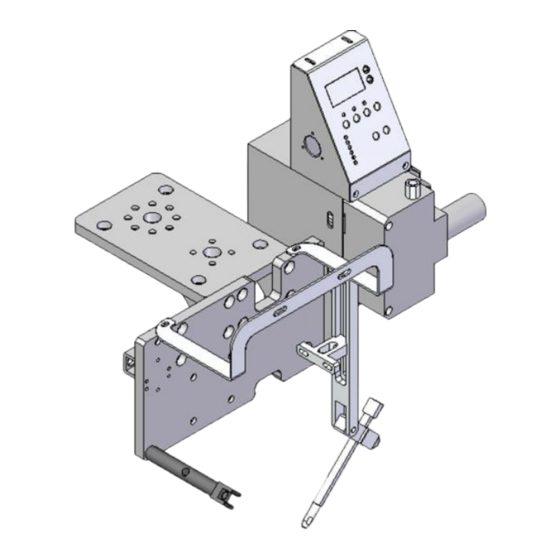

- Page 8 Industrial Laser Machine SST 30 User Manual V1.0 1.1 Introduction to the SST 30 system of the industrial laser welding wire feeder Industrial laser welding wire delivery machine SST 30 system is a control system developed for fiber laser industrial wire delivery welding and robot cooperation. It can be matched with various styles of robot wire welding, welding effect is uniform, no dragging, no lag, with high-definition CCD monitor, can achieve the welding wire melting effect clearly visible.
- Page 9 Industrial Laser Machine SST 30 User Manual V1.0 Chapter 2. System installation and use The main contents of this section are: Silk delivery machine wiring SST 30 send-wire and wiring diagram Human-machine interface function Installation instructions of the wire delivery structure 9Page 8 of 15 pages14...
- Page 10 Industrial Laser Machine SST 30 User Manual V1.0 2.1 Wire feeder wiring External control box connection port Connecting port of wire feeder control box signal definition explain Power supply output end of Wfeeder 24V + power interface wire feeder Silk feeder and board card The wire transmitter communicates with communication port the control system on TX signals...
- Page 11 Industrial Laser Machine SST 30 User Manual V1.0 2.2 SST 30 send-wire wiring diagram Note: "1" in the above picture is used to show the installation effect. This wire delivery fixture is not in the list of accessories, it is the standard welding torch head.
- Page 12 Industrial Laser Machine SST 30 User Manual V1.0 2.3 Human-machine interface function Function Settings: ① Silk delay: turn on the laser, and then start the wire ② Wire feeder speed: the running speed of the wire feeder ③ Silk filling distance: the filament compensation distance after the pulback stops ④...
- Page 13 Industrial Laser Machine SST 30 User Manual V1.0 Mode Settings: : Pulse welding mode of wire feeder : continuous welding mode of wire feeder 2.4 Installation instructions of the wire delivery structure ①: Robot installation hole ②: control box link set cable ③: control panel of wire feeding machine ④: Feed hose ⑤: installation monitor link board...
- Page 14 Industrial Laser Machine SST 30 User Manual V1.0 Quality assurance description: The warranty period of this product is 12 months, starting from the delivery date. If there is any fault of the product during the warranty period,Can be sent back to our company, free maintenance, free of labor costs. Appearance parts (cavity) and consumables (copper nozzle,Stainless steel pipe, such as easy wastage products) is not in the warranty range.
