20-in. snow blower

Advertisement

Quick Links

User
Manual
WSnow20
20-in. Snow Blower
WR1002-2300-500L15S
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call customer service at 855-944-3571.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSnow20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Westinghouse WSnow20

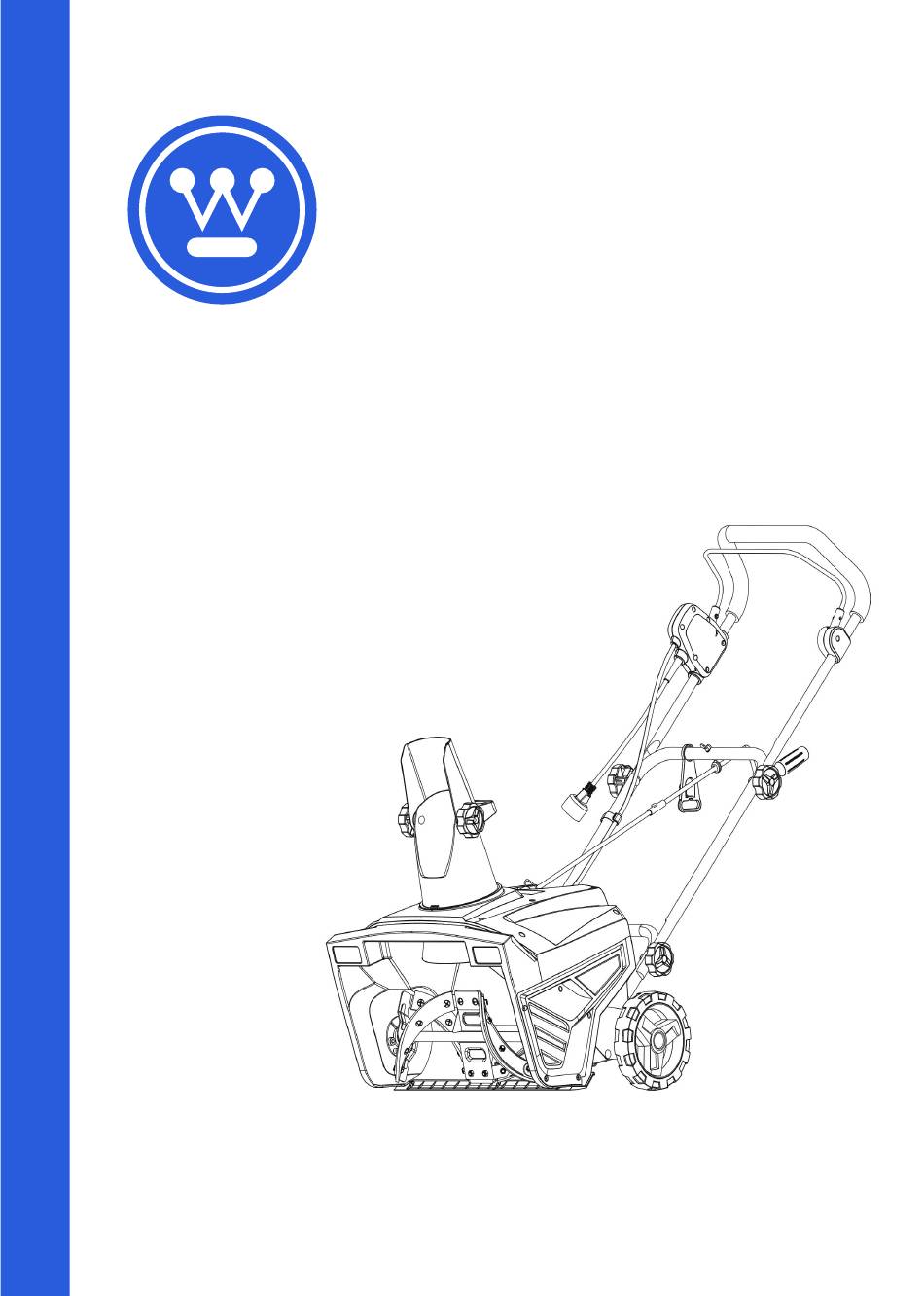

  • Page 1 User Manual WSnow20 20-in. Snow Blower WR1002-2300-500L15S DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571.
  • Page 2: Table Of Contents

    Warranty registration 777 Manor Park Drive UPDATES Columbus, OH 43228 The latest User Manual for your Westinghouse products can IMPORTANT: Keep your purchase receipt for trouble-free be found under our support tab. wpowereq.com/pages/ warranty coverage. manuals Or scan the following QR code with your smartphone camera to be directed to the link.
  • Page 3: Introduction

    If you have a question or experience a problem with your periods. If the product is exposed to extreme tempera- Westinghouse purchase, call us at 1-855-944-3571 to tures during storage, it should be brought back within speak with an agent.
  • Page 4: Safety

    SAFETY SAFETY DEFINITIONS SYMBOL DESCRIPTION The words DANGER, WARNING, CAUTION, and NOTICE Safety Alert Symbol. Indicates a potential are used throughout this manual to highlight important personal injury hazard. information. Make sure that the meanings of this safety in- formation is known to all who operate, perform maintenance Read Operator’s Manual.
  • Page 5 SAFETY z This product is designed with a cord retainer that prevents WARNING READ AND UNDERSTAND ALL the extension cord from being pulled loose while using. INSTRUCTIONS. Failure to follow all instructions list- z If cord is damaged in any manner while plugged in, pull ed below and on the machine may result in electric extension cord from wall receptacle.
  • Page 6 SAFETY z Always wear eye protection with side shields marked to z Check the work area before each use. Remove all objects comply with ANSI Z87.1 along with hearing protection such as rocks, broken glass, nails, wire, or string which when operating this equipment.
  • Page 7: Electrical

    ELECTRICAL ELECTRICAL SAFETY EXTENSION CORDS FIG. 1 TIE CORDS AS SHOWN See Figure 1. When using a power tool at a considerable distance from a power source, be sure to use an extension cord that has the capacity to handle the current the product will draw. An undersized cord will cause a drop in line voltage, resulting in overheating and loss of power.
  • Page 8: Components

    COMPONENTS A - Start button F - Power cable K - Adjustable discharge chute B - Upper handle G - Chute rotation handle L - Headlights C - Power cord retainer H - Switch lever M - Handle locking knobs D - Lower handle I - Chute deflector N - AC plug...
  • Page 9: Assembly

    ASSEMBLY FIG. 4 1 - Upper Handle (1) 6. Chute Adjustment Rod (1) 2 - Main Unit (1) 7. Chute Adjustment Handle (1) 3. Middle Handle (1) 8. Cable Clip (1) 4. M8x50 Screw (4) 9. Cable Strain Relief (1) 5.
  • Page 10 ASSEMBLY FIG. 5 WARNING Do not alter or modify this prod- uct unless instructed otherwise in this manual or by the manufacturer. Do not use attachments or accessories that are not recommended for use with this product. Making unauthorized modifications and using incom- patible accessories can damage the unit and may void your warranty.
  • Page 11: Mounting Bracket

    ASSEMBLY CONNECTING CHUTE ROTATION HANDLE FIG. 8 See Figure 8. z Attach the chute adjustment rod (1) to the chute adjustment handle (2) using the included M4x14 screw (3). INSTALLING CHUTE ROTATION HANDLE TO FRAME See Figure 9. z Unscrew the thumb screw (1), lock washer (2), and washer (3) from the bolt (4) that came pre-installed on the chute adjustment handle.
  • Page 12: Operation

    ASSEMBLY FIG. 11 ADJUSTING THE CHUTE DEFLECTOR See Figure 11. WARNING Never adjust the chute deflector when the auger on the snow blower is running. z To adjust the chute deflector loosen the chute deflector adjustment knobs (2). z Tilt the discharge chute (1) to the desired angle. z Tighten chute adjustment knobs (2).
  • Page 13: Connecting To Power Supply

    OPERATION FIG. 12 WARNING Do not allow familiarity with prod- ucts to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING Always wear eye protection with side shields marked to comply with ANSI Z87.1. Fail- ure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
  • Page 14: Maintenance

    OPERATION z Pull and hold the bail against the handle to start the unit. WARNING Never use the snow blower on a Release the button but continue holding the bail to the rooftop or other unstable surface, which can result in handle.
  • Page 15: Replacement Parts

    Check all nuts, bolts, knobs, screws, fasteners, etc., for or rock salt. tightness. REPLACEMENT PARTS The following replacement parts are available by contacting Westinghouse customer service toll-free at 1 (855) 944-3571. Auger ................................WSnow20-068 Belt ................................WSnow20-052 Scraper ............................... WSnow20-002...
  • Page 16 Service Hotline (855) 944-3571 777 Manor Park Drive, Columbus, OH 43228 and Westinghouse are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Outdoor Power Equipment. © 2024 Westinghouse Outdoor Power Equipment, All Rights Reserved. WSnow20 062424 English Rev 01...
