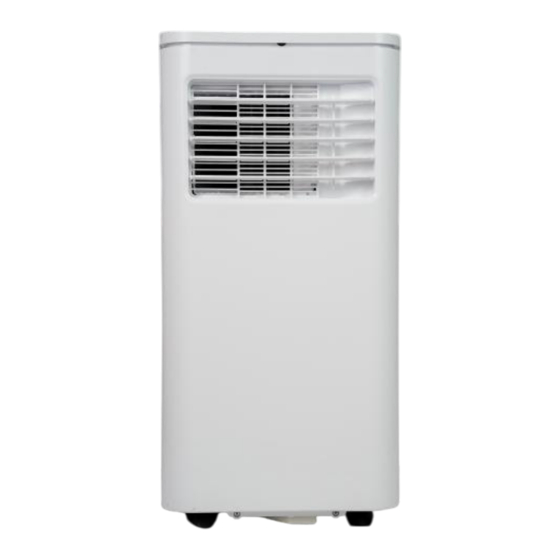

MODEL NO.: NPLB2-06C/X1E
ITEM NO.: A5407-10K
Read all the instructions carefully before setting up and operating the unit.
Keep this instruction manual for future reference.
USER
MANUAL
PORTABLE AIR
CONDITIONER

Advertisement

loading
Need help?

Need help?

Do you have a question about the NPLB2-06C/X1E and is the answer not in the manual?

Questions and answers

Summary of Contents for ROWAN ELECTRIC APPLIANCE NPLB2-06C/X1E

  • Page 1 USER MANUAL PORTABLE AIR CONDITIONER MODEL NO.: NPLB2-06C/X1E ITEM NO.: A5407-10K Read all the instructions carefully before setting up and operating the unit. Keep this instruction manual for future reference.
  • Page 2: Table Of Contents

    Contents AIR CONDITIONER SAFETY ..........................1 PARTS AND FEATURES ..........................8 INSTALLATION REQUIREMENTS ........................ 9 INSTALLATION INSTRUCTIONS ........................10 STEP 1 - UNPACK AIR CONDITIONER ....................10 STEP 2 - TWIST THE EXHAUST HOSE CONNECTOR ONTO EXHAUST HOSE ........10 STEP 3 - CONNECT EXHAUST HOSE TO THE AIR CONDITIONER ............10 STEP 4 - INSTALL WINDOW PANELS ....................11 STEP 5 - COMPLETE INSTALLATION ....................
  • Page 3: Air Conditioner Safety

    AIR CONDITIONER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
  • Page 4 for examination, repair, or adjustment. Disconnect power before servicing.  Disconnect power before cleaning.  NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from the power supply. Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or ...
  • Page 5 apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak. Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any ...
  • Page 6 Start the recovery machine and operate in accordance with manufacturer's instructions. Do not overfill cylinders. (No more than 80 % volume liquid charge). Do not exceed the maximum working pressure of the cylinder, even temporarily. When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
  • Page 7 Cet appareil n'est pas destiné aux personnes (y compris les enfants) ayant des capacités physiques,  sensorielles ou mentales réduites, ou un manque d'expérience et de connaissances, à moins qu'elles n'aient reçu une supervision ou des instructions concernant l'utilisation de l'appareil par une personne responsable de leur sécurité.
  • Page 8 En aucun cas, des sources potentielles d'inflammation ne doivent être utilisées pour rechercher ou détecter  des fuites de réfrigérant. Une torche aux halogénures (ou tout autre détecteur utilisant une flamme nue) ne doit pas être utilisée. Des détecteurs de fuites électroniques doivent être utilisés pour détecter les réfrigérants inflammables, mais ...
  • Page 9 parties du système. Assurez-vous que le cylindre est situé sur la balance avant de procéder à la récupération.Start the recovery machine and operate in accordance with manufacturer's instructions. Ne pas trop remplir les cylindres. (Pas plus de 80 % de volume de charge liquide). Ne pas dépasser la pression maximale de service du vérin, même temporairement.
  • Page 10: Parts And Features

    PARTS AND FEATURES Control Panel 11. Drain Port Air Outlet 12. Power supply Caster 13. Drain Cover and Plug Air Intake 14. Remote Control Filter 15. Connector Fastener 16. Exhaust Hose Air Intake 17. Adapter Handle 18. Window kits Plug Storage Area 19.
  • Page 11: Installation Requirements

    INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation. TOOLS NEEDED •Flat-blade Screwdriver •Phillips Screwdriver LOCATION REQUIREMENTS Place the air conditioner on a flat, level surface in a location that is at least 50cm from any wall. NOTE: A minimum clearance of 50cm from the air conditioner to the wall must be maintained to ensure proper airflow.
  • Page 12: Installation Instructions

    To test the power supply cord before operation: 1. Plug the power cord into a grounded 3 prong outlet. 2. Press the Test button, and then press and release the Reset button to restore power. REQUIRED GROUNDING METHOD This air conditioner must be grounded. The air conditioner is equipped with a power supply 115V cord that has a 3 prong grounding plug.
  • Page 13: Step 4 - Install Window Panels

    Slide the exhaust hose assembly from the outer air outlet to the right The assembly is completed until the convex point of the inner joint and the concave point of the air outlet are stuck. STEP 4 - INSTALL WINDOW PANELS Depending on the size of your window opening, use the main panel and one or both of the extension panels.
  • Page 14: Step 5 - Complete Installation

    Connect with panel B, adjust the panel(s) to the width or height of the window as shown. Fasten the butterfly nut to fix the window slide set. STEP 5 - COMPLETE INSTALLATION Close the window as far as the window slide set, so this covers the window opening completely. Place the device at least 50 cm away from walls and other objects.
  • Page 15: Control Panel

    CONTROL PANEL BUTTONS A. TIMER BUTTON Program a time from (1-hour to 24-hours) for the air conditioner to turn Off or On. When a Time Delay is programmed, the Timer indicator light will illuminate. While the air conditioner is operating: 1.
  • Page 16: Mode Button

    E. MODE BUTTON Press the Mode button to toggle among the operating options. The corresponding indicator will illuminate: Cool – Cools the room to the set temperature Dehum – Reduces the humidity in the room Fan – Circulates the air in the room without cooling F.
  • Page 17: Safety Protections

    SAFETY PROTECTIONS 1. Water-full safety alarm and shut – off protection function When the water volume exceeds its alarm level in chassis, warning sounds automatically and water-full icon is lighting in display, you need to drain the water and re-start the unit. (For more information about how to drain, refer to the “Drainage Instruction”...
  • Page 18: Drain The Internal Water

    DRAIN THE INTERNAL WATER You will need a small pan to catch the water coming out of the water tank. Once the water tank is empty, the unit will resume operation within a few minutes. MANUAL DRAINAGE Once the unit shuts down upon water-full, turn off the unit and then unplug.
  • Page 19: Filter Cleaning

    FILTER CLEANING - Clean the filter once every two weeks, or it would influence the unit function if filter clogged with dust. - Grip the filter handle and pull it out gently in correct direction. Clean the dirty particles in filter by cleaner if it is necessary.
  • Page 20: Troubleshooting

    TROUBLESHOOTING First try the solutions suggested here to possibly avoid the cost of a service call. Trouble Cause Solution Connect the unit to a live socket and Power supply failure turn it on. Water-full and its icon lighting Drain the water stored in the unit. It is recommended to use this unit The unit fails to start up Ambient temperature too low or low high...
  • Page 21 DISPOSAL All the technical and specific parameters, please refer to product nameplate. Due to continuous improvement, we reserve the right to change some design without timely notice. Electrical products should be properly disposed. Please recycle where facilities exist. Check with your local authority or retailer for recycling.
