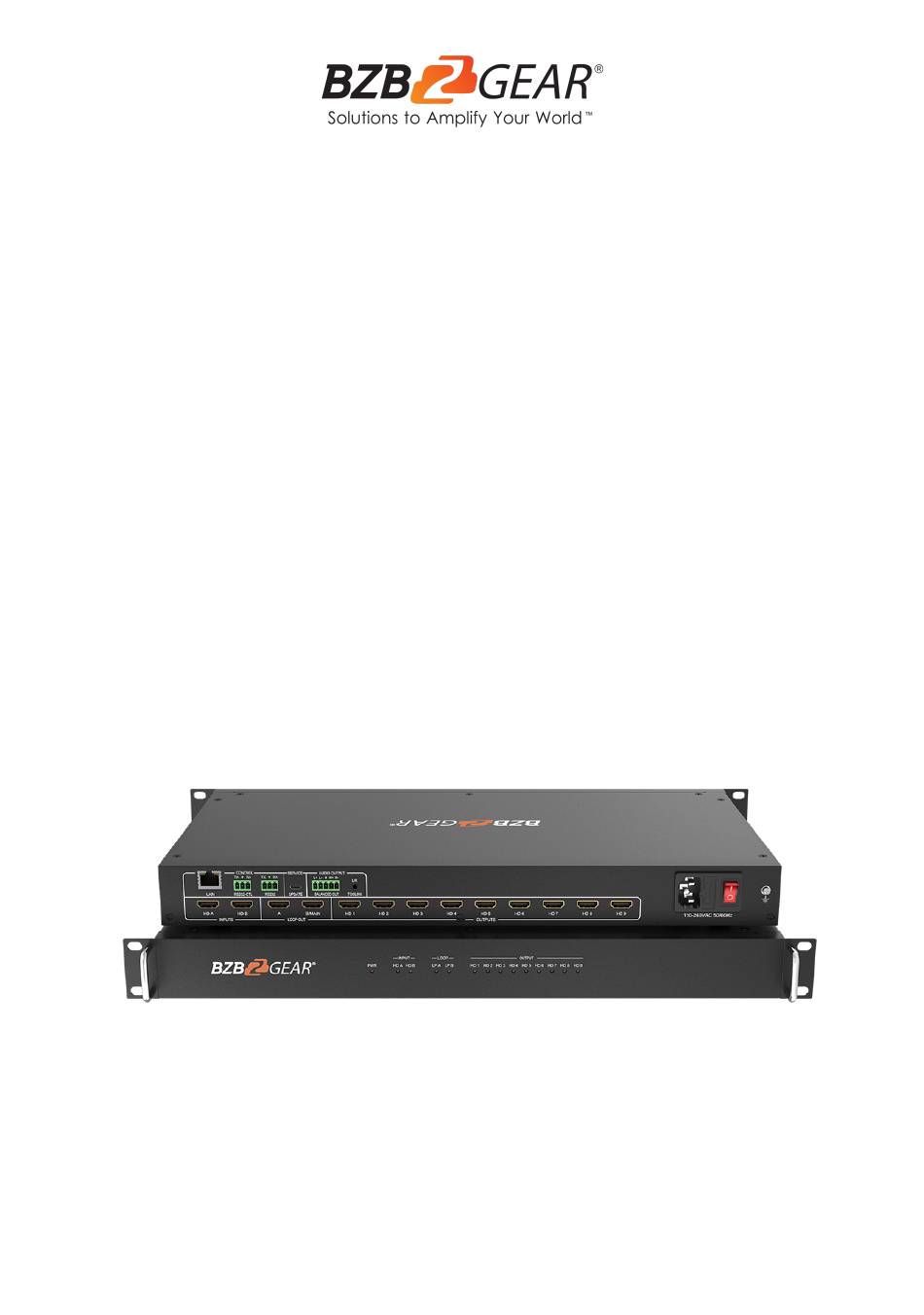

- Page 1 BG-UHD-VW29 3X3 4K 18Gbps UHD HDMI 2.0 Video Wall Processor/Controller with Audio and IP/RS232 Control User Manual...
- Page 2 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions RS232/LAN Control Connection PC Tool User Guide Creating a second video wall Connection Diagram Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Introduction The BG-UHD-VW29 is an HDMI 2.0 Video Wall controller with 2 HDMI inputs, 2 HDMI loop outputs, and 9 HDMI scaling outputs for video wall processing. The 5-pin phoenix connector provides balanced L/R audio output. The product also features an RS-232 bypass feature for daisy chain and cascade connections with different units. -
Page 6: Specifications
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/1.4 RS-232 Baud rate: 57600, data bit: 8, Stop bit: 1, no parity 1024x768@60, 1280x800@60, 1280x1024@60, 1280x960@60, 1360x768@60, 1366x768@60, 1440x900@60, 1400x1050@60, 1600x900@60, 1600x1200@60, 1680x1050@60, 1920x1200@60, Input Video Formats... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description Power LED The power LED will illuminate when the unit is powered on. The LED will illuminate when the corresponding HDMI input port is INPUT LED connected to an active HDMI source device. -
Page 8: Rs232/Lan Control Connection
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL RS232/LAN Control Connection RS232 Control Connection Connect to the RS-232-CTL port of the product to a PC using a USB serial cable as shown in the following figure: Network Control Connection Direct connection via Ethernet cable: 1. - Page 9 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL 3. Run the PC control software (If you change the IP address of the PC after running the software you will need to close it and run it again). 4. Click to switch "Ctrl Mode" to "Network".
-
Page 10: Pc Tool User Guide
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL PC Tool User Guide The PC Tool control software supports both UART and network control. PC Tool has five tabs: Matrix Switch, Signal Setting, Fine Tune: PQ, Video Wall, and CEC Control. The UI is as follows: Matrix Switch Tab 1. - Page 11 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL A. Read the EDID information for devices connected to each output and save as a BIN file. B. Open an existing EDID file and write it to the HDMI A and B input port as Manual EDID.
- Page 12 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL FineTune: PQ Tab Configure the brightness, contrast, saturation, and sharpness of each output. Note: The recommended settings are the default 50/50/50/50. Do not change the default settings unless under special circumstances. If problems arise after reconfiguration, click the ‘Reset’...
- Page 13 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Video Wall Tab Configure a group of outputs to function together as a video wall. The Video Wall Setting controls manage how the displays are arranged: 1. Adjust the “Rows” and “Columns” sliders to adjust the displayed screens arrangement.
-
Page 14: Creating A Second Video Wall
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Creating a second video wall Repeat steps 2-5 above using a different set out output. Please note, changing the “Rows”, “Columns”, and “Available” sliders will automatically delete the current video wall configuration once the “Set” button is clicked. The following example shows an unusual video wall configuration for demonstrative purposes:... - Page 15 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Video Wall Context Menu Right click on any icon to display the following menu: Screen Splicing This option connects the selected screens into a video wall configuration. Cancel Splicing Return the Video Wall configuration to normal outputs.
- Page 16 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Bezel Setting The Bezel Setting allows the images displayed on the video wall to be adjusted by compensating for the thickness of the TV’s bezel. The displays on the video wall should create a cohesive, unified image. To achieve this, the edge of each display’s image must be removed from the sides of displays that meet.
-
Page 17: Connection Diagram
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 18: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 19: Warranty
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 20: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
