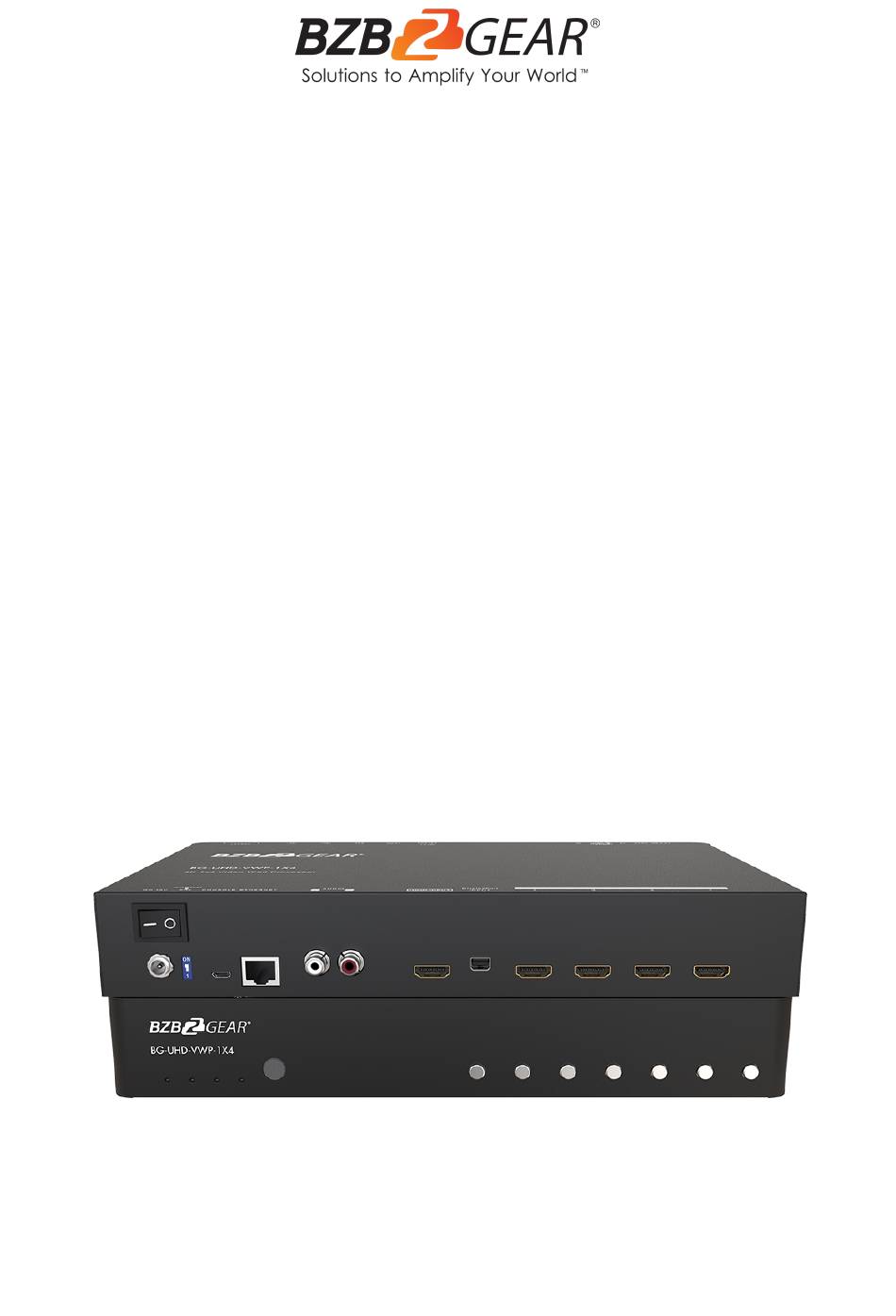

- Page 1 BG-UHD-VWP-1X4 1X4 4K 18Gbps UHD VideoWall Processor/Controller with Scaler/Audio and 1X3/1X4/2X2/4X1 Layouts User Manual...
- Page 2 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Hardware Installation Application Diagram Operation Controls and Functions Operation Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-UHD-VWP-1X4 4K 1x4 Video Wall Processor is a powerful, cost effective, video processor for multiple flat panel displays or projectors. The unit allows users to input HDMI/ DisplayPort signals up to 4K2K@60Hz 4:4:4. The embedded scaler converts video signals to match the native resolution of monitors, flat panel displays, projectors as well as... -
Page 6: Specifications
BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL Specifications Model Name BG-UHD-VWP-1X4 Technical Specifications HDCP compliance Input – Single link 600MHz [18Gbps] Video bandwidth Output –Single-link 225MHz [6.75Gbps] Input - 4K2K@60 (4:2:2 8 bits) / 4K2K@60 (4:4:4 8 bits) Video support Output – 1920x1080@60 / 1920x1200@60... -
Page 7: Hardware Installation
BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL Hardware Installation 1. Connect the sources to the HDMI / DisplayPort Inputs of the BG-UHD-VWP-1X4. 2. Connect all displays to HDMI Outputs of the BG-UHD-VWP-1X4. 3. Connect the +12V DC power supply to the BG-UHD-VWP-1X4 Application Diagram ·... -
Page 8: Operation Controls And Functions
BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL Operation Controls and Functions Front Panel 1. LED indicator: ● PWR - Power indicator LED ● LOCK - When the device panel is locked the LED will illuminate. ● 4K - If source resolution is 4K, the LED indicator will illuminate. - Page 9 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL Rear Panel 4. Power Switch: Power ON/OFF switch 5. +12V DC: 12V DC power jack 6. Dip Switch: For firmware update (Default mode: on) 7. USB virtual COM 8. Ethernet: Ethernet control port 9. Stereo audio output – L 10.
-
Page 10: Operation
Software Operation System Requirement and Precautions 1. Whenever you power off the BG-UHD-VWP-1X4 keep the device unpowered for at least 5 to 10 seconds to allow power capacitors to discharge. 2. The BG-UHD-VWP-1X4 control program is compatible with WindowOS machines connected through USB. - Page 11 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 2. Ethernet Connection: Connect either directly to the ethernet port of the device or over a network. Enter the device’s IP address and click the green Check button. After the software control successfully connects it will enter the control interface.
- Page 12 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 2. Quick Selection: Note: This function is not available when the input resolution is set to 4K2K@60Hz Here you can set the screen resolution, screen coordinates, and split screen. Select the TV picture to modify its settings. The different color frames represent different output ports of the device.
- Page 13 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL Output Selection and Resolution: 1. Step 1: Check the input resolution and choose an output resolution. Set the output resolution. Choose the display icon to select the output port and set the resolution. When setting a resolution the coordinates of the output will also be changed.
- Page 14 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 3. Step 2-1: Quick Selection If you choose the Quick Selection mode you can select a default screen split and rotate the screen (rotation only available when set to 1080p). ● 3x1: This mode will divide the screen into 3 parts and rotate the figure. The remaining part shows the full screen.
- Page 15 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 5. Step 2-3: Custom Define In the Custom Define mode you can define how to cut in both directions and which part you want to display on an output. If you want to estimate which part is selected click the Grid button to display a grid on the screen.
- Page 16 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 3. EDID (Extended Display Identification Data) The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI sources and displays may have various level of capability in playing audio and video, the general principle is that the source will output the lowest standards in terms of audio format and video resolutions to be commonly acceptable among all HDMI displays.
- Page 17 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL ● Click button to learn default EDID. 1. Learn EDID from Display ● Select the Output. ● Click button to learn display EDID. 2. Learn EDID from File ● Click button to select the EDID file and write it into input.
- Page 18 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 3. Factory Reset ● Click the button to do factory reset to default settings. ● This reset process takes about 5 seconds. ● A pop-up dialog will appear which indicates the operation is complete. Restart the unit after clicking OK.
- Page 19 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 6. Cloud setting-Association Code Click the button to get an “association code”. The device can use this code to pair with a cloud server. After a successful pairing you can reset the cloud. *The unit needs to be paired to cloud within 2 minutes after getting an association code.
- Page 20 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 9. Refresh The refresh function can refresh information for displayed settings and can also reconnect the device. You can click button to update the control connection. A “ReConnectForm” window will pop up and allow a user to select how they would like to connect to the device..
- Page 21 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 2. The Registration page will pop up. Fill in your email and password information to create your private account. Add Device to IntriCloud 1. Ensure the device is connected to the Ethernet. Next start the software for the device to get the association code (device must be connected).
- Page 22 BZBGEAR BG-UHD-VWP-1X4 PRODUCT MANUAL 2. Access IntriCloud (http://www.intri.cloud), and then log in your account in the top right corner. Click “Add device” to select the devices you generated the code for. 3. Enter the Installer Email for online support in the future and the Association Code to pairing with your device.
-
Page 23: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 24: Mission Statement
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
