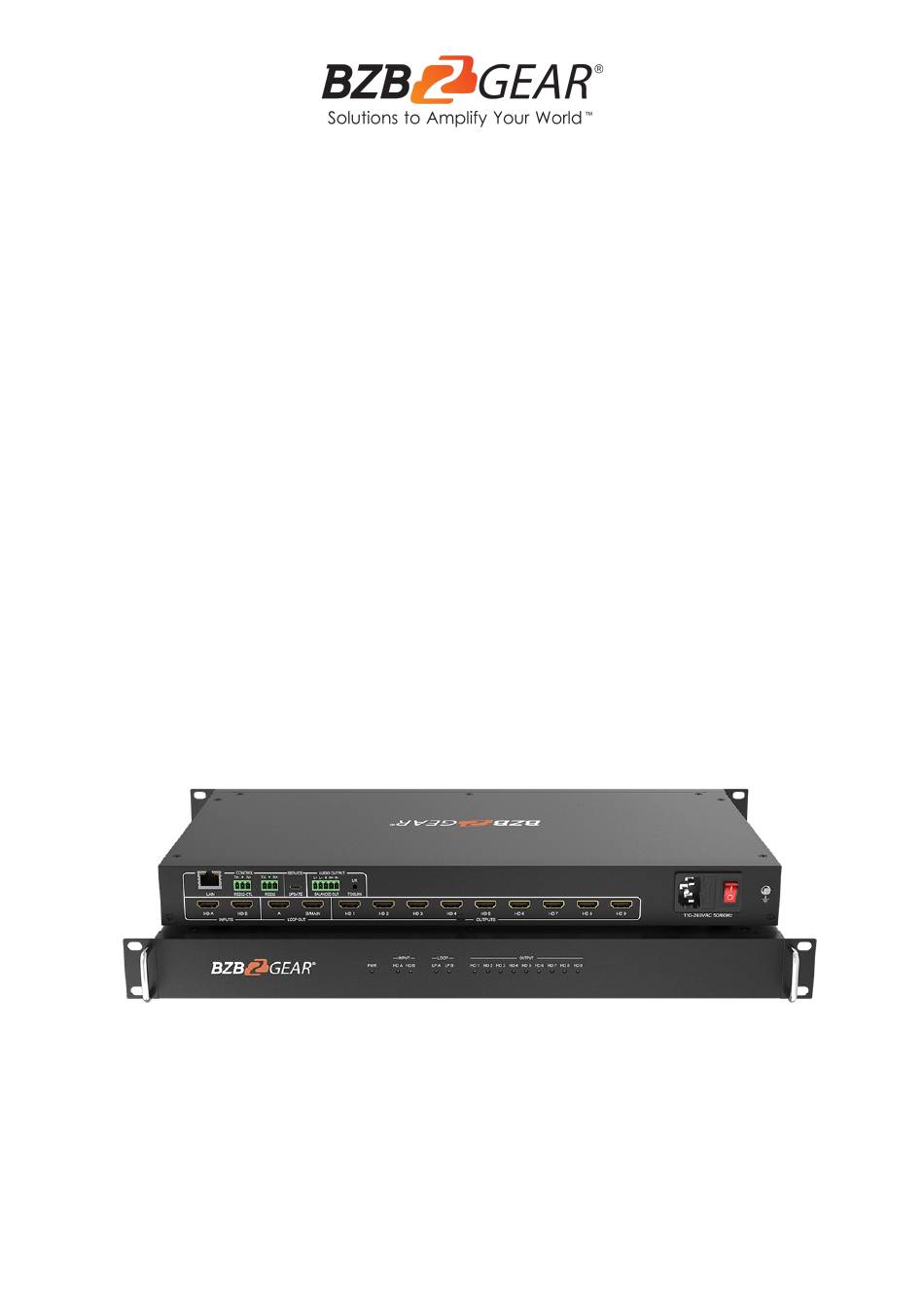

- Page 1 BG-UHD-VW29 3X3 4K 18Gbps UHD HDMI 2.0 Video Wall Processor/Controller with Audio and IP/RS232 Control User Manual...
- Page 2 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions RS232/LAN Control Connection PC Tool User Guide Creating a second video wall Connection Diagram Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-UHD-VW29 is an HDMI 2.0 Video Wall controller with 2 HDMI inputs, 2 HDMI loop outputs, and 9 HDMI scaling outputs for video wall processing. The 5-pin phoenix connector provides balanced L/R audio output. The product also features an RS-232 bypass feature for daisy chain and cascade connections with different units. -
Page 6: Specifications
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/1.4 RS-232 Baud rate: 57600, data bit: 8, Stop bit: 1, no parity 1024x768@60, 1280x800@60, 1280x1024@60, 1280x960@60, 1360x768@60, 1366x768@60, 1440x900@60, 1400x1050@60, 1600x900@60, 1600x1200@60, 1680x1050@60, 1920x1200@60, Input Video Formats... -
Page 7: Operation Controls And Functions
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description Power LED The power LED will illuminate when the unit is powered on. The LED will illuminate when the corresponding HDMI input port is INPUT LED connected to an active HDMI source device. -
Page 8: Rs232/Lan Control Connection
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL RS232/LAN Control Connection RS232 Control Connection Connect to the RS-232-CTL port of the product to a PC using a USB serial cable as shown in the following figure: Network Control Connection · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 9: Pc Tool User Guide
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL PC Tool User Guide The PC Tool control software supports both UART and network control. PC Tool has five tabs: Matrix Switch, Signal Setting, Fine Tune: PQ, Video Wall, and CEC Control. The UI is as follows: Matrix Switch Tab 1. - Page 10 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL 7. EDID Control: Clicking the ‘EDID’ button will open the below EDID control window: A. Read the EDID information for devices connected to each output and save as a BIN file. B. Open an existing EDID file and write it to the HDMI A and B input port as Manual EDID.
- Page 11 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Available output resolutions: Output Resolution Setting Output Resolution Setting 3840x2160p 60Hz 1440x1050 60Hz 3840x2160p 50Hz 1366x768 60Hz 3840x2160p 30Hz 1360x768 60Hz 3840x2160p 25Hz 1280x1024 60Hz 1920x1200 60Hz 1280x768 60Hz 1920x1080p 60Hz 1280x720p 60Hz 1920x1080p 50Hz 1280x720p 50Hz...
- Page 12 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL CEC Control Tab When ‘Auto Power On’ is enabled, all displays connected to the device will turn on when the device is powered on. CEC functions, including Power on/off, Volume+/-, Mute/Unmute, are supported but all devices may not be compatible.
-
Page 13: Creating A Second Video Wall
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL The Video Wall Setting controls manage how the displays are arranged: 1. Adjust the “Rows” and “Columns” sliders to adjust the displayed screens arrangement. - The “Available” slider sets the number screens that will be used for the Video Wall. - Page 14 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Video Wall Context Menu Right click on any icon to display the following menu: Screen Splicing This option connects the selected screens into a video wall configuration. Cancel Splicing Return the Video Wall configuration to normal outputs.
- Page 15 BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Bezel Setting The Bezel Setting allows the images displayed on the video wall to be adjusted by compensating for the thickness of the TV’s bezel. The displays on the video wall should create a cohesive, unified image. To achieve this, the edge of each display’s image must be removed from the sides of displays that meet.
-
Page 16: Connection Diagram
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 17: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 18: Warranty
BZBGEAR BG-UHD-VW29 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 19: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 20: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
