Chamberlain 65C Owner's Manual

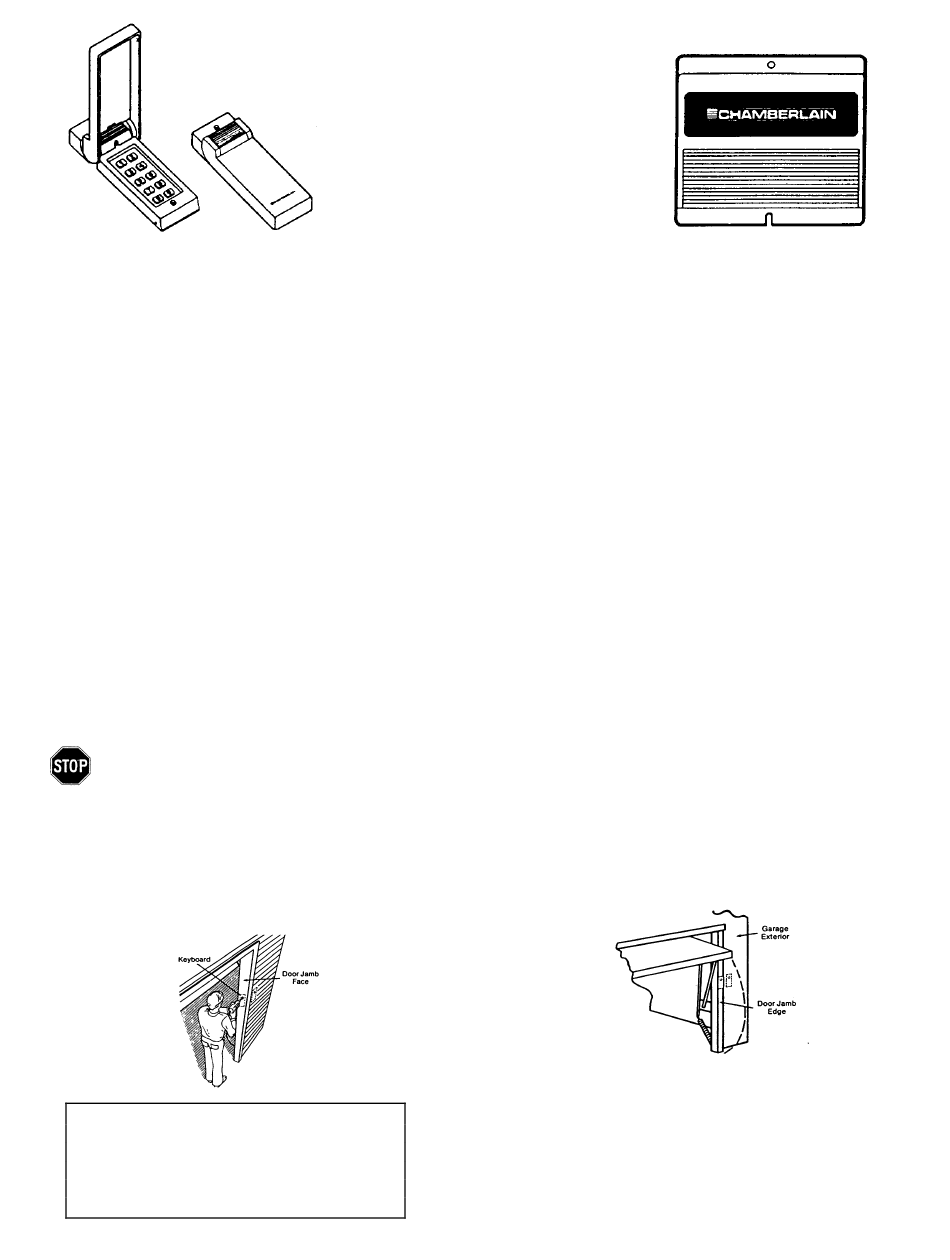

KEYBOARD
The Keyless Entry System consists of a keyboard and a console. The keyboard sends a coded signal from outside
the garage. The console fastens to an inside garage wall. It receives the 4-digit programmed coded signal and
starts the door opener. The Keyless Entry System will work with most Genie "Push Twice to Operate" openers if
you press any other digit after you enter the 4-digit programmed code.
NOTE: CABLE CONNECTOR HOLE IS LOCATED ON LEFT SIDE OF CONSOLE. IF POSSIBLE,
INSTALL KEYLESS ENTRY SYSTEM ON LEFT SIDE OF GARAGE (DETERMINED BY FACING
GARAGE FROM OUTSIDE). IF INSTALLED ON RIGHT SIDE OF GARAGE, CABLE MUST BE ROUTED
OVER OR UNDER CONSOLE.
Personalized Code: 10,000 possible combinations. Code
can be changed easily if desired.
Operation: Opener activates when programmed code is
entered on keyboard.
The user has 10 seconds from the time the first number is
pressed to enter the 4-digit code.
If incorrect numbers are accidentally pressed, a 5 second
interval is necessary before starting over.
Power Supply: Operates from the garage door opener
power with a battery back-up for code memory and lighted
keyboard.
THE UNIT WILL NOT OPERATE WITHOUT A BATTERY.
DISCONNECT THE POWER TO THE GARAGE DOOR OPENER BEFORE BEGINNING INSTALLATION.
STEP 1-SECTIONAL DOORS: Draw two intersecting
lines on garage jamb face-horizontally at eye level and
vertically as close to centerline as possible. Make sure
there is at least 1-1/4" clearance on each side of the
vertical line. Drill a 1" diameter hole through the jamb at
marked location.
Refer to illustration on Side 2 if your garage has a
built-up jamb.
PARTS LIST
Console Assembly.........................41D2995
Keyboard Assembly.......................41D2994
9 Volt Battery......................................10A15
2 Strand Bell Wire...........................217A197
Transformer Kit (inc. bell wire)........Model 95
CHAMBERLAIN
Keyless Entry System
Model 65C
Owners Manual
FEATURES OF KEYLESS ENTRY SYSTEM
Side 1
Installation: Simple to install in 6 easy steps.
Console: provide an additional push button control to
operate door from inside garage.
Keyboard: The garage door can be operated after a
valid code entry by pressing ANY single key AS LONG
AS THE KEYBOARD LIGHT REMAINS ON.
Keyboard illuminates and remains lit for 10 seconds
when ANY number is pressed. In darkness this feature
allows user to press ANY number before entering the
4-digit code.
IMPORTANT NOTE: When illumination is needed,
avoid pressing keyboard area which contains the
first code number.
STEP 1-ONE PIECE DOORS: Install the keyboard on
the exterior front wall of a FRAME garage. Position it
away from the door opening to avoid injury as door
swings out and up. Drill a 1" diameter hole through wall
at eye level. Refer to note below; then proceed to Step 2.
NOTE: If garage is constructed of material other
than wood (brick, stone or aluminum siding), install
keyboard on door jamb with this important
exception: LOCATE KEYBOARD ON OUTSIDE
EDGE OF DOOR JAMB TO AVOID INJURY AS
DOOR SWINGS OUT AND UP.
NO USER SERVICEABLE PARTS.
For service information, Call Toll Free:
1-800-654-4736
CONSOLE
