Interface Manual
Sentinel Modbus

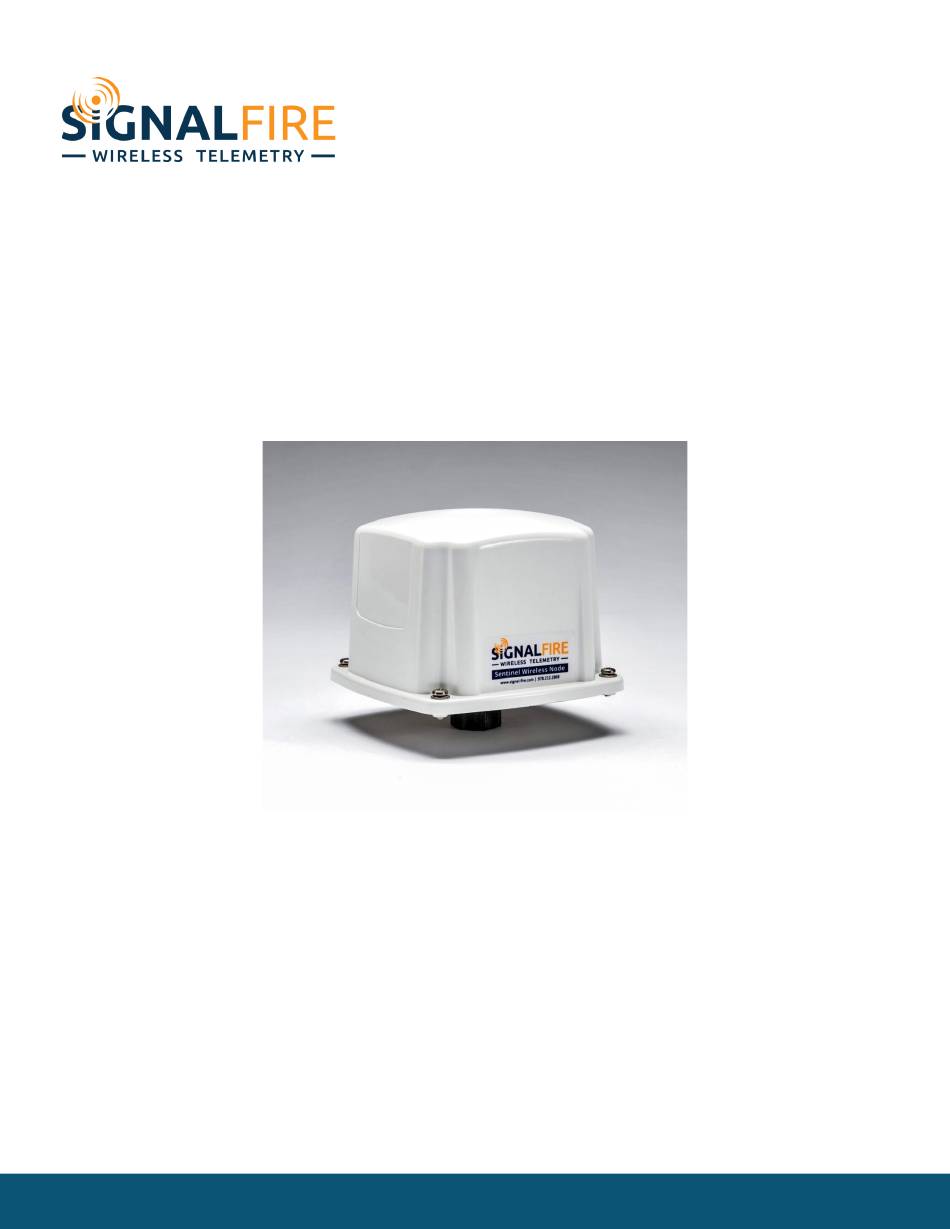

The SignalFire Sentinel Node is a device with the following features:
-
RS485 connection to a single Modbus RTU sensor device
-
Configurable Modbus register polling map
-
Can power an attached Modbus sensor at 8V or 13V with configurable warm-up time
-
Low power operation from on board DC-DC power supply
-
Sends data to a SignalFire Buffered Modbus Gateway
-
AES 128bit Encryption
Rev 1.13
SignalFire Model: Sentinel-485-DC
SignalFire Telemetry
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentinel-485-DC and is the answer not in the manual?

Questions and answers

Summary of Contents for SignalFire Sentinel-485-DC

  • Page 1 Interface Manual Sentinel Modbus SignalFire Model: Sentinel-485-DC The SignalFire Sentinel Node is a device with the following features: RS485 connection to a single Modbus RTU sensor device Configurable Modbus register polling map Can power an attached Modbus sensor at 8V or 13V with configurable warm-up time...
  • Page 2: Specifications

    WARNING: The use of any parts not supplied by the manufacturer violates the safety rating of the equipment. L’utilisation de toute composantes différentes du manufacturier élimine la sécurité intrinsèque du produit Rev 1.13 SignalFire Telemetry...
  • Page 3 Markings Device Label DC Converter Rev 1.13 SignalFire Telemetry...
  • Page 4: Connections And Components

    The ERROR LED (red) will blink to indicate an error condition. Scan/Checkin Button If this button is pressed the Sentinel will power the sensor on for the configured time, read the pre- configured Modbus registers from the sensor, and forward those values to the gateway. Rev 1.13 SignalFire Telemetry...
  • Page 5 Modbus registers to be polled Modbus sensor power on time All settings are made using the SignalFire Toolkit PC application and a serial programming cable. WARNING: Perform the steps in this section (Setup) in a safe location only. Using the SignalFire Toolkit The SignalFire Toolkit application can be downloaded at www.signal-fire.com/customer.
  • Page 6 ❶ COM Settings ❹ Register Values ❷ Node Information ❺ Current Program Steps ❸ Configurable Node Settings Rev 1.13 SignalFire Telemetry...
  • Page 7 To set up a legacy Sentinel to use encryption, click the checkbox labeled Enable Encryption inside the Set Corporate ID box. All newer Sentinels come with this option enabled with “signalfire” as the default encryption key. Corporate ID...
  • Page 8 The Sentinel Modbus node requires that the Sentinel is configured with a list of Modbus registers to be read from the attached sensor using the SignalFire Toolkit application prior to installation. The preconfigured set of registers is automatically read from the Modbus sensor device and forwarded to the Modbus gateway on a pre-defined schedule (1 minute to 5 minutes is typical).
  • Page 9: Sensor Connections

    Sensor Connections Wiring Requirements Follow these guidelines when connecting sensors to the SignalFire node. See pictures for proper wire routing examples. Cables entering the enclosure must be run as pictured. DC power cable should be run through the cable gland and gland should be tightened.
  • Page 10 Tightening torque: max 0.4 N*m Sensor cable should be routed as shown Sensor Connection The Sentinel Modbus node has a single terminal block for connection to a Modbus sensor. Rev 1.13 SignalFire Telemetry...
  • Page 11 The Sentinel has a current limiting resistor of 150 ohms. The voltage available to the sensor depends on the sensor current load. See the graphs below for details: Rev 1.13 SignalFire Telemetry...
  • Page 12 The register address entered is subtracted by the offset in the Register Addressing Mode. The offset can be 0 or 1. For example, with One Based Addressing, a holding register of address 3990 should be entered as function code 0x03, address 3991. Rev 1.13 SignalFire Telemetry...
  • Page 13 Add New Program Step. If the step is valid, it will be added to the table. Finally, click Write New Program Steps to Device to save the changes. Note: In the legacy menu, the Register Addressing Mode is locked to One Based Addressing, so 3990 should be entered as 3991. Rev 1.13 SignalFire Telemetry...
  • Page 14 The Data Type pull-down only lists data types that support the register size and unsupported data types in the register list are changed to the default data type for the register size. Rev 1.13 SignalFire Telemetry...
  • Page 15 Remote Modbus Register Mapping The Sentinel node sends data to a SignalFire Telemetry Modbus Gateway. The data that is sent to the gateway is available at the gateway in registers where it can then be read by a Modbus RTU.
  • Page 16 ATTENTION: Le produit Sentinel doit être installé dans un endroit libre de hautes vibrations. Sans quoi avec le temps, des possibles dommages pourraient compromettre la sécurité intrinsèque du produit. Les installations sur équipement en vibration constante (pompes, compresseurs) doit à tout prix être éviter. Rev 1.13 SignalFire Telemetry...
  • Page 17 Debug and configuration information is available if a connection is made via the debug port on the main board. A USB converter cable (available from SignalFire) must be used for this interface. Debug and advanced configuration may be done using the SignalFire Toolkit PC application.
  • Page 18: Product Disposal Information

    EPA’s electronics recycling page • By following these guidelines, you help reduce waste and support environmental sustainability. Revision History Revision Date Changes/Updates 1.12 5/2/2024 Initial release – Forked from Sentinel Manual 1.13 11/1/2024 Add disposal information Rev 1.13 SignalFire Telemetry...
  • Page 19 APPENDIX - FCC and IC Statements Changes or modifications not expressly approved by SignalFire Telemetry, Inc could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
