ASSEMBLY INSTRUCTION FOR ACME FURNITURE

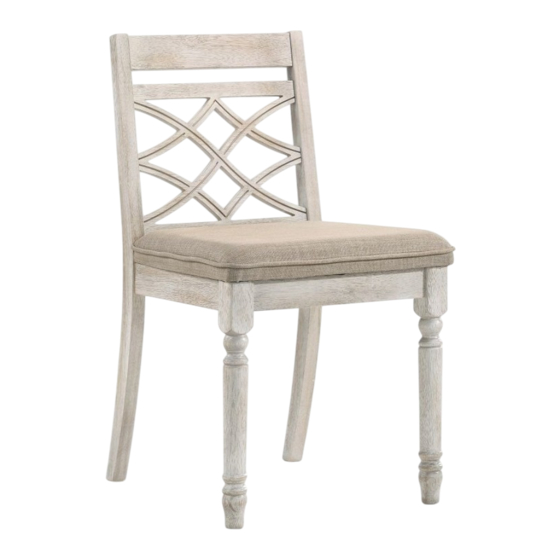

MODEL# DN01806 HAVANA DINING CHAIR
Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware. Compare
with all parts list to be sure all parts are present. If any part(s) are missing or damaged, please contact your local furniture
dealer. For efficient and speedy service, please indicate the model number and code letter of part(s) needed.
DESCRIPTION
P1
P2
P3
HAREWARES REQUIRED
H1
H2
H3
H4
H5
Attention:
*** Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled.
Carefully check parts and packing materials prior to ordering replacements.
***Do not fully tighten screws until fully assembled***
CHAIR SEAT
FRONT LEG
BACK LEG FRAME
JCBC BOLT M6 x 35MM - 4 PCS
JCBC BOLT M6 x 80MM - 16 PCS
SPRING WASHER - 20 PCS
FLAT WASHER - 20 PCS
ALLEN KEY - 1 PC
COMPONENT PARTS
PART NAME
Q'TY (PCS)
2
4
2
PAGE 1/2
