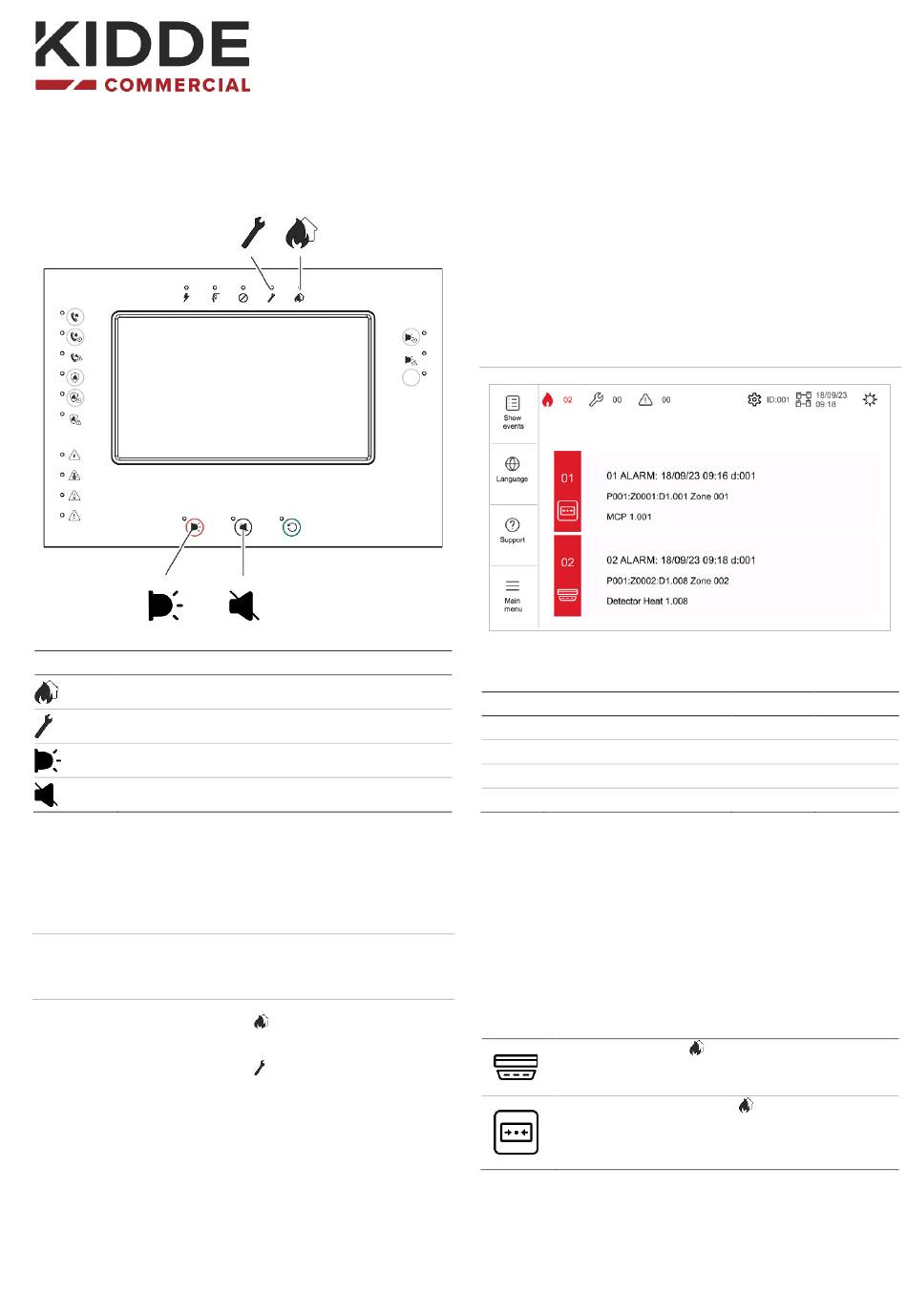

2X-AT Series Quick Operation Guide
Icon Description
Fire Alarm LED
Fault LED
Sounder Start/Stop button and LED
Panel Silence button and LED
If you hear the buzzer
Determine the cause of the buzzer
WARNING: Depending on your fire alarm system
configuration, the buzzer may be your first indication of a fire
alarm.
If the buzzer is sounding and the
then it's a fire alarm.
If the buzzer is sounding and the
fault.
© 2024 Carrier. All rights reserved.
LED is flashing or steady,
LED is steady, then it's a
For a fire alarm
1. Determine the location of the fire
Check the location of the fire. The touchscreen displays
information from the first and last zones to report an alarm.
Figure 1: Alarm location
Alarm location details are indicated as follows.
Letter Description
d Number of devices in alarm
P Control panel ID
Z Zone
D Loop and device
In alarm 01 in Figure 1 (P001:Z0001:D1.001), an alarm has
been activated by device 001 on loop 1 in zone 1 on control
panel 001. One device is in alarm in the corresponding zone.
In alarm 02 in Figure 1 (P001:Z0002:D1.008), an alarm has
been activated by device 008 on loop 1 in zone 2 on control
panel 001. One device is in alarm in the corresponding zone.
2. Determine the source of the fire alarm
The following icons indicate the source of the fire alarm.
Detector alarm. If the
icon is displayed, then the system has detected a
detector alarm (see alarm 02 in Figure 1).
Manual call point alarm. If the
manual call point icon is displayed, then the system has
detected a manual call point alarm (see alarm 01 in
Figure 1).
1 / 2
Alarm 01 Alarm 02
d:001 d:001
P001 P001
Z0001 Z0002
D1:001 D1.008
LED is flashing and the detector
LED is steady, and the
P/N 00-3280-508-4203-01 • ISS 19JAN24
