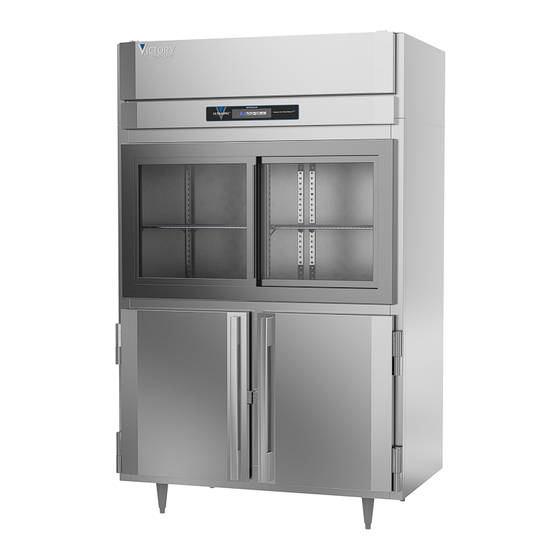

Summary of Contents for Victory DRS Series
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all Hydrocarbon DRS and DRSA Refrigerator Models 809-199A Rev 07/13/2022 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: Victoryrefrigeration.com...
-
Page 2: Table Of Contents
If you the high standards set by Victory! You have made a have any questions, Please call our Technical Service quality investment that with proper maintenance will give Department at (800) 684-1199. -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Victory factory service parts. Use of non • Store gasoline, kerosene or any other flammable OEM parts can be dangerous because of the design material near the cabinet. - Page 4 User Manual for DRS and DRSA Refrigerators Victory SAFETY CAUTION: If it is necessary to move the Refrigerator after removal from the skid, remove CAUTION all doors and carefully push the unit at a point of no more than 36” from the bottom to avoid damage.
-
Page 5: Important Information
User Manual for DRS and DRSA Refrigerators Victory IMPORTANT INFORMATION This unit is intended to be used in a commercial application. That includes bars and restaurants. If installed in a residence some commercial service companies may not be able to service it on site. -
Page 6: Product Information
User Manual for DRS and DRSA Refrigerators Victory PRODUCT INFORMATION Full Cabinet Dimensions Refrigerant Type / Model Sections Door Type Load w x d x h (Inches) Charge (g) / Charge (oz.) Amps Full Height Sliding DRS(A)-2D-S1-LD-HC 52 1/8 x 33 5/8 x 84 1/4... -
Page 7: Clearance And Placement
User Manual for DRS and DRSA Refrigerators Victory CLEARANCE AND PLACEMENT 12" AT 0" AT BACK 0" AT 0" AT SIDES SIDES Placement Consider the following when selecting a location for your Refrigerator: Clearance: • 12 in. at the top •... -
Page 8: Unpacking And Set Up
User Manual for DRS and DRSA Refrigerators Victory UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. -
Page 9: Shelf Installation
9. Do NOT overload the shelves. The unit is designed to need to be squeezed slightly during installation. use all shelves that are supplied in an equally spaced manner. Contact Victory customer service if fewer 4. Install all remaining clips. shelves or a different configuration to ensure shelf overloading will not occur. -
Page 10: Electrical
Cabinet MUST NOT SHARE A RECEPTACLE with another issue in a location that requires GFCI circuit protection, piece of equipment Victory recommends using a HUBBELL Model Number Check that all clearances are in line with the GFRST83W 20A Heavy Duty Hospital Grade Self-Test GFCI Receptacle. -
Page 11: Using The Unit
User Manual for DRS and DRSA Refrigerators Victory USING THE UNIT Operation is simple, just keep it connected to the correct The temperature was set at the factory at 38 F, but you º power supply and the refrigerator will maintain the can adjust it to your own selected temperature. -
Page 12: Sequence Of Operations - Refrigerator
User Manual for DRS and DRSA Refrigerators Victory SEQUENCE OF OPERATIONS COMPONENT OPERATION CONTROLLER ACTION OPERATION CONTROLLER ACTION COMPRESSOR Compressor turns The Compressor Compressor turns The Compressor on when the cabinet Contact is energized off when the cabinet Contact is de-... -
Page 13: Control Panel Display
User Manual for DRS and DRSA Refrigerators Victory CONTROL PANEL DISPLAY Control Panel Indicators Icon Operation Meaning Compressor Permanently On Compressor On Blinking Delay, protection or start-up blocked Otherwise Defrost Permanently On Defrost active Blinking Activated manually or from Digital input... - Page 14 User Manual for DRS and DRSA Refrigerators Victory Relay/Probe Terminal Compressor 10,11 Out 1 Evaporator Fan 4, 5 Out 2 Defrost Element 7, 9 Out 3 Light (or alarm relay if electronic Lock model) 13, 14 Out 4 Air/control probe 18, 19 PB1 –...
-
Page 15: Electronic Controller Parameter Changes
User Manual for DRS and DRSA Refrigerators Victory ELECTRONIC CONTROLLER PARAMETER CHANGES Note: Key pad has a 3 second lock feature. Set key must be pressed for 3 seconds and released before keys will become active. Key pad will beep when unlocked and normal key pad operations performed. -
Page 16: Setting The Real Time Clock
User Manual for DRS and DRSA Refrigerators Victory SETTING THE REAL TIME CLOCK To set the real time clock, press and release the set button to enter the machine status menu. “Set will appear on the menu. Use the up and down button to scroll to the real time clock menu folder. “Rtc” will appear on the display. - Page 17 User Manual for DRS and DRSA Refrigerators Victory Rev. 07/22 Victory...
- Page 18 User Manual for DRS and DRSA Refrigerators Victory Code Description Description Relay Reset Parameters involved to Enable alarm Probe Pb1 failure Active Automatic Ont, Oft Probe Pb2 failure Active Automatic Ont, Oft Probe Pb3 failure Active Automatic Ont, Oft Probe Pb4 failure...
-
Page 19: Cleaning And Maintenance
User Manual for DRS and DRSA Refrigerators Victory CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Monthly inspection, Daily inspection, check Annually cleaning as required that hinges are tight to Weekly interior the cabinet. -
Page 20: Condenser Cleaning
User Manual for DRS and DRSA Refrigerators Victory CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient 4. Remove the panel stand from its clip and secure into operation. the notch in the front right corner of the raised panel 1. -
Page 21: Methods For Cleaning Stainless Steel
User Manual for DRS and DRSA Refrigerators Victory METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 22: Help
User Manual for DRS and DRSA Refrigerators Victory HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Replace Unit not plugged in. fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 23: For The Service Tech - R290
User Manual for DRS and DRSA Refrigerators Victory FOR THE SERVICE TECH - R290 Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems. Here are some critical service items. Other Information: This list does not qualify anyone to service the unit. It is a Evacuation: It is critical that a refrigeration system be reminder and checklist for the service tech. -
Page 24: For The Service Tech - Wiring Diagram
User Manual for DRS and DRSA Refrigerators Victory FOR THE SERVICE TECH - WIRING DIAGRAM BLACK WHITE 115VAC 60 HZ EVAP FAN RELAY CONTROL CIRCUIT COMPRESSOR DETAIL CONDENSER FAN START RELAY S.C. COMP R.C. COMP RELAY HIGH PRESSURE LIMIT SWITCH... -
Page 25: Limited Warranty
Victory® Refrigeration (Victory) warrants to the original purchaser of Victory branded equipment, that Proof of purchase must be supplied to Victory to such equipment is free from defects in material and validate the warranty. This warranty is valid only... -
Page 26: Limited Warranty (Continued)
Any installation that requires extra work, and/ or travel, to gain access to the unit for service is Victory or its affiliates shall not be liable for any the sole responsibility of the equipment purchaser. indirect, incidental, special or consequential... -
Page 27: Warranty Registration
User Manual for DRS and DRSA Refrigerators Victory Warranty Registration Register your product online at Victory.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
