Page 1 PBL-6201v2 (NL-3131u) Wi-Fi 6E Gateway User Manual Version A1.0 June 27, 2023 261103-031...
Page 2 Preface This manual provides information related to the installation and operation of this device. The individual reading this manual is presumed to have a basic understanding of telecommunications terminology and concepts. If you find the product to be inoperable or malfunctioning, please contact technical support for immediate service by email at INT-support@comtrend.com For product update, new product release, manual revision, or software upgrades,...
Page 3: User Information
WARNING Disconnect the power line from the device before servicing  For indoor use only  Do NOT open the casing  Do NOT use near water  Keep away from the fire  For use in ventilated environment / space ...
Page 4: Radiation Exposure
This Class B digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s).
Page 5 Copyright Copyright©2023 Comtrend Corporation. All rights reserved. The information contained herein is proprietary to Comtrend Corporation. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of Comtrend Corporation.
Page 6: Warranty Disclaimer
Please send us a written request by email or mail to one of the following addresses: Email: Comtrend support team - opensource@comtrend.com Postal: Comtrend Corporation 3F-1, 10 Lane 609, Chongxin Rd., Section 5, Sanchong Dist, New Taipei City 241405,...
Page 7 Protect Our Environment This symbol indicates that when the equipment has reached the end of its useful life, it must be taken to a recycling centre and processed separate from domestic waste. The cardboard box, the plastic contained in the packaging, and the parts that make up this router can be recycled in accordance with regionally established regulations.
Page 8: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ......................10 CHAPTER 2 INSTALLATION ......................11 2.1 H ......................... 11 ARDWARE ETUP 2.1.1 Back Panel ..........................12 2.1.2 Front Panel ..........................14 CHAPTER 3 WEB USER INTERFACE .................... 16 3.1 D ........................16 EFAULT ETTINGS 3.2 IP C...
Page 9 5.8 W ............................ 84 5.9 A ..........................85 TEND CHAPTER 6 ADVANCED SETUP ..................... 86 6.1 S ............................86 ECURITY 6.1.1 IP Filtering ..........................86 6.1.2 MAC Filtering ........................90 6.2 Q S) ......................92 UALITY OF ERVICE 6.2.1 QoS Queue ..........................93 6.2.1.1 QoS Queue Configuration ....................
Page 10 8.6 I ........................... 167 NTERNET 8.7 A ........................168 CCESS ONTROL 8.7.1 Accounts ..........................168 8.7.2 Services ..........................169 8.7.3 IP Address ......................... 170 8.8 U ........................171 PDATE OFTWARE 8.9 R ............................172 EBOOT CHAPTER 9 LOGOUT ........................173 APPENDIX A - FIREWALL ......................
Page 11: Chapter 1 Introduction

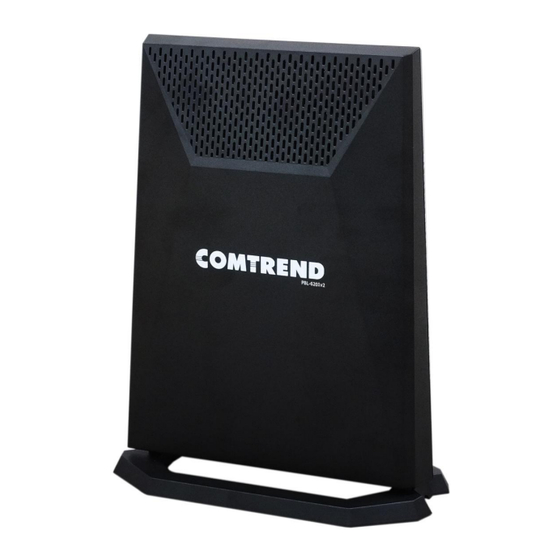

Chapter 1 Introduction PBL-6201v2 is a triple band Wi-Fi 6E Gateway with an updated silicon platform. It provides a 2.5 Giga Ethernet WAN port and four Giga Ethernet ports, supporting Wi-Fi 6 (802.11ax) Wireless solution on frequency band of 2.4GHz (4T4R) and 5GHz (4T4R).
Page 12: Chapter 2 Installation
Chapter 2 Installation 2.1 Hardware Setup Non-stackable This device is not stackable – do not place units on top of each other, otherwise damage could occur. Follow the instructions below to complete the hardware setup.
Page 13: Back Panel
2.1.1 Back Panel The figure below shows the back panel of the device. Connect to the DSL port with the DSL RJ14 cable. The PBL-6201v2 supports the following DSL profiles - ADSL : ADSL, ADSL 2, ADSL 2+. VDSL : 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a and 35b.
Page 14: Ethernet (Lan) Ports
2.1.2 Front Panel for details). NOTE: If pressed down for more than 60 seconds, the PBL-6201v2 will go into a firmware update state (CFE boot mode). The firmware can then be updated using an Internet browser pointed to the default IP address.
Page 15: Front Panel
2.1.2 Front Panel The front panel LED indicators are shown below and explained in the following table. This information can be used to check the status of the device and its connections. Color Mode Function IP connected and no traffic detected (the device has a WAN IP address from IPCP or DHCP is up or a static IP address is configured, PPP negotiation is successfully complete.
Page 16 Device attempted to become IP connected and failed (no DHCP response, no PPPoE response, PPPoE authentication failed, no IP address from IPCP, etc.) xDSL (DSL0) Link is established. xDSL (DSL0) Link is not established. DSL0 Green xDSL (DSL0) Link is training. Blink xDSL (DSL1) Link is established.
Page 17: Chapter 3 Web User Interface
Chapter 3 Web User Interface This section describes how to access the device via the web user interface (WUI) using an Internet browser such as Internet Explorer (version 5.0 and later). 3.1 Default Settings The factory default settings of this device are summarized below. ...
Page 18: Ip Configuration
3.2 IP Configuration DHCP MODE When the PBL-6201v2 powers up, the onboard DHCP server will switch on. Basically, the DHCP server issues and reserves IP addresses for LAN devices, such as your PC. To obtain an IP address from the DCHP server, follow the steps provided below.
Page 19 STATIC IP MODE In static IP mode, you assign IP settings to your PC manually. Follow these steps to configure your PC IP address to use subnet 192.168.1.x. NOTE: The following procedure assumes you are running Windows. However, the general steps involved are similar for most operating systems (OS). Check your OS support documentation for further details.
Page 20: Login Procedure
3.3 Login Procedure Perform the following steps to login to the web user interface. NOTE: The default settings can be found in section 3.1 Default Settings. STEP 1: Start the Internet browser and enter the default IP address for the device in the Web address field.
Page 21 STEP 3: After successfully logging in for the first time, you will reach this screen. You can also reach this page by clicking on the following icon located at the top of the screen.
Page 22: Chapter 4 Device Information
Chapter 4 Device Information You can reach this page by clicking on the following icon located at the top of the screen. The web user interface window is divided into two frames, the main menu (on the left) and the display screen (on the right). The main menu has several options and selecting each of these options opens a submenu with more selections.
Page 23 This screen shows hardware, software, IP settings and other related information.
Page 24: Wan
4.1 WAN Select WAN from the Device Info submenu to display the configured PVC(s). Refresh – Click this button to refresh the screen. DHCP Release – Click this button to release the IP through IPoE service. DHCP Renew - Click this button to refresh an IP through IPoE service. Item Description Interface...
Page 25 Shows Network Address Translation (NAT) status Firewall Shows the status of Firewall IPv4 Status Lists the status of IPv4 connection if WAN enabled IPv4 IPv4 Address Shows the WAN IPv4 address Shows the PPP connection status connect/disconnect IPv6 Status Lists the status of IPv6 connection if WAN enabled IPv6 IPv6 Address Shows the WAN IPv6 address...
Page 26: Statistics
4.2 Statistics This selection provides LAN and WAN statistics. NOTE: These screens are updated automatically every 15 seconds. Click Reset Statistics to perform a manual update. 4.2.1 LAN Statistics This screen shows data traffic statistics for each LAN interface. Item Description Interface LAN interface(s)
Page 27: Wan Service
4.2.2 WAN Service This screen shows data traffic statistics for each WAN interface. Item Description Interface WAN interfaces Description WAN service label Received/Transmitted - Bytes Number of Bytes - Pkts Number of Packets - Errs Number of packets with errors - Drops Number of dropped packets...
Page 28: Xtm Statistics
4.2.3 XTM Statistics The following figure shows ATM (Asynchronous Transfer Mode)/PTM (Packet Transfer Mode) statistics. XTM Interface Statistics Item Description Port Number ATM PORT (0-1) In Octets Number of octets received over the interface Out Octets Number of octets transmitted over the interface In Packets Number of packets received over the interface Out Packets...
Page 29: Xdsl Statistics
4.2.4 xDSL Statistics The xDSL Statistics screen displays information corresponding to the xDSL type. The two examples below (VDSL & ADSL) show this variation. VDSL2...
Page 30 ADSL2+ Click the Reset Statistics button to refresh this screen. Item Description Mode VDSL, VDSL2 Traffic Type ATM, PTM...
Page 31 Status Lists the status of the DSL link Link Power State Link output power state phyR Status Shows the status of PhyR™ (Physical Layer Re-Transmission) impulse noise protection Line Coding (Trellis) Trellis On/Off SNR Margin (0.1 dB) Signal to Noise Ratio (SNR) margin Attenuation (0.1 dB) Estimate of average loop attenuation in the downstream direction...
Page 32 Item Description Super Frames Total number of super frames Super Frame Errors Number of super frames received with errors RS Words Total number of Reed-Solomon code errors RS Correctable Errors Total Number of RS with correctable errors RS Uncorrectable Errors Total Number of RS words with uncorrectable errors Item Description...
Page 33 Total SES Total Number of Severely Errored Seconds Total UAS Total Number of Unavailable Seconds xDSL BER TEST Click xDSL BER Test on the xDSL Statistics screen to test the Bit Error Rate (BER). A small pop-up window will open after the button is pressed, as shown below. Click Start to start the test or click Close to cancel the test.
Page 34 xDSL TONE GRAPH Click Draw Graph on the xDSL Statistics screen and a pop-up window will display the xDSL statistics graph, including SNR, Bits per tone, QLN and Hlog of the xDSL line connection, as shown below.
Page 35: Route
4.3 Route Choose Route to display the routes that the PBL-6201v2 has found. Item Description Destination Destination network or destination host Gateway Next hop IP address Subnet Subnet Mask of Destination Mask Flag U: route is up !: reject route...
Page 36: Arp
4.4 ARP Click ARP to display the ARP information. Item Description IP address Shows IP address of host PC Flags Complete, Incomplete, Permanent, or Publish HW Address Shows the MAC address of host PC Device Shows the connection interface...
Page 37: Dhcp
4.5 DHCP Click DHCP to display all DHCP Leases. Item Description Hostname Shows the device/host/PC network name MAC Address Shows the Ethernet MAC address of the device/host/PC IP Address Shows IP address of device/host/PC Address Shows IP type of device/host/PC, could be DHCP/Static Source Interface Shows interface type of device/host/PC, could be...
Page 38: Nat Session
4.6 NAT Session This page displays all NAT connection session including both UPD/TCP protocols passing through the device. Click the “Show All” button to display the following. Item Description Source IP The source IP from which the NAT session is established Source Port The source port from which the NAT session is established Destination IP...
Page 39: Igmp Info
4.7 IGMP Info Click IGMP Info to display the list of IGMP entries broadcasting through the IGMP proxy enabled WAN connection. Item Description Interface The Source interface from which the IGMP report was received The WAN interface from which the multicast traffic is received Groups The destination IGMP group address...
Page 40: Cpu & Memory
4.8 CPU & Memory Displays the system performance graphs. Shows the current loading of the CPU and memory usage with dynamic updates.
Page 41: Network Map
4.9 Network Map The network map is a graphical representation of router’s wan status and LAN devices.
Page 42: Wireless
4.10 Wireless 4.10.1 Station Info This page shows authenticated wireless stations and their status. Consult the table below for descriptions of each column heading. Item Description MAC Address Lists the MAC address of all the stations. Association Time Lists all the stations that are associated with the Access Point, along with the amount of time since packets were transferred to and from each station.
Page 43: Wifi Insight
4.10.2 WiFi Insight This page allows you to configure the WiFi Insight system. The WiFi Insight system allows the wireless interface to collect beacon data from nearby devices and analyze traffic on the connected stations. This data collection requires memory storage and therefore needs to be configured prior to use.
Page 44: Export Database
Counters All counter options are selected (checked) by default. Uncheck any counters that that you do not want collected by the WiFi insight system. Click the Submit button to save your settings. Export Database Click the Save Database to File button to export and save the collected Wi-Fi data information file.
Page 45: Site Survey
4.10.2.1 Site Survey The graph displays wireless APs found in your neighborhood by channel collected under the WiFi insight system. 2.4GHz Select the wireless network (2.4GHz in above example) that you wish to monitor from the drop-down menu. 1. Select the channel that you wish to monitor from the drop-down menu. 2.
Page 46 Bandwidth Bandwidth of each SSID [MHz] Center Channel Center Channel of each SSID Control Channel Control Channel of each SSID Max PHY Rate Max PHY Rate of each SSID [Mbps] 802.11 802.11 type of each SSID Security Wi-Fi password encryption type of each SSID...
Page 47: Channel Statistics
4.10.2.2 Channel Statistics This page allows you to see the Wi-Fi and Non Wi-Fi interference, and also the available capacity. This page is broken down into individual parts below. Click on the drop-down menu to select 2.4GHz or 5GHz interface. 2.4 GHz Shows the bandwidth that is available for use in each channel.
Page 48 Shows interference level in each channel. Shows the highest RSSI (Received Signal Strength Indicator) on each adjacent channel. Adjacent AP and associated stations are displayed for checking interference on those channels.
Page 49 5 GHz Shows the bandwidth that is available for use in each channel.
Page 50 Shows interference level in each channel. Shows the highest RSSI (Received Signal Strength Indicator) on each adjacent channel. Adjacent AP and associated stations are displayed for checking interference on those channels. For each AP, the graph shows the control channel and extension channels. Extension channel is any channel spanned by the AP that is not a control channel.
Page 51: Metrics (Advanced Troubleshooting)
4.10.2.3 Metrics (Advanced Troubleshooting) In this page you will see most of the counters like AMPDU(if available), Chanim, Glitch and Packet Queue Statistics. This page is broken down into individual parts below. Click on the drop-down menu to select 2.4GHz or 5GHz interface. Select the counter of interest to monitor the statistics received over time in the chanim statistics graph.
Page 52: Configure
4.10.2.4 Configure This page allows you to configure the WiFi Insight system. The WiFi Insight system allows the wireless interface to collect beacon data from nearby devices and analyze traffic on the connected stations. This data collection requires memory storage and therefore needs to be configured prior to use.
Page 53 Counters All counter options are selected (checked) by default. Uncheck any counters that that you do not want collected by the WiFi insight system. Click the Submit button to save your settings. Export Database Click the Save Database to File button to export and save the collected Wi-Fi data information file.
Page 54: Topology
4.11 Topology This displays the arrangement of devices of the communication network. The dotted line represents a wireless connection, whereas a solid line represents a wired connection. Click the Device Scan button to scan for the network topology. Consult the table below for descriptions of each column heading. Item Description Topology ID...
Page 55 Device Connected Displays the number of devices connected Ping Click the button and follow the onscreen instructions to ping a device.
Page 56: Chapter 5 Basic Setup
Chapter 5 Basic Setup You can reach this page by clicking on the following icon located at the top of the screen. This will bring you to the following screen.
Page 57: Wan Setup
5.1 WAN Setup Click WAN Setup on the on the left of your screen. Add or remove ETH WAN interface connections here. Click Add to create a new Layer 2 Interface (see Appendix F - Connection Setup). To remove a connection, click the Remove button.
Page 58: Wan Service Setup
5.1.1 WAN Service Setup This screen allows for the configuration of WAN interfaces. Click the Add button to create a new connection. For connections on ATM or PTM or ETH WAN interfaces see Appendix F - Connection Setup. To remove a connection, select its Remove column radio button and click Remove. Item Description Interface...
Page 59 Edit Click the Edit button to make changes to the WAN interface To remove a connection, select its Remove column radio button and click Remove. NOTE: Up to 16 PVC profiles can be configured and saved in flash memory.
Page 60: Nat
5.2 NAT For NAT features under this section to work, NAT must be enabled in at least one PVC. 5.2.1 Virtual Servers Virtual Servers allow you to direct incoming traffic from the WAN side (identified by Protocol and External port) to the internal server with private IP addresses on the LAN side.
Page 61 Consult the table below for item descriptions. Item Description Use Interface Select a WAN interface from the drop-down menu. If you choose All Interface, server rules will be created for all WAN interfaces. Select a Service User should select the service from the list. Custom Service User can enter the name of their choice.
Page 62: Port Triggering
5.2.2 Port Triggering Some applications require that specific ports in the firewall be opened for access by the remote parties. Port Triggers dynamically 'Open Ports' in the firewall when an application on the LAN initiates a TCP/UDP connection to a remote party using the 'Triggering Ports'.
Page 63 Consult the table below for item descriptions. Item Description Use Interface Select a WAN interface from the drop-down menu. Select an User should select the application from the list. Application User can enter the name of their choice. Custom Application Trigger Port Start Enter the starting trigger port number (when you select custom application).
Page 64: Dmz Host
5.2.3 DMZ Host The DSL router will forward IP packets from the WAN that do not belong to any of the applications configured in the Virtual Servers table to the DMZ host computer. To Activate the DMZ host, enter the DMZ host IP address and click Save/Apply. To Deactivate the DMZ host, clear the IP address field and click Save/Apply.
Page 65: Alg/Pass-Through
5.2.4 ALG/Pass-Through Support ALG Pass-through for the listed protocols. To allow/deny the corresponding ALG protocol, select Enable / Disable and then click the Save button. After reboot, the protocol will be added/removed to/from the system module.
Page 66: Lan
5.3 LAN Configure the LAN interface settings and then click Apply/Save. The settings shown above are described below. GroupName: Select an Interface Group. LAN INTERFACE IP Address: Enter the IP address for the LAN port. Subnet Mask: Enter the subnet mask for the LAN port. Enable IGMP Snooping: Enable by checking the checkbox .
Page 67 Enable IGMP LAN to LAN Multicast: Select Enable from the drop-down menu to allow IGMP LAN to LAN Multicast forwarding. Enable LAN side firewall: Enable by ticking the checkbox . DHCP Server: To enable DHCP, select Enable DHCP server and enter Start and End IP addresses and the Leased Time.
Page 68: Lan Vlan Setting
5.3.1 Lan VLAN Setting The CPE will tag VLAN on specific LAN port(s) when this feature is used. To enable VLAN Mode, check the checkbox and click the Apply/Save button. Click the Add button to display the following. Item Description Vlan ID The VLAN ID to be supported on the LAN port.
Page 69: Lan Ipv6 Autoconfig
5.3.2 LAN IPv6 Autoconfig Configure the LAN interface settings and then click Save/Apply. The settings shown above are described below. Static LAN IPv6 Address Configuration Item Description Interface Address Configure static LAN IPv6 address and subnet (prefix length is required): prefix length...
Page 70 IPv6 LAN Applications Item Description Stateless Use stateless configuration Stateful Use stateful configuration Start interface ID: Start of interface ID to be assigned to dhcpv6 client End interface ID: End of interface ID to be assigned to dhcpv6 client Leased Time (hour): Lease time for dhcpv6 client to use the assigned IP address Item...
Page 71: Upnp
5.3.3 UPnP Select the checkbox  provided and click Apply/Save to enable UPnP protocol.
Page 72: Bark
5.4 Bark This page allows you to enable/disable bark feature. Bark has parental control features to provide online safety for kids. Step 1: Check the checkbox and click the Apply/Save button to enable this feature. Step 2: Click Management/Internet Time, and check the “Automatically synchronize with Internet time servers”...
Page 73 Step 3: Click Device Info/Summary to check that the CPE date and time are correct. Note: For more information, contact your local ISP / Comtrend support about Bark options. https://www.bark.us/faq/...
Page 74: Parental Control
5.5 Parental Control This selection provides WAN access control functionality. 5.5.1 Time Restriction This feature restricts access from a LAN device to an outside network through the device on selected days at certain times. Make sure to activate the Internet Time server synchronization as described in section 8.6 Internet Time, so that the...
Page 75: Url Filter
User Name: A user-defined label for this restriction. Browser's MAC Address: MAC address of the PC running the browser. Other MAC Address: MAC address of another LAN device. Days of the Week: The days the restrictions apply. Start Blocking Time: The time the restrictions start. End Blocking Time: The time the restrictions end.
Page 76 A maximum of 100 entries can be added to the URL Filter list.
Page 77: Home Networking
5.6 Home Networking 5.6.1 Print Server This page allows you to enable or disable printer support. Please reference Appendix E to see the procedure for enabling the Printer Server. 5.6.2 DLNA Enabling DLNA allows users to share digital media, like pictures, music and video, to other LAN devices from the digital media server.
Page 78: Storage Service
5.6.3 Storage Service The Storage service allows you to use Storage devices with modem to be more easily accessed. 5.6.3.1 Storage Device Info This page also displays storage devices attached to the USB host. Display after storage device attached (for your reference).
Page 79 5.6.3.2 Storage User Accounts Add a storage account to access the USB device for the samba access system. Click the Add button to display the following. volumeName would be disk1_1 if only 1 USB has been plugged into the device. In the boxes provided, enter the user name, password and volume name on which the home directory is to be created.
Page 80: Usb Speed
In any windows folder, enter the address \\192.168.1.1 to access the samba folder created. A password prompt will show. Enter username password as configured. Access \\192.168.1.1 again (or refresh the screen), the user folder will now be available for access. 5.6.4 USB Speed This page allows you to enable / disable USB 3.0 device support.
Page 81: Wireless
5.7 Wireless 5.7.1 SSID This page allows you to configure the Virtual interfaces for each Physical interface. Click the Apply button to apply your changes. The settings shown above are described below. Item Description Wireless Interface Select which wireless interface to configure BSS-MAC (SSID) Select desired BSS to configure BSS Enabled...
Page 82 BSS Max Associations Limit Sets the maximum associations for this BSS WMM Advertise When WMM is enabled for the radio, selecting On allows WMM to be advertised in beacons and probes for this BSS. Off disables advertisement of WMM in beacons and probes. Choose On to enable Wireless Multicast Forwarding on this BSS.
Page 83: Security
5.7.2 Security This page allows you to configure security for the wireless LAN interfaces. Click the Apply button to apply your changes. For information on each parameter, move the cursor over the parameter that you are interested in (as shown here). Item Description Wireless...
Page 84 WPA2 Enable/disable WPA2 authenticated key management suite WPA2-PSK Enable/disable WPA2-PSK authenticated key management suite WPA3-SAE Enable/disable WPA3-SAE authenticated key management suite WPA3 Enable/disable WPA3 authenticated key management suite Enable/disable OWE authenticated key management suite Enable/disable DPP authenticated key management suite WPA2 Enable/disable WPA2 Preauthenticated key Preauthentication...
Page 85: Wifi Mesh
Network Set the Network Key Re-authentication interval in Re-auth seconds. Leave blank or set to zero to disable periodic Interval network re-authentication. 5.8 WiFi Mesh WiFiXtend A Comtrend proprietary WiFi Mesh solution that makes the slave devices automatically synchronize, and makes slave devices choose the best uplink path in a covered network environment.
Page 86: Autoxtend
5.9 AutoXtend AutoXtend is a function to construct and optimize a mesh-network. To select information to synchronize with all mesh-network nodes, please check the desired item and click the Apply/Save button. To enable the AutoXtend features, check the required checkboxes and click the Apply/Save button.
Page 87: Chapter 6 Advanced Setup
Chapter 6 Advanced Setup You can reach this page by clicking on the following icon located at the top of the screen. 6.1 Security For detailed descriptions, with examples, please consult Appendix A - Firewall. 6.1.1 IP Filtering This screen sets filter rules that limit IP traffic (Outgoing/Incoming). Multiple filter rules can be set and each applies at least one limiting condition.
Page 88 Click the Apply/Save button to apply and save your changes. Consult the table below for item descriptions. Item Description Filter Name The filter rule label (user defined) IP Version Select from the drop down menu Protocol Set the traffic type (TCP, TCP/UDP, UDP, or ICMP) that the rule will apply to Source IP address Enter source IP address for the IP filter...
Page 89 INCOMING IP FILTER By default, all incoming IP traffic is blocked, but IP traffic can be allowed with filters. To add a filter (to allow incoming IP traffic), click the Add button. On the following screen, enter your filter criteria and then click Apply/Save. Consult the table below for item descriptions.
Page 90 Item Description Filter Name The filter rule label (user defined) IP Version Select from the drop down menu Protocol Set the traffic type (TCP, TCP/UDP, UDP, or ICMP) that the rule will apply to Source IP address Enter source IP address for the IP filter Source Port (port or port:port) Enter source port number or range for the IP filter...
Page 91: Mac Filtering
6.1.2 MAC Filtering NOTE: This option is only available in WDS mode. Other modes use IP Filtering perform a similar function. Each network device has a unique 48-bit MAC address. This can be used to filter (block or forward) packets based on the originating device. MAC filtering policy and rules for the PRT-6302 can be set according to the following procedure.
Page 92 Click Save/Apply to save and activate the filter rule. Consult the table below for detailed item descriptions. Item Description Protocol Type Select from the drop down menu the protocol (PPPoE, IPv4, IPv6, AppleTalk, IPX, NetBEUI, IGMP) that will apply to this rule. Destination MAC Address Defines the destination MAC address Source MAC Address...
Page 93: Quality Of Service (Qos)
6.2 Quality of Service (QoS) NOTE: QoS must be enabled in at least one PVC to display this option. (See Appendix F - Connection Setup for detailed PVC setup instructions). To Enable QoS tick the checkbox and select a Default DSCP Mark. Click Apply/Save to activate QoS.
Page 94: Qos Queue
6.2.1 QoS Queue 6.2.1.1 QoS Queue Configuration Configure queues with different priorities to be used for QoS setup. In ATM mode, a maximum of 16 queues can be configured. In PTM mode, a maximum of 8 queues can be configured. For each Ethernet interface, a maximum of 8 queues can be configured.
Page 95 To remove queues, check their remove-checkboxes (for user created queues), then click the Remove button.
Page 96 The Enable button will scan through every queue in the table. Queues with the enable-checkbox checked will be enabled. Queues with the enable-checkbox un-checked will be disabled. The enable-checkbox also shows status of the queue after page reload. Note that if WMM function is disabled in the Wireless Page, queues related to wireless will not take effect.
Page 97 WRED: Weighted RED, the assigned monitoring queue would be given different priority and threshold to ensure various priority queues would be served fairly. After selecting an Interface the following will be displayed. The precedence list shows the scheduler algorithm for each precedence level. Queues of equal precedence will be scheduled based on the algorithm.
Page 98: Wlan Queue
6.2.1.2 Wlan Queue Displays the list of available wireless queues for WMM and wireless data transmit priority.
Page 99: Qos Classification
6.2.2 QoS Classification The network traffic classes are listed in the following table. Click Add to configure a network traffic class rule and Enable to activate it. To delete an entry from the list, click Remove. This screen creates a traffic class rule to classify the upstream traffic, assign queuing priority and optionally overwrite the IP header DSCP byte.
Page 100 Consult the table below for detailed item descriptions. Item Description Traffic Class Name Enter a name for the traffic class. Rule Order Last is the only option. Rule Status Disable or enable the rule. Classification Criteria Ingress Interface Select an interface: (i.e. LAN, WAN, local, ETH1, ETH2, ETH3, wl0) Ether Type Set the Ethernet type (e.g.
Page 101 - Class vlan packets egress to a non-vlan interface will have the packet p-bits re-marked by the class rule p-bits. No additional vlan tag is added. - Class non-vlan packets egress to a vlan interface will be tagged with the interface VID and the class rule p-bits.
Page 102: Qos Port Shaping
6.2.3 QoS Port Shaping QoS port shaping supports traffic shaping of the Ethernet interface. Input the shaping rate and burst size to enforce QoS rule on each interface. If "Shaping Rate" is set to "-1", it means no shaping and "Burst Size" will be ignored. Click Apply/Save to apply and save the settings.
Page 103: Routing
6.3 Routing The following routing functions are accessed from this menu: Default Gateway, Static Route, Policy Routing and RIP. NOTE: In WDS mode, the RIP menu option is hidden while the other menu options are shown but ineffective. 6.3.1 Default Gateway The default gateway interface list can have multiple WAN interfaces served as system default gateways but only one will be used according to the priority with the first being the highest and the last one the lowest priority if the WAN interface is...
Page 104: Static Route
6.3.2 Static Route This option allows for the configuration of static routes by destination IP. Click Add to create a static route or click Remove to delete a static route. After clicking Add the following will display. IP Version: Select the IP version to be IPv4 or IPv6. ...
Page 105: Policy Routing
6.3.3 Policy Routing This option allows for the configuration of static routes by policy. Click Add to create a routing policy or Remove to delete one. On the following screen, complete the form and click Apply/Save to create a policy. Consult the table below for detailed item descriptions.
Page 106: Rip
Item Description Policy Name Name of the route policy Physical LAN Port Specify the port to use this route policy Source IP IP Address to be routed Use Interface Interface that traffic will be directed to Default Gateway IP IP Address of the default gateway 6.3.4 To activate RIP, configure the RIP version/operation mode and select the Enabled checkbox ...
Page 107: Dns
6.4 DNS 6.4.1 DNS Server Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered. DNS Server Interfaces can have multiple WAN interfaces served as system DNS servers but only one will be used according to the priority with the first being the highest and the last one the lowest priority if the WAN interface is connected.
Page 108: Dynamic Dns
6.4.2 Dynamic DNS The Dynamic DNS service allows you to map a dynamic IP address to a static hostname in any of many domains, allowing the PRT-6302 to be more easily accessed from various locations on the Internet. To add a dynamic DNS service, click Add. The following screen will display. Click Apply/Save to save your settings.
Page 109: Dns Entries
Item Description D-DNS provider Select a dynamic DNS provider from the list Hostname Enter the name of the dynamic DNS server Interface Select the interface from the list Username Enter the username of the dynamic DNS server Password Enter the password of the dynamic DNS server 6.4.3 DNS Entries The DNS Entry page allows you to add domain name and IP address pairs desired to...
Page 110: Dsl
6.5 DSL The DSL Settings screen allows for the selection of DSL modulation modes. For optimum performance, the modes selected should match those of your ISP. DSL Mode Data Transmission Rate - Mbps (Megabits per second) G.Dmt Downstream: 12 Mbps Upstream: 1.3 Mbps G.lite Downstream: 4 Mbps...
Page 111 DSL Mode Data Transmission Rate - Mbps (Megabits per second) AnnexM Downstream: 24 Mbps Upstream: 3.5 Mbps VDSL2 Downstream: 100 Mbps Upstream: 60 Mbps VDSL Profile Maximum Downstream Throughput- Mbps (Megabits per second) Downstream 50 Downstream 50 Downstream: 50 Downstream: 50 Downstream: 68 Downstream: 68 Downstream: 100...
Page 112: Dsl Bonding
6.6 DSL Bonding This page displays the bonding status of the connected xDSL line.
Page 113: Dns Proxy
6.7 DNS Proxy DNS proxy receives DNS queries and forwards DNS queries to the Internet. After the CPE gets answers from the DNS server, it replies to the LAN clients. Configure DNS proxy with the default setting, when the PC gets an IP via DHCP, the domain name, Home, will be added to PC’s DNS Suffix Search List, and the PC can access route with “Comtrend.Home”.
Page 114: Interface Grouping
6.8 Interface Grouping Interface Grouping supports multiple ports to PVC and bridging groups. Each group performs as an independent network. To use this feature, you must create mapping groups with appropriate LAN and WAN interfaces using the Add button. The Remove button removes mapping groups, returning the ungrouped interfaces to the Default group.
Page 115 Automatically Add Clients With Following DHCP Vendor IDs: Add support to automatically map LAN interfaces to PVC's using DHCP vendor ID (option 60). The local DHCP server will decline and send the requests to a remote DHCP server by mapping the appropriate LAN interface. This will be turned on when Interface Grouping is enabled.
Page 116 For example, imagine there are 4 PVCs (0/33, 0/36, 0/37, 0/38). VPI/VCI=0/33 is for PPPoE while the other PVCs are for IP set-top box (video). The LAN interfaces are ETH1, ETH2, ETH3, and ETH4. The Interface Grouping configuration will be: 1.
Page 117: Ip Tunnel
6.9 IP Tunnel 6.9.1 IPv6inIPv4 Configure 6in4 tunneling to encapsulate IPv6 traffic over explicitly-configured IPv4 links. Click the Add button to display the following. Click Apply/Save to apply and save the settings. Item Description Tunnel Name Input a name for the tunnel...
Page 118 Mechanism Mechanism used by the tunnel deployment Associated WAN Interface Select the WAN interface to be used by the tunnel Associated LAN Interface Select the LAN interface to be included in the tunnel Manual/Automatic Select automatic for point-to-multipoint tunneling / manual for point-to-point tunneling IPv4 Mask Length The subnet mask length used for the IPv4 interface...
Page 119: Ipv4Inipv6
6.9.2 IPv4inIPv6 Configure 4in6 tunneling to encapsulate IPv4 traffic over an IPv6-only environment. Click the Add button to display the following. Click Apply/Save to apply and save the settings.
Page 120: Map
Item Description Tunnel Name Input a name for the tunnel Mechanism Mechanism used by the tunnel deployment Associated WAN Interface Select the WAN interface to be used by the tunnel Associated LAN Interface Select the LAN interface to be included in the tunnel Manual/Automatic Select automatic for point-to-multipoint...
Page 121 Click Apply/Save to apply and save the settings. The settings shown above are described below. Item Description Mechanism Choose whether to encapsulate with MAP-E or MAP-T to be used for NAT64 translation Associated WAN Lists the LAN interfaces available to be used for IP Interface Associated LAN Lists the LAN interfaces available to be used for IP...
Page 122: Ipsec
6.10 IPSec 6.10.1 IPSec Tunnel Mode Connections You can add, edit or remove IPSec tunnel mode connections from this page. Click Add New Connection to add a new IPSec termination rule. The following screen will display.
Page 123 Heading Description IPSec Connection User-defined label Name IP Version Select the corresponding IPv4 / IPv6 version for the IPSEC connection Tunnel Mode Select tunnel protocol, AH (Authentication Header) or ESP (Encapsulating Security Payload) for this tunnel. Local Gateway Select from the list of wan interface to be used as Interface gateway for the IPSEC connection Remote IPSec...
Page 124 IP Address/Subnet If you chose Single, please enter the host IP address Mask for VPN for VPN. If you chose Subnet, please enter the subnet information for VPN. Tunnel access from Specify the acceptable host IP on the remote side. remote IP addresses Choose Single or Subnet.
Page 125 Encryption Algorithm DES / 3DES / AES 128,192,256 Integrity Algorithm MD5 / SHA1 Select Diffie-Hellman Group 768 – 8192 bit Key Life Time Enter your own or use the default (1 hour) The Manual key exchange method options are summarized in the table below. Manual Key Exchange Method Encryption Algorithm DES / 3DES / AES (aes-cbc)
Page 126: Certificate
6.11 Certificate A certificate is a public key, attached with its owner’s information (company name, server name, personal real name, contact e-mail, postal address, etc) and digital signatures. There will be one or more digital signatures attached to the certificate, indicating that these entities have verified that this certificate is valid.
Page 127 CREATE CERTIFICATE REQUEST Click Create Certificate Request to generate a certificate-signing request. The certificate-signing request can be submitted to the vendor/ISP/ITSP to apply for a certificate. Some information must be included in the certificate-signing request. Your vendor/ISP/ITSP will ask you to provide the information they require and to provide the information in the format they regulate.
Page 128 IMPORT CERTIFICATE Click Import Certificate to paste the certificate content and the private key provided by your vendor/ISP/ITSP into the corresponding boxes shown below. Enter a certificate name and click the Apply button to import the certificate and its private key.
Page 129: Trusted Ca
6.11.2 Trusted CA CA is an abbreviation for Certificate Authority, which is a part of the X.509 system. It is itself a certificate, attached with the owner information of this certificate authority; but its purpose is not encryption/decryption. Its purpose is to sign and issue certificates, in order to prove that these certificates are valid.
Page 130: Multicast
6.12 Multicast Input new IGMP or MLD protocol configuration fields if you want modify default values shown. Then click Apply/Save. Multicast Precedence: Select precedence of multicast packets.
Page 131 Multicast Strict Grouping Enforcement: Enable/Disable multicast strict grouping. Item Description Default Version Define IGMP using version with video server. Query Interval The query interval is the amount of time in seconds between IGMP General Query messages sent by the router (if the router is the querier on this subnet). The default query interval is 125 seconds.
Page 132 IGMP Group Exception List / MLD Group Exception List Item Description Group Address This is the delimited list of ignored multicast addresses being queried when sending a Group-Specific or Group-and-Source-Specific Query. Mask/Mask Bits This is the delimited list of ignored multicast mask being queried when sending a Group-Specific or Group-and-Source-Specific Query.
Page 133: Wireless
6.13 Wireless 6.13.1 SSID This page allows you to configure the Virtual interfaces for each Physical interface. Click the Apply button to apply your changes. The settings shown above are described below. Item Description Wireless Interface Select which wireless interface to configure BSS-MAC (SSID) Select desired BSS to configure BSS Enabled...
Page 134 BSS Max Sets the maximum associations for this BSS Associations Limit WMM Advertise When WMM is enabled for the radio, selecting On allows WMM to be advertised in beacons and probes for this BSS. Off disables advertisement of WMM in beacons and probes.
Page 135: Security
6.13.2 Security This page allows you to configure security for the wireless LAN interfaces. Click the Apply button to apply your changes. For information on each parameter, move the cursor over the parameter that you are interested in (as shown here). The descriptions are also shown below.
Page 136 WPA-PSK Enable/disable WPA-PSK authenticated key management suite WPA2 Enable/disable WPA2 authenticated key management suite WPA2-PSK Enable/disable WPA2-PSK authenticated key management suite WPA3-SAE Enable/disable WPA3-SAE authenticated key management suite WPA3 Enable/disable WPA3 authenticated key management suite Enable/disable OWE authenticated key management suite Enable/disable DPP authenticated key management suite...
Page 137 Pairwise Key Set the Pairwise Key Rotation interval in seconds. Leave Rotation blank or set to zero to disable the rotation. Interval Network Set the Network Key Re-authentication interval in Re-auth seconds. Leave blank or set to zero to disable periodic Interval network re-authentication.
Page 138: Wps
6.13.3 WPS This page allows you to configure WPS. Click the Apply button to apply your changes. For information on each parameter, move the cursor over the parameter that you are interested in (as shown here). The descriptions are also shown below.
Page 139 Item Description Wireless Interface Select which wireless interface to configure WPS Current Mode Displays WPS current mode Enable/Disable Wi-Fi simple config mode Configuration Device WPS Displays the WPS UUID number of this device UUID Device PIN Displays the PIN number for this device. Click the Generate button to change a unique Device PIN number.
Page 140: Mac Filtering
Authorized Input the authorized station MAC address. Click the Add Station MAC Enrollee button to start a WPS process. This WPS process is only for the client whose MAC is typed in this field. WPS Current Displays the WPS current status Status List Wifi-Invite Click the Refresh button to find WiFi-Invite enabled STAs...
Page 141 Item Description Wireless Interface Select which wireless interface to configure BSS-MAC (SSID) Select desired BSS to configure MAC Restrict Select whether clients with the specified MAC address Mode are allowed or denied wireless access MAC filter based Enable/Disable MAC filter based probe response mode Probe Response MAC Addresses Allow/Deny wireless access to clients with the...
Page 142: Wds
6.13.5 WDS The wireless distribution system supports extended networking of wireless access points and can be configured as described below. Click the Apply button to apply your changes. For information on each parameter, move the cursor over the parameter that you are interested in (as shown here). The descriptions are also shown below.
Page 143 Link Direction Set the WDS link detection interval in seconds. Leave Interval blank or set to zero to disable the detection. Note: With reference to the above setup, please ensure that the conditions below are met, and both devices are rebooted afterwards: 1.
Page 144 2. Both devices need to have the same fixed channel. See section 6.13.6 Advanced for details. 3. Both devices need to have a (different) fixed access SSID (Network Name). See section 6.13.1 SSID for details.
Page 145 4. Both devices need to have WPA2-PSK enabled. See section 6.13.2 Security for details.
Page 146 5. Both devices (A & B) need to have each other’s MAC address. See section 6.13.5 WDS for details. 6. Now make sure to reboot both devices. See section 8.9 Reboot for details.
Page 147: Advanced
6.13.6 Advanced This page allows you to configure the Physical Wireless interfaces. 2.4GHz...
Page 148 5GHz Click the Apply button to apply your changes. For information on each parameter, move the cursor over the parameter that you are interested in (as shown here). The descriptions are also shown below. Item Description Wireless Interface Select which wireless interface to configure Interface Enable/Disable the wireless interface 802.11 Band...
Page 149 Bandwidth Select channel bandwidth VLAN Priority Support Advertise packet priority using VLAN tag OBSS Coexistence Enable/Disable overlapping BSS coexistence aka 20/40 coex Max Associations Limit Set the number of associations the driver should accept Xpress Technology Enable/Disable Xpress mode Airtime Fairness Enable/Disable airtime fairness between multiple links BandSteering Deamon...
Page 150 MU-MIMO TX (MU) Multi-user MIMO transmission is a set of multiple-input and multiple-output technologies for multipath wireless communication, in which multiple users or terminals, each radioing over one or more antennas, communicate with one another. Client devices that support Wi-Fi 6 are highly recommended to enable this feature.
Page 151: Wifi Mesh
6.14 WiFi Mesh WiFiXtend A Comtrend proprietary WiFi Mesh solution that makes the slave devices automatically synchronize, and makes slave devices choose the best uplink path in a covered network environment. EasyMesh The Wi-Fi EasyMesh defines the control protocols between APs, mechanisms to route traffic within the network, and the data objects necessary to enable easy onboarding, provisioning, control, and automated management of APs in a Wi-Fi EasyMesh network.
Page 152: Autoxtend
6.15 AutoXtend AutoXtend is a function to construct and optimize a mesh-network. To select information to synchronize with all mesh-network nodes, please check the desired item and click the Apply/Save button. To enable the AutoXtend features, check the required checkboxes and click the Apply/Save button.
Page 153: Chapter 7 Diagnostics
Chapter 7 Diagnostics You can reach this page by clicking on the following icon located at the top of the screen. 7.1 Diagnostics – Individual Tests The first Diagnostics screen is a dashboard that shows overall connection status. Click the Diagnostics Menu item on the left side of the screen to display the individual connections.
Page 154: Ethernet Oam
7.2 Ethernet OAM The Ethernet OAM (Operations, Administration, Management) page provides settings to enable/disable 802.3ah, 802.1ag/Y1.731 OAM protocols. To enable Ethernet Link OAM (802.3 ah), click Enabled to display the full configuration list. At least one option must be enabled for 802.1ah. Item Description WAN Interface...
Page 155 To enable Ethernet Service OAM (802.1ag/Y1731), click Enabled to display the full configuration list. Click Apply/Save to implement new configuration settings. Item Description WAN Interface Select from the list of WAN Interfaces to send OAM packets MD Level Maintenance Domain Level MD Name Maintenance Domain name MA ID...
Page 156: Uptime Status
Remote MEP ID Maintenance association End Point Identifier for the remote receiver To perform Loopback/Linktrace OAM test, enter the Target MAC of the destination and click “Send Loopback” or “Send Linktrace” button. Target MAC MAC Address of the destination to send OAM loopback/linktrace packet Linktrace TTL Time to Live value for the loopback/linktrace packet...
Page 157: Ping
7.4 Ping Input the IP address/hostname and click the Ping button to execute ping diagnostic test to send the ICMP request to the specified host.
Page 158: Trace Route
7.5 Trace Route Input the IP address/hostname and click the TraceRoute button to execute the trace route diagnostic test to send the ICMP packets to the specified host.
Page 159: Chapter 8 Management
Chapter 8 Management You can reach this page by clicking on the following icon located at the top of the screen. The Management menu has the following maintenance functions and processes: 8.1 Settings This includes Backup Settings, Update Settings, and Restore Defaultscreens.
Page 160: Update Settings
8.1.2 Update Settings This option recovers configuration files previously saved using Backup Settings. Click the Choose File button to search for the file, then click Update Settings to recover settings. 8.1.3 Restore Default Click Restore Default Settings to restore factory default settings. After Restore Default Settings is clicked, the following screen appears.
Page 161 PC IP configuration to match any new settings. NOTE: This entry has the same effect as the Reset button. The PBL-6201v2 board hardware and the boot loader support the reset to default. If the Reset button is continuously pressed for more than 10 seconds, the current configuration data will be erased.
Page 162: System Log
8.2 System Log This function allows a system log to be kept and viewed upon request. Follow the steps below to configure, enable, and view the system log. STEP 1: Click Configure System Log, as shown below (circled in Red). STEP 2: Select desired options and click Apply/Save.
Page 163 The events ranging from the highest critical level “Emergency” down to this configured level will be recorded to the log buffer on the PBL-6201v2 SDRAM. When the log buffer is full, the newer event will wrap up to the top of the log buffer and overwrite the old event.
Page 164: Snmp Agent
8.3 SNMP Agent Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from the SNMP agent in this device. Select the Enable radio button, configure options, and click Save/Apply to activate SNMP. The settings shown above are described below. Item Description SNMP Agent...
Page 165: Client
8.4 TR-069 Client WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device. Select desired values and click Apply/Save to configure TR-069 client options. The table below is provided for ease of reference. Item Description Enable TR-069...
Page 166: Connection Request
Inform Interval The duration in seconds of the interval for which the CPE MUST attempt to connect with the ACS and call the Inform method. ACS URL URL for the CPE to connect to the ACS using the CPE WAN Management Protocol. This parameter MUST be in the form of a valid HTTP or HTTPS URL.
Page 167: Stun Client
8.5 STUN Client Session Traversal Utilities for NAT (STUN) is a protocol that serves as a tool for other protocols in dealing with Network Address Translator (NAT) traversal. Select the desired values and click the Apply/Save button to configure the STUN client options.
Page 168: Internet Time
8.6 Internet Time This option automatically synchronizes the router time with Internet timeservers. To enable time synchronization, tick the corresponding checkbox , choose your preferred time server(s), select the correct time zone offset, and click Apply/Save. NOTE: Internet Time must be activated to use. See 5.5 Parental Control.
Page 169: Access Control
8.7 Access Control 8.7.1 Accounts This screen is used to configure the user account access passwords for the device. Access to the PBL-6201v2 is controlled through the following user accounts:  The root account has unrestricted access to view and change the configuration of your Broadband router.
Page 170: Services
8.7.2 Services The Services option limits or opens the access services over the LAN or WAN. These access services available are: HTTP, SSH, TELNET, SNMP, HTTPS, FTP, TFTP and ICMP. Enable a service by selecting its dropdown listbox. Click Apply/Save to activate.
Page 171: Ip Address
8.7.3 IP Address The IP Address Access Control mode, if enabled, permits access to local management services from IP addresses contained in the Access Control List. If the Access Control mode is disabled, the system will not validate IP addresses for incoming packets.
Page 172: Update Software
8.8 Update Software This option allows for firmware upgrades from a locally stored file. Please note that any Comtrend firmware upgrade will not modify any WiFi parameters (including the Wi-Fi power setting). Comtrend’s products follow the market’s standard requirements. STEP 1: Obtain an updated software image file from your ISP. STEP 2: Enter the path to the image file location in the box below or click the Choose File button to locate the image file.
Page 173: Reboot
8.9 Reboot To save the current configuration and reboot the router, click Reboot. NOTE: You may need to close the browser window and wait for 2 minutes before reopening it. It may also be necessary, to reset your PC IP configuration.
Page 174: Chapter 9 Logout
Chapter 9 Logout To log out from the device simply click the following icon located at the top of your screen. When the following window pops up, click the OK button to exit the router. Upon successful exit, the following message will be displayed.
Page 175: Appendix A - Firewall
Appendix A - Firewall STATEFUL PACKET INSPECTION Refers to an architecture, where the firewall keeps track of packets on each connection traversing all its interfaces and makes sure they are valid. This is in contrast to static packet filtering which only examines a packet based on the information in the packet header.
Page 176 Example 1: Filter Name : In_Filter1 Protocol : TCP Policy : Allow Source IP Address : 210.168.219.45 Source Subnet Mask : 255.255.0.0 Source Port : 80 Dest. IP Address : NA Dest. Subnet Mask : NA Dest. Port : NA Selected WAN interface : br0 This filter will ACCEPT all TCP packets coming from WAN interface “br0”...
Page 177 DAYTIME PARENTAL CONTROL This feature restricts access of a selected LAN device to an outside Network through the PBL-6201v2, as per chosen days of the week and the chosen times. Example: User Name : FilterJohn Browser's MAC Address : 00:25:46:78:63:21...
Page 178: Appendix B - Pin Assignments
Appendix B - Pin Assignments Giga ETHERNET Ports (RJ45) Name Description BI_DA+ Bi-directional pair A + BI_DA- Bi-directional pair A - BI_DB+ Bi-directional pair B + BI_DC+ Bi-directional pair C + BI_DC- Bi-directional pair C - BI_DB- Bi-directional pair B - BI_DD+ Bi-directional pair D + BI_DD-...
Page 179: Appendix C - Specifications
Appendix C – Specifications Hardware ．RJ-14 X1 for VDSL2 (35b)/ADSL2+ (Annex A ) Bonding and Single line ．RJ-45 X 4 for GELAN ．RJ-45 X 1 for 2.5GEWAN ．USB 3.0 X 1 ．Reset button X 1 2.4G WiFi on/off, WPS button X 1 ．...
Page 180 Networking Protocols RFC 2364 (PPPoA), RFC 2684 (RFC 1483) Bridge/Router, RFC 2516 (PPPoE); RFC ． 1577 (IPoA) PPPoE Pass-Through, Multiple PPPoE Sessions on Single WAN Interface ． PPPoE Filtering of Non-PPPoE Packets Between WAN and LAN ．． Transparent Bridging Between all LAN and WAN Interfaces ．...
Page 181 Environment ．Operating Temperature: 0°C ~40°C (32°F ~104°F) ．Operating Humidity: 10%~90% non-condensing ．Storage Temperature: -25°C ~65°C (-13°F ~149°F) ．Storage Humidity: 5%~90% non-condensing Kit Weight (1* PBL-6201v2, 1*RJ45 cable, 1*power adapter) = 0.95 kg NOTE: Specifications are subject to change without notice.
Page 182: Appendix D - Ssh Client
Appendix D - SSH Client Unlike Microsoft Windows, Linux OS has a ssh client included. For Windows users, there is a public domain one called “putty” that can be downloaded from here: http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html To access the ssh client you must first enable SSH access for the LAN or WAN from the Management ...
Page 183: Appendix E - Printer Server
Appendix E - Printer Server These steps explain the procedure for enabling the Printer Server. NOTE: This function only applies to models with an USB host port. STEP 1: Enable Print Server from Web User Interface. Select the Enable on-board print server checkbox ...
Page 184 STEP 2: Click the Windows start button.  Then select Settings.
Page 185 STEP 3: Select Devices. STEP 4: Select Printers & scanners.
Page 186 STEP 5: Select Add a printer or scanner. STEP 6:  Select The printer that I want isn’t listed.
Page 187 STEP 7: Choose Select a shared printer by name. Then input the printer link and click Next. http://LAN IP:631/printers/Canon NOTE: The printer name must be the same name inputted in the WEB UI “Print Server settings” as in step 1.
Page 188 STEP 8: Select the manufacturer  and model of your printer  then, click OK. STEP 9: The printer has been successfully installed. Click the Next button.
Page 189 STEP 10: Click Finish (or print a test page if required). STEP 11: Go to  Settings  Devices  Printers & scanners to confirm that the printer has been configured.
Page 190: Appendix F - Connection Setup
LAN/WAN interfaces. F1.1 ATM Interfaces Follow these procedures to configure an ATM interface. NOTE: The PBL-6201v2 supports up to 16 ATM interfaces. STEP 1: Go to Basic Setup  WAN Setup  Select ATM Interface from the drop-down menu.
Page 191 Item Description Interface WAN interface name ATM VPI (0-255) ATM VCI (32-65535) DSL Latency {Path0}  portID = 0 Category ATM service category Peak Cell Rate Maximum allowed traffic rate for the ATM PCR service connection Sustainable Cell The average allowable, long-term cell transfer rate on the Rate VBR service connection Max Burst Size...
Page 192 STEP 2: Click Add to proceed to the next screen. NOTE: To add WAN connections to one interface type, you must delete existing connections from the other interface type using the remove button. There are many settings here including: VPI/VCI, DSL Link Type, Encapsulation Mode, Service Category and Queue Weight.
Page 193 F1.2 PTM Interfaces Follow these procedures to configure a PTM interface. STEP 1: Go to Basic Setup  WAN Setup  Select PTM Interface from the drop-down menu. This table is provided here for ease of reference. Item Description Interface WAN interface name.
Page 194 Section F2 ~ WAN Connections. F1.3 Ethernet WAN Interface The PBL-6201v2 supports a single Ethernet WAN interface over the ETH WAN port. Follow these procedures to configure an Ethernet interface. STEP 1: Go to Basic Setup  WAN Setup  Select ETHERNET Interface...
Page 195 STEP 2: Click Add to proceed to the next screen. This table is provided here for ease of reference. Item Description Interface/ (Name) WAN interface name. Connection Mode Default Mode – Single service over one interface. Vlan Mux Mode – Multiple Vlan services over one interface. Remove Select interfaces to remove.
Page 196 To add a WAN connection go to Section F2 ~ WAN Connections.
Page 197 F2 ~ WAN Connections The PBL-6201v2 supports one WAN connection for each interface, up to a maximum of 16 connections. To setup a WAN connection follow these instructions. STEP 1: Go to Basic Setup  WAN Setup. STEP 2: Click Add to create a WAN connection. The following screen will display.
Page 198 NOTE: The WAN services shown here are those supported by the layer 2 interface you selected in the previous step. If you wish to change your selection click the Back button and select a different layer 2 interface. STEP 4: For VLAN Mux Connections only, you must enter Priority & VLAN ID tags. Select a TPID if VLAN tag Q-in-Q is used.
Page 199 F2.1 PPP over ETHERNET (PPPoE) – IPv4 STEP 1: Select the PPP over Ethernet radio button and click Next. STEP 2: On the next screen, enter the PPP settings as provided by your ISP. Click Next to continue or click Back to return to the previous step.
Page 200 Click Next to continue or click Back to return to the previous step. The settings shown above are described below. PPP SETTINGS The PPP Username, PPP password and the PPPoE Service Name entries are dependent on the particular requirements of the ISP. The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length.
Page 201 DIAL ON DEMAND The PBL-6201v2 can be configured to disconnect if there is no activity for a period of time by selecting the Dial on demand checkbox . You must also enter an inactivity timeout period in the range of 1 to 4320 minutes.
Page 202 PORT CONTROL PROTOCOL MODE 1.DS-Lite: Encapsulates the IPv4 packet and transmits it across an IPv6 tunnel. 2.NAT444: It maps multiple private IP addresses to one public IP address and uses a different port block for each private IP address. PCP SERVER An IP address of the PCP server so that a CPE (PCP client) can send a request to establish a PCP connection to the PCP server.
Page 203 STEP 4: Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered. Click Next to continue or click Back to return to the previous step.
Page 204 STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them. After clicking Apply/Save, the new service should appear on the main screen.
Page 205 F2.2 IP over ETHERNET (IPoE) – IPv4 STEP 1: Select the IP over Ethernet radio button and click Next.
Page 206 STEP 2: The WAN IP settings screen provides access to the DHCP server settings. You can select the Obtain an IP address automatically radio button to enable DHCP (use the DHCP Options only if necessary). However, if you prefer, you can use the Static IP address method instead to assign WAN IP address, Subnet Mask and Default Gateway manually.
Page 207 STEP 3: This screen provides access to NAT, Firewall and IGMP Multicast settings. Enable each by selecting the appropriate checkbox . Click Next to continue or click Back to return to the previous step. ENABLE NAT If the LAN is configured with a private IP address, the user should select this checkbox .
Page 208 ENABLE IGMP MULTICAST SOURCE Enable the WAN interface to be used as IGMP multicast source. STEP 4: Choose an interface to be the default gateway. Click Next to continue or click Back to return to the previous step.
Page 209 STEP 5: Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered.
Page 210 STEP 6: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them. After clicking Apply/Save, the new service should appear on the main screen.
Page 211 F2.3 Bridging – IPv4 STEP 1: Select the Bridging radio button and click Next. Allow as IGMP Multicast Source Click to allow use of this bridge WAN interface as IGMP multicast source. Allow as MLD Multicast Source Click to allow use of this bridge WAN interface as MLD multicast source.
Page 212 Back to return to the previous screen. After clicking Apply/Save, the new service should appear on the main screen. NOTE: If this bridge connection is your only WAN service, the PBL-6201v2 will be inaccessible for remote management or technical support from the WAN.
Page 213 F2.4 PPP over ATM (PPPoA) – IPv4 STEP 1: Click Next to continue.
Page 214 STEP 2: On the next screen, enter the PPP settings as provided by your ISP. Click Next to continue or click Back to return to the previous step. PPP SETTINGS The PPP username and password are dependent on the requirements of the ISP. The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length.
Page 215 DIAL ON DEMAND The PBL-6201v2 can be configured to disconnect if there is no activity for a period of time by selecting the Dial on demand checkbox . You must also enter an inactivity timeout period in the range of 1 to 4320 minutes.
Page 216 ENABLE IGMP MULTICAST PROXY Tick the checkbox  to enable Internet Group Membership Protocol (IGMP) multicast. This protocol is used by IPv4 hosts to report their multicast group memberships to any neighboring multicast routers. Enable IGMP Multicast Source Enable the WAN interface to be used as IGMP multicast source. STEP 3: Choose an interface to be the default gateway.
Page 217 STEP 4: Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered.
Page 218 STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them. After clicking Apply/Save, the new service should appear on the main screen.
Page 219 F2.5 IP over ATM (IPoA) – IPv4 STEP 1: Click Next to continue. STEP 2: Enter the WAN IP settings provided by your ISP. Click Next to continue. STEP 3: This screen provides access to NAT, Firewall and IGMP Multicast settings. Enable each by selecting the appropriate checkbox .
Page 220 ENABLE FULLCONE NAT This option becomes available when NAT is enabled. Known as one-to-one NAT, all requests from the same internal IP address and port are mapped to the same external IP address and port. An external host can send a packet to the internal host by sending a packet to the mapped external address.
Page 221 NOTE: If the DHCP server is not enabled on another WAN interface then the following notification will be shown before the next screen. STEP 5: Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered.
Page 222 STEP 6: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them. After clicking Apply/Save, the new service should appear on the main screen.
Page 223 F2.6 PPP over ETHERNET (PPPoE) – IPv6 STEP 1: Select the PPP over Ethernet radio button. Then select IPv6 only from the drop-down box at the bottom off the screen and click Next. STEP 2: On the next screen, enter the PPP settings as provided by your ISP.
Page 224 Click Next to continue or click Back to return to the previous step. The settings shown above are described below.
Page 225 PPP SETTINGS The PPP Username, PPP password and the PPPoE Service Name entries are dependent on the particular requirements of the ISP. The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length.
Page 226 LAUNCH DHCP6C FOR ADDRESS ASSIGNMENT (IANA) The Internet Assigned Numbers Authority (IANA) is a department of ICANN responsible for coordinating some of the key elements that keep the Internet running smoothly. Whilst the Internet is renowned for being a worldwide network free from central coordination, there is a technical need for some key parts of the Internet to be globally coordinated, and this coordination role is undertaken by IANA.
Page 227 When Enabled, this creates local PPPoE connections to the WAN side. Enable this option only if all LAN-side devices are running PPPoE clients, otherwise disable it. The PBL-6201v2 supports pass-through PPPoE sessions from the LAN side while simultaneously running a PPPoE client from non-PPPoE LAN devices.
Page 228 STEP 4: Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered. Select the configured WAN interface for IPv6 DNS server information OR enter the static IPv6 DNS server Addresses.
Page 229 STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them. After clicking Apply/Save, the new service should appear on the main screen.
Page 230 F2.7 IP over ETHERNET (IPoE) – IPv6 STEP 1: Select the IP over Ethernet radio button and click Next. Then select IPv6 only from the drop-down box at the bottom off the screen and click Next.
Page 231 STEP 2: The WAN IP settings screen provides access to the DHCP server settings. You can select the Obtain an IPv6 address automatically radio button to enable DHCP (use the DHCP Options only if necessary). However, if you prefer, you can use the Static IPv6 address method instead to assign WAN IP address, Subnet Mask and Default Gateway manually.
Page 232 DHCP6C FOR ADDRESS ASSIGNMENT (IANA) The Internet Assigned Numbers Authority (IANA) is a department of ICANN responsible for coordinating some of the key elements that keep the Internet running smoothly. Whilst the Internet is renowned for being a worldwide network free from central coordination, there is a technical need for some key parts of the Internet to be globally coordinated, and this coordination role is undertaken by IANA.
Page 233 STEP 3: This screen provides access to NAT, Firewall and IGMP Multicast settings. Enable each by selecting the appropriate checkbox . Click Next to continue or click Back to return to the previous step. ENABLE NAT Not available for IPv6. ENABLE FIREWALL If this checkbox ...
Page 234 STEP 4: To choose an interface to be the default gateway. Also, select a preferred WAN interface as the system default IPv6 gateway (from the drop-down box). Click Next to continue or click Back to return to the previous step.
Page 235 STEP 5: Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses must be entered.
Page 236 STEP 6: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them. After clicking Apply/Save, the new service should appear on the main screen.
Page 237 F2.8 PPP over ATM (PPPoA) – IPv6 STEP 1: Select IPv6 Only from the drop-down box at the bottom of this screen and click Next.
Page 238 STEP 2: On the next screen, enter the PPP settings as provided by your ISP. Click Next to continue or click Back to return to the previous step. PPP SETTINGS The PPP username and password are dependent on the requirements of the ISP. The user name can be a maximum of 256 characters and the password a maximum of 32 characters in length.
Page 239 CONFIGURE KEEP-ALIVE Configures the interval and number of keep alive packets (PPP echo-request) sent by the device for the PPP connection. Interval (second): Time between sending out each PPP echo-request packet. Number of retries: Number of retries before PPP connection is dropped. ENABLE FULLCONE NAT Not available for IPv6.
Page 240 LAUNCH DHCP6C FOR PREFIX DELEGATION (IAPD) An Identity Association for Prefix Delegation (IAPD) is a collection of prefixes assigned to a requesting device. A requesting device may have more than one IAPD; for example, one for each of its interfaces. A prefix-delegating router (DHCPv6 server) selects prefixes to be assigned to a requesting router (DHCPv6 client) upon receiving a request from the client.
Page 241 STEP 3: Choose an interface to be the default Ipv6 gateway. Click Next to continue or click Back to return to the previous step.
Page 242 STEP 4: Select the configured WAN interface for IPv6 DNS server information OR enter the static IPv6 DNS server Addresses. Note that selecting a WAN interface for IPv6 DNS server will enable DHCPv6 Client on that interface. Click Next to continue or click Back to return to the previous step.
Page 243 STEP 5: The WAN Setup - Summary screen shows a preview of the WAN service you have configured. Check these settings and click Apply/Save if they are correct, or click Back to modify them. After clicking Apply/Save, the new service should appear on the main screen.

This manual is also suitable for:

Nl-3131u

Comtrend Corporation PBL-6201v2 User Manual

Chapter 1 Introduction

Chapter 2 Installation

Chapter 3 Web User Interface

Chapter 4 Device Information

Chapter 5 Basic Setup

Chapter 6 Advanced Setup

Chapter 7 Diagnostics

Chapter 8 Management

Chapter 9 Logout

Appendix A - Firewall

Appendix B - Pin Assignments

Appendix C - Specifications

Appendix D - SSH Client

Appendix E - Printer Server

Appendix F - Connection Setup

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comtrend Corporation PBL-6201v2

Summary of Contents for Comtrend Corporation PBL-6201v2

This manual is also suitable for:

Table of Contents
