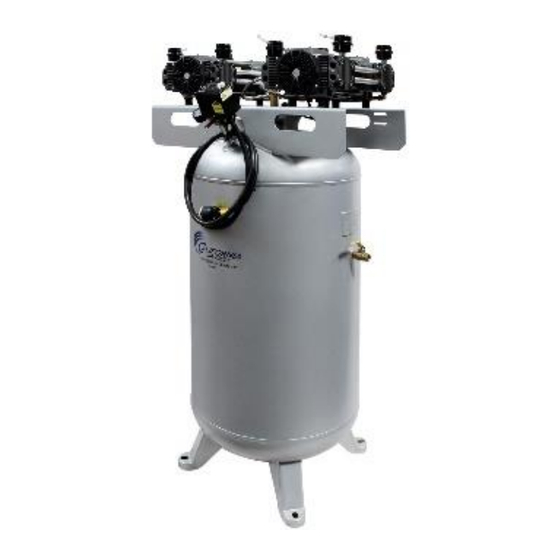

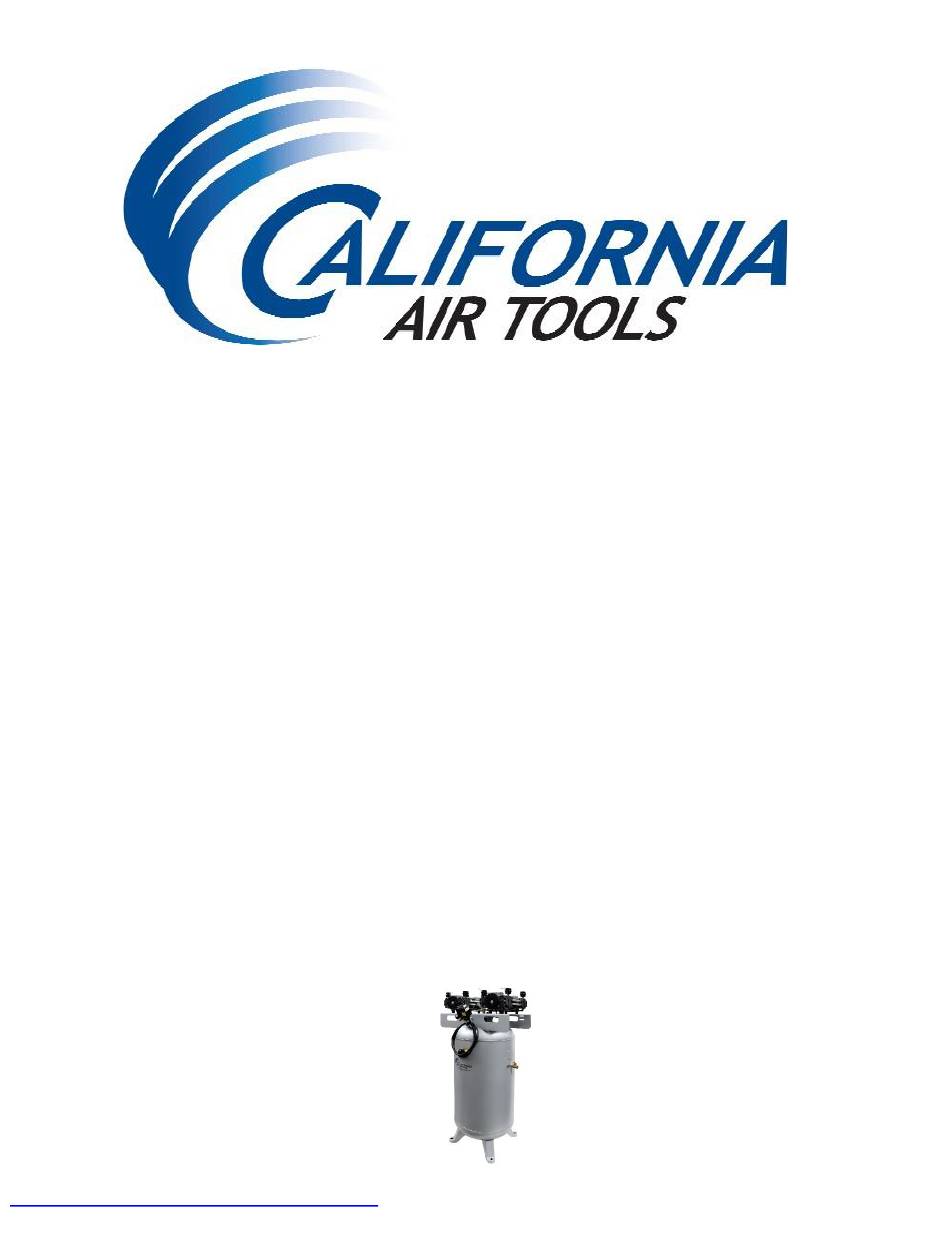

- Page 1 ULTRA QUIET & OIL FREE AIR COMPRESSOR OWNER'S MANUAL CALIFORNIA AIR TOOLS 80060C 6.0 HP 220v 60hz 1-Phase (24 Amp) 20.0 CFM @ 40 PSI, 16.8 CFM @ 90 PSI 80 GALLON A S M E STEEL TANK WWW.CALIFORNIAAIRTOOLS.COM Customer Support 1-866-409-4581...
-
Page 2: Table Of Contents
PRE-OPERATION CHECKLIST ______________________ 8 Package Contents & Assembly ___________________ 8 Inspect for Damage _____________________________ 9 Save Packaging ________________________________ 9 Thank you for purchasing a California Air Tools, Inc. Compressor Location ___________________________ 9 Air Compressor. Electrical Power _______________________________ 10 OPERATING THE AIR COMPRESSOR ______________ 10 Please contact us if you have any questions. -
Page 3: Important Safety Instructions
AIR COMPRESSOR How to find a local service center: Even quality built equipment might need service or repair parts. Contact the California Air Tools Customer Service Department: Phone: 1-866-409-4581 Online: WWW.CALIFORNIAAIRTOOLS.COM Please provide the information below: Model number and Serial number and specifications shown on the Model number/Serial number plate. - Page 4 AIR COMPRESSOR Customer Support: 1-866-409-4581...
-
Page 5: Power Requirements
AIR COMPRESSOR Power Requirements • 220v 60hz 1-Phase 24.0 Amp • 30 Amp Breaker Suggested • Included: NEMA L6-30P plug with 6 foot 10 AWG power cord • L6-30R outlet (receptacle) is required. Ensure that the power supply you are going to use is operating normally. -
Page 6: Locations Of Important Labels
AIR COMPRESSOR LOCATIONS OF PRODUCT LABEL IMPORTANT LABELS Read these important labels before operating. These labels provide important safety and maintenance information. These labels should be considered as permanent parts of the air compressor. Should any of these labels become illegible, damaged or removed, please contact California Air Tools Customer Service department at 1-866-409-4581 for replacements. - Page 7 AIR COMPRESSOR Customer Support: 1-866-409-4581...
-
Page 8: Air Compressor Components
AIR COMPRESSOR PRE-OPERATION CHECKLIST Package Contents & Assembly Model: 80060C Package contents: Air Compressor Owner's Manual 8 Air Filters (2.0 Hp) 8 Intake Tubes (4” long) Assembly: Close Manual Ball Drain Valve: Install the eight (8) 2.0 Hp Air Filters (1/2” NPT). -
Page 9: Inspect For Damage
AIR COMPRESSOR Maintain a Clear Area Inspect for Damage It is very important that the air compressor is positioned so Before using the air compressor, make sure the air tank is not that there is adequate airflow around the machine. There damaged, inspect all parts for damage, and check that all must be at least 2 feet of obstacle-free space surrounding pipes are firmly connected. -
Page 10: Electrical Power
AIR COMPRESSOR Electrical Extension Cords Electrical Power Electrical Power Requirements Before using the air compressor, refer to the serial label for voltage and amperage requirements. Make sure you have a sufficient electrical supply for supporting the motor's requirements. Inspect all electrical extension cords to ensure that they are free of damage. -
Page 11: Test Run
AIR COMPRESSOR Test Run Before using the air compressor for the first time, complete a test run as follows: 1. Turn the power switch to the OFF position. Plug the power supply cord into a power supply socket. Start the air compressor by turning the power switch to the AUTO position. -
Page 12: Maintenance
AIR COMPRESSOR MAINTENANCE Draining the Air Tank Pressure Switch The frequency at which you should drain the air tank depends The pressure switch is factory pre-set to shut off at on the environmental conditions and the amount of operating 120 PSI (plus or minus 5 PSI) and to re-start at time logged. -
Page 13: Troubleshooting
AIR COMPRESSOR TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTIONS Let the compressor build pressure in the tank, to the maximum pressure if possible. Brush soapy water on air connections and look carefully for air bubbles. Tighten leaky connections. If the problem Pressure drop in the tank. -
Page 14: Specifications
AIR COMPRESSOR The motor pump unit does not stop when the tank Pressure switch defective or needs Stop the compressor immediately and contact pressure reaches its adjusting. Customer Support. maximum working pressure (120 PSI).(plus or minus 5 PSI) SPECIFICATIONS Electrical Circuit (generic) Air Passage Drawing (generic) Customer Support: 1-866-409-4581... -
Page 15: Limited Warranty Periods
This warranty does not transfer to subsequent owners. California Air Tools Inc. will repair or replace, at its option, any parts of the portable air compressor that are proven by an authorized service center to be defective in material or workmanship under normal use during the applicable warranty time period as stated below. - Page 16 3. Accident, damage, abuse or misuse. 4. Abnormal operating conditions or applications. 5. Repair or modification by customer or any third party without written consent of California Air Tools Inc. 6. Use under operating conditions or in applications not recommended by California Air Tools Inc.
- Page 17 AIR COMPRESSOR Customer Support: 1-866-409-4581...
