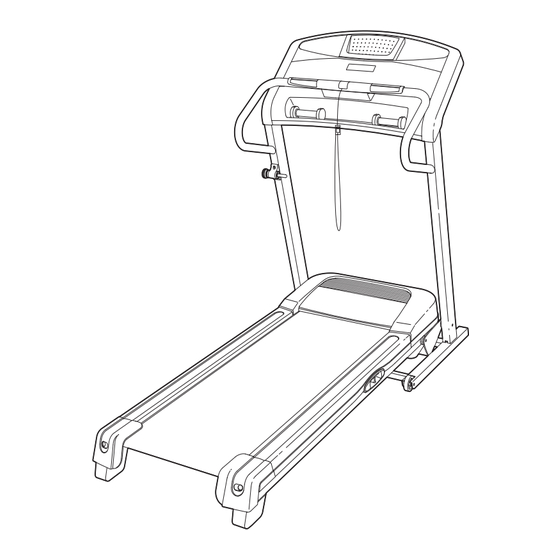

USER'S MANUAL

Model No. WLTL04610.0

Serial No.

Write the serial number in the

space above for reference.

Serial Number

Decal

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT CON-

TACT THE STORE; please contact

Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

1-866-699-3756

CALL TOLL-FREE:

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.wesloservice.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Table of Contents

Need help?

Do you have a question about the CADENSE F 9.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weslo CADENSE F 9.0

Page 1 All manuals and user guides at all-guides.com www.weslo.com USER'S MANUAL Model No. WLTL04610.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CON- TACT THE STORE;...
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decals may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc.
Page 3: Important Precautions
2. It is the responsibility of the owner to ensure page 13. To purchase a surge suppressor, see that all users of this treadmill are adequately your local WESLO dealer or call the telephone informed of all warnings and precautions. number on the front cover of this manual and order part number 146148, or see your local 3.
Page 4 All manuals and user guides at all-guides.com 20. Use the included dumbbells only as de- 24. Inspect and properly tighten all parts of the scribed in this manual. Properly store the treadmill regularly. dumbbells in the dumbbell tray on the con- sole when you are not using them.
Page 5: Before You Begin
All manuals and user guides at all-guides.com BEFORE YOU BEGIN Thank you for selecting the new WESLO ing this manual, please see the front cover of this man- ® CADENCE F 9.0 treadmill. The CADENCE F 9.0 tread- ual. To help us assist you, note the product model mill offers a selection of features designed to make number and serial number before contacting us.
Page 6: Assembly
All manuals and user guides at all-guides.com ASSEMBLY To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re- quires two persons. Set the treadmill in a cleared area and remove the packing materials; do not dispose of the packing materials until assembly is completed.
Page 7 All manuals and user guides at all-guides.com 1. Have a second person hold the Base (85) in the position shown. Identify the Right Upright (78), which has a square hole near the lower end. Orient the Right Upright (78) as shown, and attach it to the Base (85) with two 3/8"...
Page 8 All manuals and user guides at all-guides.com 4. Raise the Uprights (77, 78), and position the Base (85) near the treadmill as shown. Wire Tie See the far right drawing. Tie the wire tie in the lower end of the Right Upright (78) around the Upright Wire (74).
Page 9 All manuals and user guides at all-guides.com 6. See the left inset drawing. Identify the outer side of the remaining Frame Spacer (79). Hold the Frame Spacer (79) between the Left Upright (77) and the Lift Frame (65), with the outer side of the Frame Spacer facing the Left Upright.
Page 10 All manuals and user guides at all-guides.com 8. Insert the wires into the Right Upright (78). Next, insert the brackets on the console assembly into Console the Right Upright and the Left Upright (77). Be Assembly careful not to pinch any wires. Attach the console assembly with four 5/16"...
Page 11 All manuals and user guides at all-guides.com 11. Hold the handrail assembly near the console as- sembly. Connect the wire harness extending from the handrail assembly to the wire harness Console Assembly extending from the console assembly. See the inset drawing in step 7. The connectors should slide together easily and snap into Wire place.
Page 12 All manuals and user guides at all-guides.com 13. Lower the Uprights (77, 78) as shown. Side View See the inset drawing. Position the Uprights (77, 78) so that the Frame (55) is centered be- tween the Uprights. Firmly tighten the 3/8" x 2 1/2" Bolt (1) and then 77, 78 tighten the 3/8"...
Page 13: Operation And Adjustment
All manuals and user guides at all-guides.com OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT that is properly installed and grounded in accor- dance with all local codes and ordinances. IMPORTANT: The treadmill is not compatible with Your treadmill features a walking belt coated with high- performance lubricant.
Page 14: Console Diagram
All manuals and user guides at all-guides.com CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE To turn on the power, see page 15. To use the man- ual mode, see page 15. To use a preset workout, see page 17. To use the information mode, see page 18. The treadmill console offers a selection of features designed to make your workouts more effective.
Page 15: How To Use The Manual Mode
All manuals and user guides at all-guides.com HOW TO TURN ON THE POWER 3. Start the walking belt. IMPORTANT: If the treadmill has been exposed to To start the walking belt, press the Start button, the cold temperatures, allow it to warm to room tem- Speed increase button, or one of the ten numbered perature before turning on the power.
Page 16 All manuals and user guides at all-guides.com 6. Measure your heart rate if desired. The lower left display can show the elapsed time and the distance Before using the that you have walked handgrip pulse or run during your sensor, remove workout.
Page 17 All manuals and user guides at all-guides.com HOW TO USE A PRESET WORKOUT you. The treadmill will then automatically adjust to the speed and incline settings for the next segment. 1. Insert the key into the console. When you use a weight See HOW TO TURN ON THE POWER on page 15.
Page 18 All manuals and user guides at all-guides.com THE INFORMATION MODE power switch into the reset position, and insert the key into the console. However, when you remove the key, The console features an information mode that keeps the displays will remain lit, although the buttons will not track of treadmill usage information and allows you to function.
Page 19: How To Fold And Move The Treadmill
All manuals and user guides at all-guides.com HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill.
Page 20: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
Page 21 All manuals and user guides at all-guides.com Locate the Reed Switch (46) and the Magnet (44) on the left side of the Pulley (43). Turn the Pulley until the 1/8 in. Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8 in.
Page 22: Exercise Guidelines
All manuals and user guides at all-guides.com EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
Page 23: Part List
All manuals and user guides at all-guides.com PART LIST—Model No. WLTL04610.0 R0810A Key No. Qty. Description Key No. Qty. Description 3/8" x 2 1/2" Bolt Walking Belt 5/16" x 3/4" Bolt Power Cord 1/4" x 1 1/2" Bolt Power Cord Bracket 1/4"...
Page 24: Exploded Drawing
All manuals and user guides at all-guides.com EXPLODED DRAWING A—Model No. WLTL04610.0 R0810A...
Page 25 All manuals and user guides at all-guides.com EXPLODED DRAWING B—Model No. WLTL04610.0 R0810A...
Page 26 All manuals and user guides at all-guides.com EXPLODED DRAWING C—Model No. WLTL04610.0 R0810A...
Page 27 All manuals and user guides at all-guides.com EXPLODED DRAWING D—Model No. WLTL04610.0 R0810A...
Page 28: Ordering Replacement Parts
All manuals and user guides at all-guides.com ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
