CONOTEC. Co., LTD

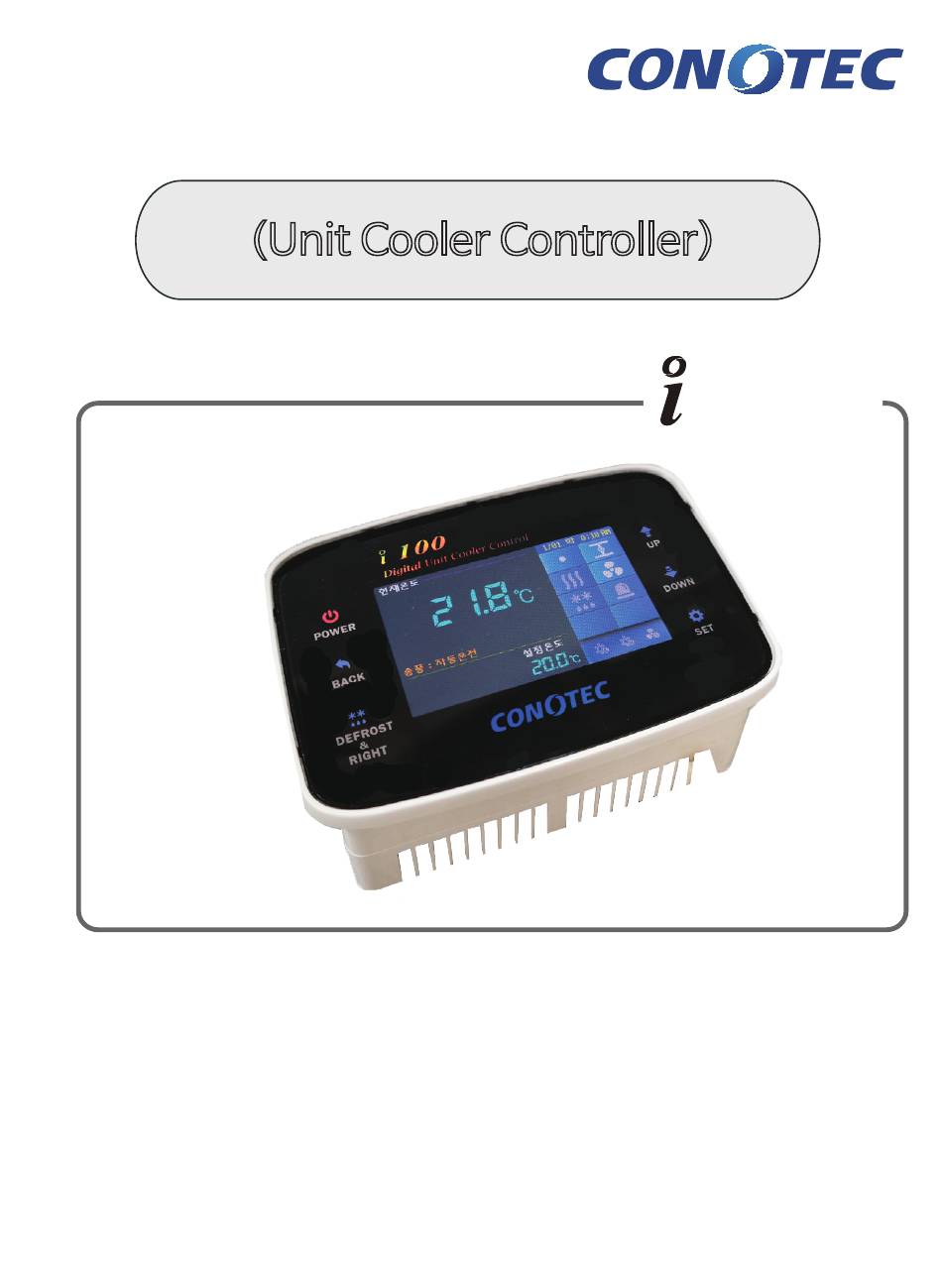

(Unit Cooler Controller)
100
We appereciate your interest and support in our products.
Please make sure to read the " Handling Precaution" Before use.
And please keep this manual in a place where you can see at any time.
The handling of the controller will be convenient after reading the manual.
Manual Version : V2.0
Advertisement
Table of Contents
Related Manuals for Conotec i100
Summary of Contents for Conotec i100
- Page 1 CONOTEC. Co., LTD (Unit Cooler Controller) We appereciate your interest and support in our products. Please make sure to read the “ Handling Precaution” Before use. And please keep this manual in a place where you can see at any time.
-
Page 2: Table Of Contents
Conotec, a global company with advanced technology and expertise! Table of Contents 1. Handling Precautions 2. Basic Specifications 3. Product screen composition 4. Setting menu list 5. Alarm contents 6. Product warranty Representative brand of controller... -
Page 3: Handling Precautions
Conotec, a global company with advanced technology and expertise! Handling Precautions Thank you for purchasing Conotec’s products. Please be sure to read the following to use this product properly. Safety precautions Warning 1. Since this product is not manufactured as a safety device, be sure to use with dual safety devices in the event of using the product with devices that may cause accidents or property damage or when used for controlling. -
Page 4: Caution, Risk Of Electric Shock
Conotec, a global company with advanced technology and expertise! 19. When wiring the product, terminals and screws should be tighten with enough torque. Contact failure may cause a fire. 20. Do not use load that surpassed rated value of weitching capacity of relay contact point. -
Page 5: Basic Specifications
Conotec, a global company with advanced technology and expertise! Basic Specifications Basic Specification Power 100~240VAC 50~60Hz Digital input 3 Ports Digital output 6 Ports Temperature sensor : 1 Port(NTC10K) Analog input Temperature Range : -55.0 ~ 99.9℃( 1℃) 12-/24-/48-/96-/192- Bps... -
Page 6: Product Screen Composition
Conotec, a global company with advanced technology and expertise! Product Screen Composition 1/ 1. Mo 10:00AM Current temperature POWER DOWN BACK Ventilation: Automatic Operation. Setup temperature DEFROST & RIGHT 13 14 : System start or pause button : Move to previous screen from the current menu / Mute function on the initial screen... -
Page 7: System Status
Conotec, a global company with advanced technology and expertise! System status Operation screen 1/01.Tue. 10:00 AM Current temperature System OFF Ventilation: Automatic Operation Setup temperature System ON 1/01.Tue. 10:00 AM 1/01.Tue. 10:00 AM Current temperature Current temperature Ventilation: Automatic Operation... -
Page 8: Setup Menu List
Conotec, a global company with advanced technology and expertise! Setup Menu List Temperature settings Initial List Range Function value Setup By setting the reference temperature for operation, operation will be -55.0 ~ 99.9℃ 20.0℃ temperature turned OFF when the reference temperature is reached during operation Cooling 1.0℃... - Page 9 Conotec, a global company with advanced technology and expertise! Defrost settings Initial List Range Function value General/Ventilation/ General Defrost method Sets the defrosting method. Heating/Integrated Defrost When the freezer has operated 4 hour 0 ~ 250 hour pause time for the set amount of time, defrosting will occur.
-
Page 10: Alarm Contents
Conotec, a global company with advanced technology and expertise! Alarm content list Alarm content Occurrence List Occurrence Cause and Measures (Alarm occurrence) When the system detected DI’s Comp. 1 low pressure (INT 1) Comp. low-pressure When the system detected DI’s Comp. 1 high pressure (INT 2) Comp. -
Page 11: Product Warranty
Conotec, a global company with advanced technology and expertise! Warranty This product is manufactured through the strict quality control and inspection process of Conotec Co., Ltd. The product warranty period is one year after purchase in accordance with the Consumer Damage Compensation Regulations, so be sure to enter the purchase date and place of purchase at the place of purchase. - Page 12 This manual contains proprietary information protected by copyright. All rights reserved. Of this document without prior approval of our signature Some parts may not be copied, produced or translated into other languages. Date of Issue: 2021.06.18, Manual Version: V2.0...
