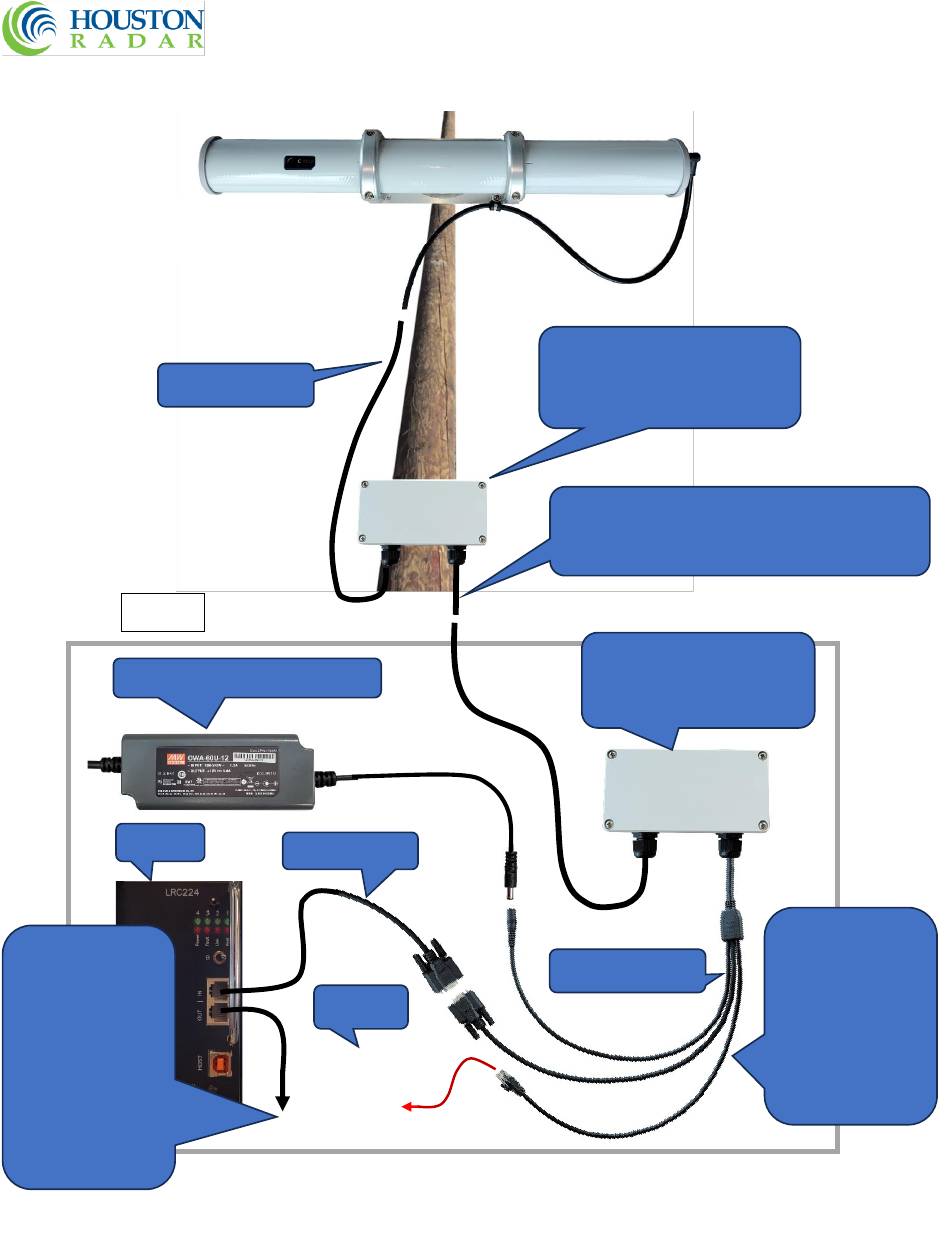

Quick Start for FIB-100-0005 and FIB-100-0006
SpeedLane Pro
900-0080
Cabinet
110-0073 24 Volt Power Supply
LRC224
Card OUT can be
connected to the
next card IN to
cascade cards.
Refer to the card
quick start guide
to set DIP switch
for each card to
different
channels.
Quick Start for FIB-100-0005 and FIB-100-0006 version 1.0
͌
͌
CBL-100-0005
Laptop
FIB-100-0005
Pole Mount Junction Box. See
Fig. 1 for wiring diagram
900-0079 12 Conductor cable cut to length.
4000 ft max for RS422 interface to LRC224.
288 ft max for ethernet.
FIB-100-0006
Junction Box. See Fig. 1
for wiring diagram.
900-0081
November 4, 2024
Ethernet can only
be used if 900-
0079 length is
less than 288 ft.
If length is more
than 288 ft.
connect to SLP
with Bluetooth.
Advertisement
Related Manuals for Houston Radar SpeedLane Pro
Summary of Contents for Houston Radar SpeedLane Pro
- Page 1 Quick Start for FIB-100-0005 and FIB-100-0006 SpeedLane Pro ͌ FIB-100-0005 Pole Mount Junction Box. See 900-0080 Fig. 1 for wiring diagram 900-0079 12 Conductor cable cut to length. 4000 ft max for RS422 interface to LRC224. 288 ft max for ethernet.
- Page 2 Quick Start for FIB-100-0005 and FIB-100-0006 Figure 1 Junction Box Wiring Guide RS422 RS232 RS485 Color Mode Mode Mode Brown Data+ White/Brown Data- Blue White/Blue +VCC Yellow Reserved Black DC Return Grey Reserved White/Orange Ethernet TX+ Orange Ethernet TX- White/Green Ethernet RX+ Green Ethernet RX-...
