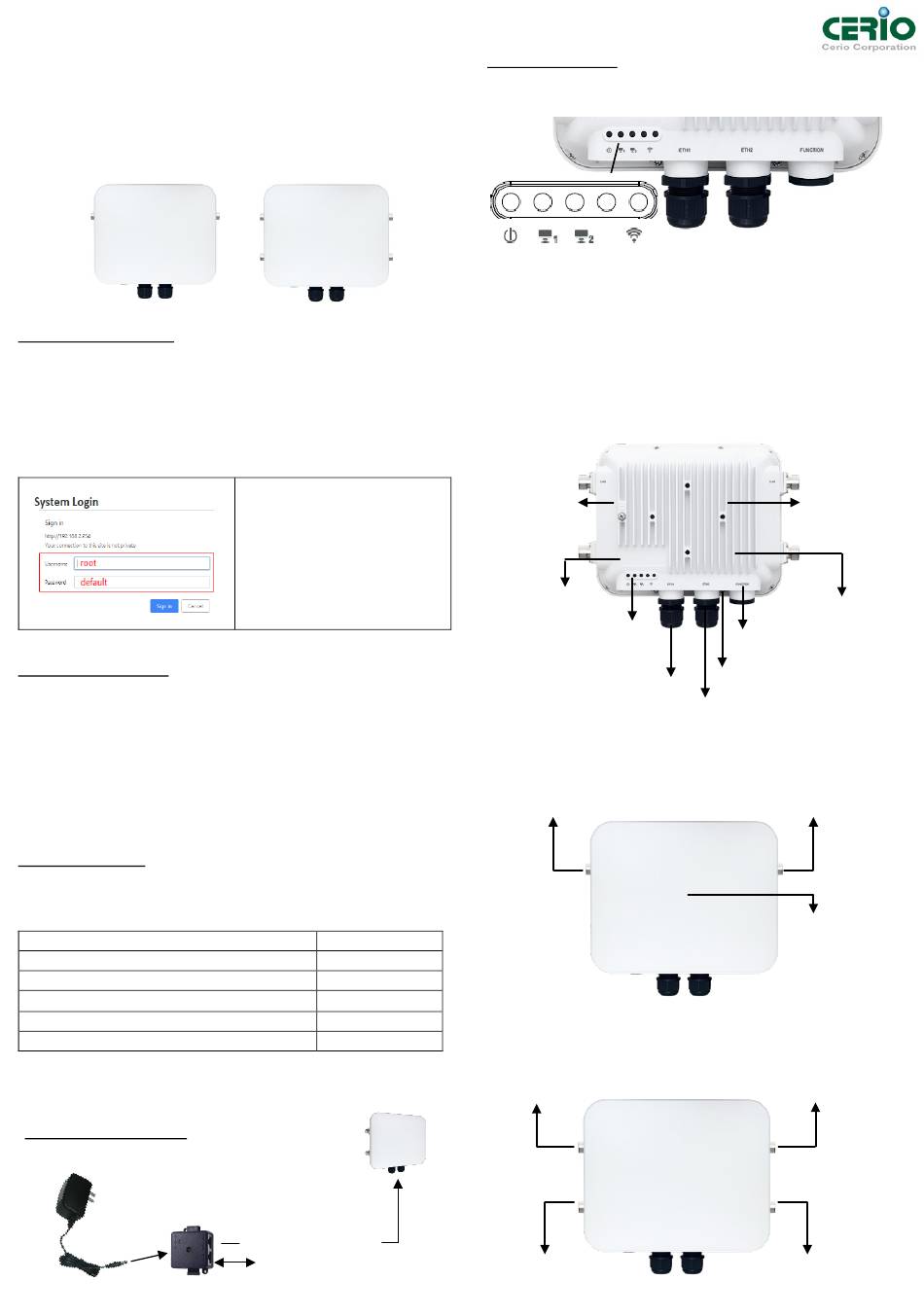

Cerio OW-400 2N10 Quick Installation Manual

OW-400 2N10 / OW-400 2N18
OW-400 4N00
eXtreme High Power WiFi6 Dual-Radio
Outdoor PoE Bridge/AP
Quick Installation Guide
OW-400 2N10 / OW-400 2N18
GUI Setting Instructions
Product default IP address : 192.168.2.254
Product default Account : root
Set the IP segment of the administrator's computer to be in the same
range as this device for accessing the system. E.g. 192.168.2.100, after
open your Browser enter IP address http://192.168.2.254 in the URL field
Enter GUI management interface. Login message will appear when you
successfully enter the management interface
Products Description
OW-400 2N10: 2N-Type external connectors for 2.4G and built in
10dBi 5G Directional Antenna design.
OW-400 2N18: 2N-Type external connectors for 2.4G and built in
18dBi 5G Directional Antenna design.
OW-400 4N00: 2N-Type external connectors for 2.4G and 2N-Type
external connectors for 5G design.
Package Contents
Before you start to install this device, please verify your package
that contains the following items:
Package Contents
Main Unit
PoE Power supply Kit
Quick Installation Guide
Warranty Card
Adjustable Mounting Bracket Set
Note: If any of these items is found missing or damaged, please contact
your local supplier for replacement.
PoE Setup Instructions
* Host power port input can be selected as
1Gbps ETH1 / PoE in port access or
2.5Gbps ETH2 / PoE in port access
Power Adapter DC in
V1.2
OW-400 4N00
/ Password : default
.
Please use default Users name:
"root" and default password
"default" to login.
If you have advanced setting and
more question please refer to our
user manual
QTY
x1
x1
x1
x1
x1
Power + Data output
Data Transfer Input
Product Overview
Product LED Description
Power Eth1 Eth2
1. Power : PoE on and system ready。
2. Eth1 : Eth1 link
3. Eth2 : Eth2 link
4. Radio 2.4GHz : 2.4GHz radio is enabled。
5. Radio 5GHz :
Hardware Overview
6KV Lightning
Protection
Surge
LED
Pressure Vent
1G ETH1 / PoE in
*Two RJ45 waterproof connectors are included in the accessory box. When
installing, please make sure to tighten them securely to achieve the waterproof.
OW-400 2N10 / OW-400 2N18
External for 2.4GHz
N-Type Connecter
OW-400 4N00 Antenna Overview
External for 2.4GHz
N-Type Connecter
PoE in
External for 5GHz
N-Type Connecter
Radio
connection。(1Gbps Ethernet Speed Port)
connection。(2.5Gbps Ethernet Speed Port)
5GHz radio is enabled。
Function Port
Reset Button
2.5G ETH2 / PoE in
Antenna Overview
External for 2.4GHz
N-Type Connecter
Built in 2x2 10dBi 5GHz
Directional Panel Antenna
(OW-400 2N10)
Built in 2x2 18dBi 5GHz
Directional Panel Antenna
(OW-400 2N18)
External for 2.4GHz
N-Type Connecter
External for 5GHz
N-Type Connecter
Aluminum
Adjustable
Bracket Holes
Metal
Corrosion-Resistant
or
