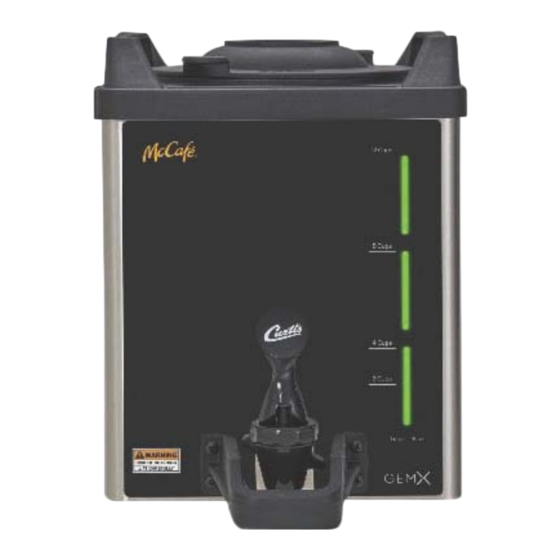

- Page 1 USER GUIDE ® ™ ® GEMX IntelliFresh ® FreshTrac Dispenser For use only with GEMX series Intellifresh brewers. See brewer user guide for brewing instructions. READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
Illustrated Parts/Recommended Parts ........................IP205 Electrical Schematic ............................ES160 Troubleshooting Guide ............................TG52 Product Warranty..............................PW1 Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Symbols This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER - Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING - Indicates a hazardous situation which, if not avoided, could result in death or serious injury. - Page 4 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • • • This appliance must not be cleaned by water jet. • instruction concerning use of the appliance in a safe way and if they understand the hazards involved. •...
-
Page 5: Intellifresh ® Features
NOTE: After the brew cycle is complete, if the ½ Gallon ¼ Gallon GEMX dispenser is transferred from the brewer to a Curtis IntelliFresh warmer stand, the dispenser settings will remain the same. Brew cycle LEDs turn red after quality timer has expired... -
Page 6: Cleaning Instructions
CLEANING INSTRUCTIONS CI37 WARNING: HOT SURFACES - To avoid injury, allow the brewer and dispenser(s) to cool before cleaning. Do not place the dispenser in a dishwasher. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. Discard the remaining coffee. - Page 7 CLEANING INSTRUCTIONS CI37 immediately. after the cycle is complete. Turn the brewer off by turning clean water. Dispense the the blue cleaning solution water through the faucet for seconds, then remove the the remaining water. lid and dump the remaining solution out.
- Page 8 CLEANING INSTRUCTIONS CI37 Thoroughly rinse all parts with clean, warm water. WASH RINSE SANITIZE into the brew rails. air dry, then reassemble the and cool, wipe the exterior dispenser. surfaces and spray head area with a damp cloth to remove debris. Turn on the main power The brewer is ready to brew.
-
Page 9: Rough-In Drawing
ROUGH-IN DRAWINGS RD72 GEM3XIFT - Dispenser 9.04 in [23.0 cm] 9.17 in [23.3 cm] 4.68 in [11.9 cm] 11.09 in 11.42 in [28.2 cm] [29.0 cm] 0.24 in [0.6 cm] GEM3XIFT, ROUGH-IN DRAWING 052920B... -
Page 10: Illustrated Parts List
ILLUSTRATED PARTS LIST IP205 GEM3XRBA026 - Exploded View Orange, decaf. handle When replacing the faucet shank, apply food grade lubricant (ITEM 18, not included) to both o-rings before installation. GEM3XR, ILLUSTRATED PARTS/RECOMMENDED PARTS 060420NC... - Page 11 SEAT CUP, “S” FAUCET USE ON WC-1800/B/LB/D/ WC-43062 GASKET, TANK LID WC-1805 DL/L/WC-1803 WC-390604 LABEL, FRONT GEM3XIFT MCD WC-32005ORG HANDLE, FAUCET STYLIZED ORG CURTIS WC-1901A-104K a KIT, FAUCET SHANK GEM3XIFT WC-4916 LUBRICANT, GREASE HEAVY DUTY PC’S 4oz FAUCET, “SPB” SERIES,BLACK HAN DLE/PLASTIC WC-1803 1-1/32-14 UNS CURT...
-
Page 12: Electrical Schematics
ELECTRICAL SCHEMATICS ES160 GEM3XR... -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE TG52 Dispenser Does Not Heat NOTE: The dispenser heating element is designed to keep brewed First check to see if the bottom LED bar on the dispenser is - Three long, two short = defect in controller sensor circuit Bottom LED bar ®... - Page 14 TROUBLESHOOTING GUIDE TG52 “DISPENSER LOCKOUT” Appears On Display Check to make sure that the dispenser is empty, properly seated on the brew deck and has had time to warm The following steps assume that the DISPENSER LOCKOUT message is being caused by a malfunction in a One or More LED Bars are Constantly On Regardless of Coffee Level.
-
Page 15: Product Warranty
Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
