Summary of Contents for Mitsubishi Electric MR-WX53Z
Page 1

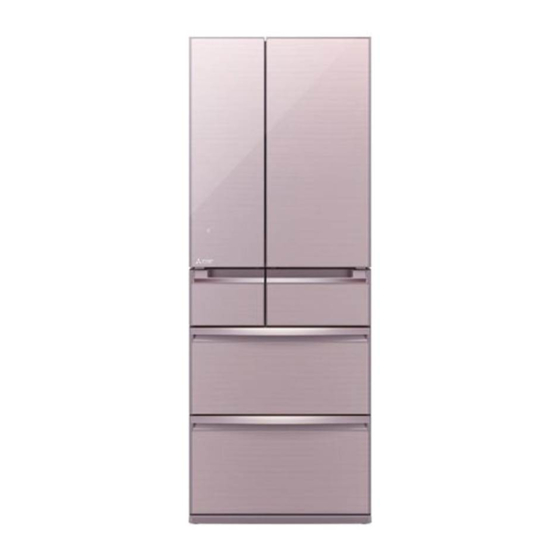

Refrigerator-Freezer 冷藏冷凍雪櫃 MODEL MR-WX53Z MR-WX61Z MR-WX70C OPERATING INSTRUCTIONS 使用須知 Non-Freon Refrigerators This refrigerator uses non-Freon refrigerant (isobutane) and non-Freon foam insulation (cyclopentane). T h e s e m a t e r i a l s a r e h a r m l e s s t o t h e environment, which does not affect the ozone layer and global warming.
Page 2
Store food in the best way for consumption Place food and drinks in the compartments suitable for preserving them. Convenient functions can be easily set by simply touching icons. Refrigerator Compartment ➡ Pages 10 - 11 Operation Panel to 6 About °C °C...
Contents (Pages) Safety Precautions …………………… 4-5 From Installation to Operation …… 6-7 Energy Saving Mode Page 20 How to Use the Operation Panel … 8-9 ENERGY Refrigerator Compartment / Sliding Cases … 10-11 energy saving mode SAVING Safety Ice Making Compartment … 12-13 Versa Compartment …...
If the power cord is damaged, purchase a new cord from Sparks from an electrical contact may cause an MITSUBISHI ELECTRIC SERVICE CENTER or its service ignition and fire. agent. Make sure that the power cord is designed for this model.
Page 5
If an abnormality or malfunction occurs, stop operation immediately and contact the retail store where you purchased the refrigerator or MITSUBISHI ELECTRIC SERVICE CENTER or its service agent. Warning Caution When Using When Installing/Carrying the Refrigerator Do not use in a shed or garage.
If the power cord is damaged, purchase a new cord from MITSUBISHI ELECTRIC SERVICE CENTER or its service agent. Make sure that the power cord is designed Do not install the refrigerator for this model, in order to avoid a hazard.
Page 7
Adjustment and Anchoring (To prevent vibration, noise, movement, and doors left ajar) Turn the adjustable supports so that they touch the floor and anchor them so that the refrigerator will not move. Turn the adjustable supports in the Bottom front of refrigerator arrow direction until they touch the floor.
How to Use the Operation Panel will cause the operable icons to light up. Touching To save power, all displays other than are usually turned off (it turns off if there is no operation for about 30 seconds). When operating, be sure to touch the buttons with your fingers. ECO GUIDE Detail Setting The refrigerator's ECO level is...
Operation Example (When Setting Supercool chilling) Touch When you keep the door of the refrigerator open, touch for about 1 second. (until the buzzer sounds once) Operable icons light Detail Setting Touch the icon to set Pages 21 - 25 Here touch The text above the touched icon lights up.
Interior Light Refrigerator Compartment About 0°C to 6°C MR-WX53Z and WX61Z: Use 10 LEDs. MR-WX70C: Use 6 LEDs. Separate Glass Shelf If the interior light is damaged, contact MITSUBISHI ELECTRIC SERVICE The height of the wide shelf can be changed on the left and right sides.
Page 11
Sliding Cases At the time of purchase, the lower case is not set to Supercool chilling. When setting Supercool chilling, use the following settings. Upper Case Lower Case Supercool chilling can be set with • Processed food such as sausage, ham and dairy products can be preserved.
Compartment Introduction Ice Making Compartment If water is put into the refrigerator compartment's water tank, ice will be made in the ice making compartment. Clean the ice maker periodically to ensure that the ice is pure and delicious. Pages 26 - 27 Water Tank Tank Cap (About 1.2L)
Page 13
Quick Ice Making RAPID ICE RAPID (Quick Ice Making) The ice making time for a single batch can be shortened. Touch on the operation panel Repeatedly touch to display Pages 21 - 22 RAPID Repeatedly touch to light up The display changes each time the button is touched.
Compartment Introduction Versa Compartment The versa compartment can be switched between “Soft-Freezing” and “Freezer.” Placing food in the versa compartment and using “S-COOL FREEZE” or “HOT FREEZE” mode allows food to be frozen without losing its taste and texture. Soft-Freezing / Supercool Freezing ...
Page 15
To Use Supercool Freezing on Hot Cooked Foods such as Freshly Cooked Rice, Curry, and Sauces Hot or warm cooked foods such as freshly cooked rice, curry, and Hot freezing sauces can be deliciously frozen. It can also be used to cool the food just after cooking. Place food in the versa compartment before setting.
Page 16
Freeze foods with their original flavors. The frozen foods do not have to be thawed before being consumed. Food can be frozen, while preserving its taste and texture. Significantly reduces dripping Things unsuitable for freezing such as Freshly cooked rice can during thawing and the loss potatoes and bamboo shoots can be also be frozen while hot...
Soft-Freezing / Supercool Freezing Handy Tricks for Supercool Freezing Can preserve for 2 to 3 weeks Raw food that is difficult to cut Make meals quickly when you are busy Plus it is easy to use can be easily cut in the morning Whitebait Lemon Slices...
S-COOL Vegetable Case (Lower) The orange LED Door side If the orange LED is damaged, contact MITSUBISHI ELECTRIC SERVICE CENTER or its service agent for the replacement, in order to avoid a hazard. Side view (cross-section) Clean tray (MR-WX70C only)
Energy Saving Mode This mode learns each family's method of use and operates with the optimal state for each compartment. An appropriate timing is selected for each compartment and Energy the energy saving mode is performed automatically with a slightly high temperature setting. Saving To Set Mode...
Detail Setting Performing Temperature Adjustment The temperature of each compartment can be adjusted. Use the refrigerator, freezer, and vegetable compartments set to "M" usually. Use the versa compartment in your preferred setting. This is displayed when setting the temperature of Temperature Adjustment the versa compartment.
Page 22
Detail Setting Performing Temperature Adjustment (Continued) Ice Making Compartment Settings Vegetable Compartment Temperature Settings The display changes each time is touched. The display changes each time is touched and temperature can be set to 5 different levels to keep vegetables moist. Operation Panel Application Compartment...
Detail Setting RAPID COOL When storing a large amount of food, protect the food's freshness by rapidly cooling it. When set: Blinking Light on When cancelled: Light on Blinking RAPID COOL Swiftly cool compartments (Refrigerator, Freezer, and Vegetable Compartments). when their doors are opened and closed To Set...
Detail Setting Power Save Mode The cold air in unused compartments is saved, allowing energy to be positively saved. Power Save Mode This function reduces 2 3 4 3 freezing capability of the ice Blinks while being set. making compartment and After setting is completed, versa compartment for the it lights up.
Page 25
Food that Can be Stored in Power Save Mode In Power Save Mode, food will be preserved between about -10°C and 0°C, so it is well suited to the preservation of foods such as dry goods and grains. Dry goods……......Coffee beans, seaweeds, nuts, dry noodles (pasta, vermicelli, fine noodles, etc.) etc. Seasonings……......Salt, sugar, spice powder, etc.
Page 26
Tank Cap Cleaning the Automatic Ice Maker To prevent the growth of limescale and mold, clean periodically. Do not use a dishwashing machine, because it may deform the parts. Tank Pipe Do not use the following for cleaning ・Items such as sponges or scrubbers that may Water Supply Pump Water Tank damage surfaces...
Page 27
Water Supply Pipe and Tank Holder Ice Tray Once a month 1 to 2 times a year Before cleaning, make sure to set "Stop Ice Pull out the water supply Water Pages 21 - 22 Making." pipe and wipe the tank Supply Pipe holder with a clean cloth.
Cleaning Removing and Cleaning the Parts Remove the power plug before cleaning. Do not disassemble, repair, or alter. Otherwise an electric shock or injury may result. Do not use while parts are damaged. Doing so may cause injury, electric shock, or fire. Remove plug Prohibited * After cleaning, wait at least 10 minutes before reinserting the power plug into the socket.
Page 29
3 Using the gap between the refrigerator compartment and door, rotate the glass shelf (lower) and remove from the refrigerator. (MR-WX53Z, MR-WX61Z) Pull out to the front using both hands until making contact with the tabs. Lift the front of the shelf to remove the tabs.
Cleaning Removing and Cleaning the Parts (Continued) Adjustable Pocket (Large) (Small) / Bottle Pocket (Large) (Small) 1 Lift up the left and right of the pocket alternately. * The pockets are firmly installed. 2 Pull out to the front. Adjustable Pocket Bottle Pocket Be careful when attaching and removing the pocket.
Page 31
Ice Making Compartment and Versa Compartment Case 1 Fully pull out the door. 2 Lift the case out to the front. * The illustration represents the versa compartment. Remove the ice making compartment in the same manner. Freezer Compartment and Vegetable Compartment Case 1 Fully pull out the door.
Other Issues (Power Outages, Child Safety Lock, Setting Reset, When Lights Up) Power Outages Minimize the frequency of opening the doors, and avoid adding more food. Operation panel settings other than the temperature settings may change. Check the settings. (Child Safety Lock, etc.) To Prevent Accidental Button Operation (Child Safety Lock)
Other Issues (Door Alarm, Mark, When Not Using the Refrigerator for a Long Time) When the Door Alarm Sounds and the Interior Light of the Refrigerator Compartment Blinks (Door Alarm) The door alarm (with alarm sound, interior light, and compartment display) is activated when a door is open for 1 minute or longer.
Other Issues (To Move or Carry the Refrigerator) To Carry the Refrigerator Empty any water or ice from the water tank, ice tray, and ice storage Drainage Pages 26 - 27 box. port Wear protective gear (gloves). Remove the adjustable support cover, and then rotate and raise the adjustable supports.
Other Issues (Temperature Fine Adjustment Mode) To Control the Temperature More Precisely (Temperature Fine Adjustment Mode) The temperature can be set to 19 different levels for the refrigerator compartment and freezer compartment, while it can be set to 24 different levels for the versa compartment (5 levels when set to Soft-Freezing and 19 different levels for Freezing).
Troubleshooting Before contacting MITSUBISHI ELECTRIC SERVICE CENTER or its service agent or making a repair request, check the following. If the problem persists, contact the retail store where you purchased the refrigerator as soon as possible. Frequently asked questions in the initial period and in summer The refrigerator does not cool at all! In Versa Compartment...
Page 37
Problem Check Explanation and Action Set the temperature of versa compartment to “FRZ•L” Overcooling Is the temperature setting of versa or “FRZ•M”. Page 22 compartment set to “FRZ•H”? in the freezer compartment, though the temperature setting of freezer compartment is set to “...
Page 38
Troubleshooting (Continued) Problem Check Explanation and Action It takes 4 to 5 hours for the refrigerator to cool, and Has enough time passed after Cannot make ice 24 hours or more in summer to make ice. installation? Water in the tank Remove food or other objects from the ice storage box.
Page 39
Problem Check Explanation and Action Cancel the Child Safety Lock. The operation Page 32 lit? panel does not Wipe off the moisture and dirt on the operation panel Are the user's fingers or the operation respond and fingers. panel wet or dirty? Let your finger off the operation panel once and then touch Are you repeatedly touching it? it again.
Specifications T his appliance is designed for use MR-WX53Z Model MR-WX70C in Singapore and Malaysia only and MR-WX61Z cannot be used in any other country. Parts Quantity Quantity No servicing is available outside of Glass Shelf (Upper) Singapore and Malaysia.
Page 84
Mitsubishi Electric Building, Singapore 159943 Head Office: Tel. 473-2308 URL: www.MitsubishiElectric.com.sg SOLE AGENT in Malaysia MITSUBISHI ELECTRIC SALES MALAYSIA SDN. BHD. Lot 11, Jalan 219, PO Box 1036, 46860 Petaling Jaya, Selangor Darul Ehsan, Malaysia Tel. 03-7955 2088 Fax. 03-7958 2576 Service Hotline: 03-7955 3997 URL: www.mitsubishielectricmalaysia.com...
