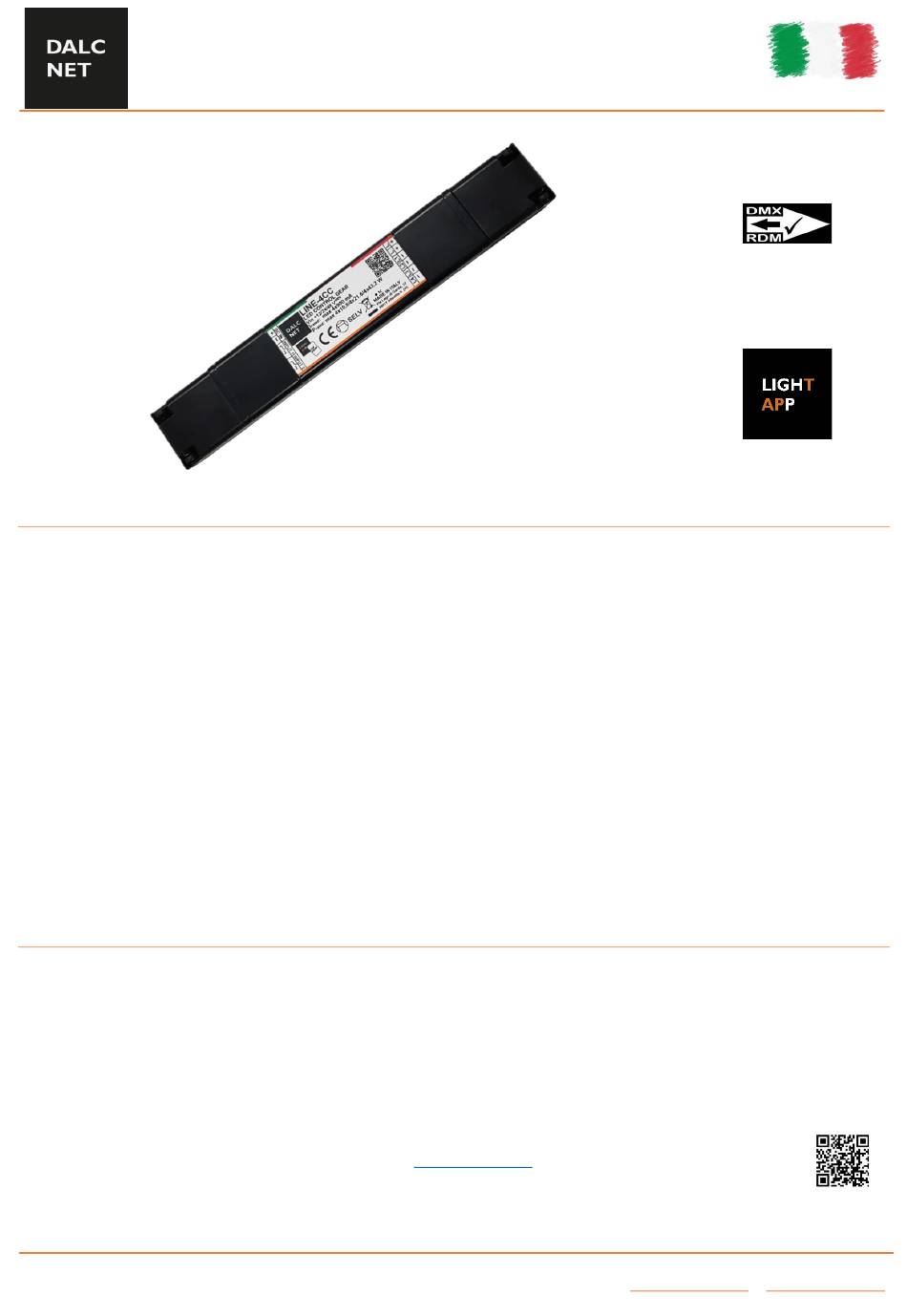

DALCNET LINE-4CC Device Manual

FEATURES
 DIMMER LED
 Power Input: 12-24-48 Vdc
 Constant Current Output for dimmable spotlights and LED modules
 WHITE, SINGLE COLOUR, TUNABLE WHITE, RGB, and RGB+W Light Control
 Local Control: Up to two Normally Open (N.O.) buttons
 Device configuration via Dalcnet LightApp© mobile application
 Constant voltage outputs for R-L-C loads
 PWM modulation can be set from 300 to 3400 Hz
 Parameters that can be set by APP:
PWM Frequency
o
Fade Time
o
Power-ON levels
o
Push-ON levels
o
Dimming speed
o
 Input Protection
 Soft ON/OFF
 Soft brightness dimming
 Extended temperature range
 100% Functional test
PRODUCT DESCRIPTION
LINE-4CC is a PWM (Pulse With Modulation) Constant Current (CC) LED dimmer with 4 output channels and controllable locally by
Normally Open (N.O.) buttons. It can be connected to a constant voltage (12 ÷ 48) Vdc SELV power supply and is suitable for
driving loads such as Spotlight and white, single-colour, Tunable White, RGB and RGB+W constant current LED modules.
LINE-4CC can deliver a maximum output current of 900 mA per channel and has the following protections: over-power protections,
reverse polarity protection, and input fuse protection.
Through the Dalcnet LightApp© mobile application and smartphone equipped with Near Field Communication (NFC) technology, it
is possible to configure (with the device switched OFF) multiple parameters including modulation frequency, adjustment curve and
maximum/minimum brightness levels. Dalcnet LightApp© can be downloaded free of charge from the Apple APP Store and Google
Play Store.
⇢ For the up-to-date manual, please consult our website
DALCNET S.r.l.
36077 Altavilla Vicentina (VI) – Italy
Via Lago di Garda, 22
LINE-4CC
Device Manual
www.dalcnet.com or QR Code.
Made in Italy
Tel. +39 0444 1836680
www.dalcnet.com – info@dalcnet.com
Rev. 28/06/2024 - Pag. 1/20
