FEATURES
DIMMER LED
Power Supply: 12-24-48 Vdc
Voltage Output for strip LED and LED module
WHITE, SINGLE-COLOR, DIM-TO-WARM, TUNABLE-WHITE, RGB, RGB+W and RGB+TW Light Control
Local Control: Up to two N.O. (Normally Open) buttons
Device configuration via Dalcnet LightApp© mobile application
Constant voltage outputs for R loads
PWM modulation can be set from 300 to 4000 Hz
Parameters that can be set by APP:
PWM Frequency
o
Fade Time
o
Power-ON levels
o
Push-ON levels
o
Dimming speed
o
Short-circuit protection on LED outputs
Soft ON/OFF
Soft brightness dimming
Extended temperature range
100% Functional Test
PRODUCT DESCRIPTION
LINE-5CV is a 5-channel PWM (Pulse With Modulation) Constant Voltage (CV) LED dimmer, which can be connected to a constant
voltage (12 ÷ 48) Vdc SELV power supply and is suitable for driving loads such as Strip LEDs and White, single-color, Tubable
White, RGB, RGB+W and RGB+TW LED modules at constant voltage and controllable by N.O. (Normally Open) buttons.
LINE-5CV can deliver a maximum output current of 12 A and has the following protections: short-circuit protection on LED outputs,
over-power protection, reverse polarity protection, and input fuse protection.
Through the Dalcnet LightApp
is possible to configure multiple parameters including dimming frequency, dimming curve and maximum/minimum brightness
levels when the device is switched off. Dalcnet LightApp
Play Store.
⇢ For the up-to-date manual, please consult our website
smartphone
DALCNET S.r.l.
36077 Altavilla Vicentina (VI) – Italy
Via Lago di Garda, 22
©
mobile application and smartphone equipped with Near Field Communication (NFC) technology, it

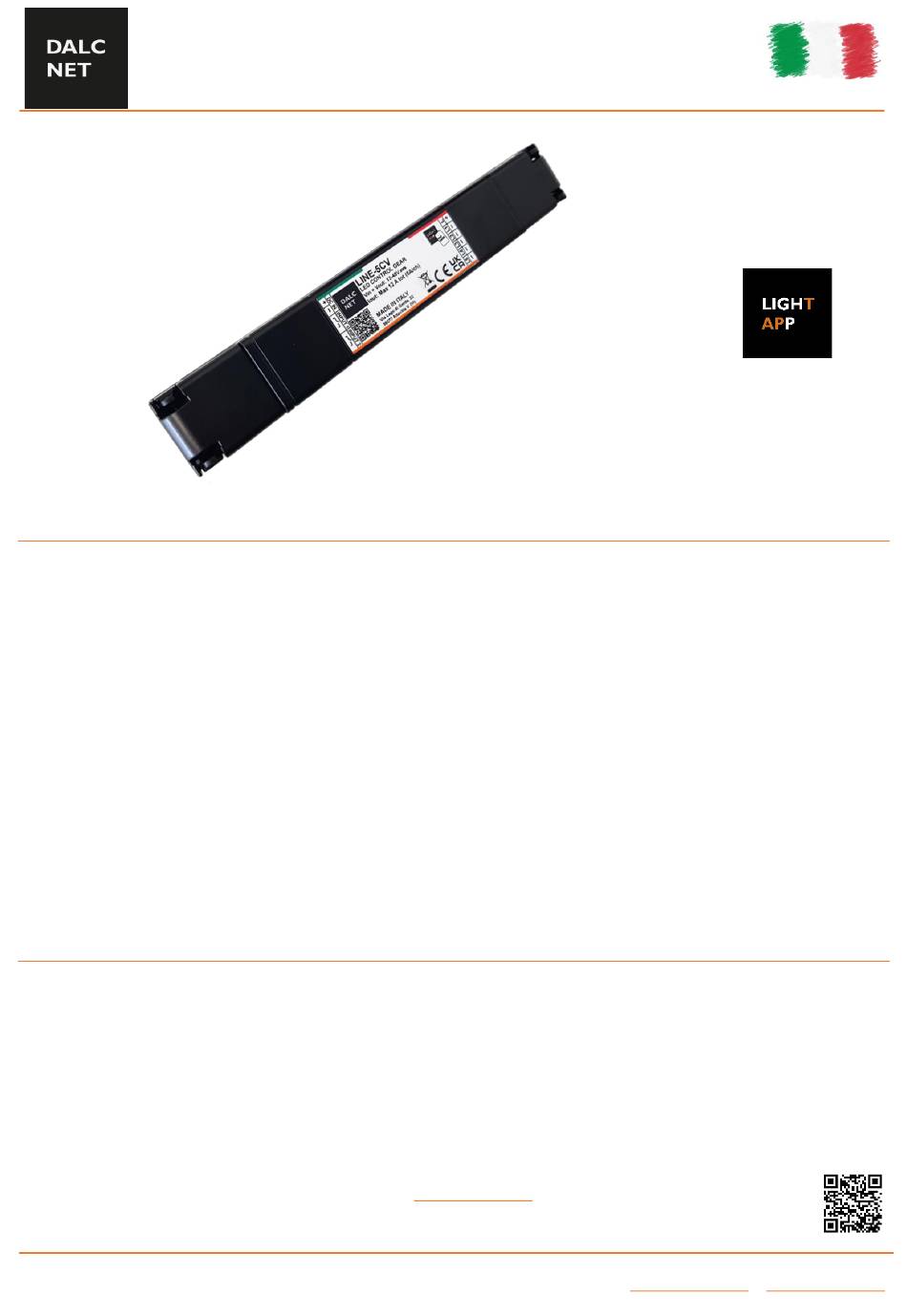

LINE-5CV
Device Manual
can be downloaded free of charge from the Apple APP Store and Google
©
www.dalcnet.com
or scan the QR Code from your
Made in Italy
Tel. +39 0444 1836680
www.dalcnet.com
–
info@dalcnet.com
Rev. 23/04/2024 - Pag. 1/20
Advertisement
Table of Contents
Related Manuals for DALCNET LINE-5CV
Summary of Contents for DALCNET LINE-5CV
- Page 1 PRODUCT DESCRIPTION LINE-5CV is a 5-channel PWM (Pulse With Modulation) Constant Voltage (CV) LED dimmer, which can be connected to a constant voltage (12 ÷ 48) Vdc SELV power supply and is suitable for driving loads such as Strip LEDs and White, single-color, Tubable White, RGB, RGB+W and RGB+TW LED modules at constant voltage and controllable by N.O.
-
Page 2: Product Code
Short-Circuit Protection L1, L2, L3, L4, L5 Table 2: Detection and Protection functionalities REFERENCE STANDARDS LINE-5CV complies with the regulations shown in the table below. STANDARD TITLE EN 55015 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar... -
Page 3: Technical Specifications
LINE-5CV Device Manual Made in Italy TECHNICAL SPECIFICATIONS PARAMETERS VALUES (12, 24, 48) Vdc Supply Voltage Nominal (V Power Supply Range (V ÷ V (10,8 ÷ 52,8) Vdc Efficiency at full load > 95% Power consumption awaiting command (standby) < 0,5 W... -
Page 4: Installation
LED load) to the "+" and "-" terminals of the DC IN terminal. ONNECTION LINE-5CV has 5 output channels that can be driven independently (e.g. for single-color LED strips) or depending on the RGB value or white light temperature (e.g. for RGB, RGBW, RGBTW, Dim-to-Warm and Tunable-White LED modules). - Page 5 LINE-5CV Device Manual Made in Italy Figure 3: Connection diagram for Tunable White LED loads RGB LED L IAGRAM FOR Figure 4 shows the connection diagram suitable for driving a single RGB LED load. The output channels used in this configuration are L1 (Red), L2 (Green), and L3 (Blue).
- Page 6 ONNECTION LINE-5CV can be powered by a 12 Vdc, 24 Vdc or 48 Vdc constant voltage SELV power supply, depending on the operating voltage of the LED load. Once the load and Local Control are connected, connect the power supply to the "+" and "-"...
- Page 7 Made in Italy LOCAL CONTROL: PUSHBUTTONS LINE-5CV has two dry contacts inputs for N.O. pushbuttons, through which different operating parameters can be managed. Each action on the pushbuttons activates a specific function for the type of control selected via LightApp ©...
- Page 8 LINE-5CV Device Manual Made in Italy ACTION INPUT # LOAD FUNCTION Quick RGB LED module ON/OFF Input 1 press TUNABLE Tunable White LED module ON/OFF Input 2 WHITE Double Input 1 Start Colour Rotation (a quick press to stop rotation)
- Page 9 LINE-5CV Device Manual Made in Italy ACTION INPUT # LOAD FUNCTION Pressione prolungata TUNABLE Input 2 Brightness adjustment (Dimming) of the White light on LED module N° 1 WHITE 2 Table 9: Pushbutton functionality for "2 Push - CCT+CCT" “P ”...
-
Page 10: Dimming Curves
Figure 10: Flickering Perception Threshold THERMAL CHARACTERIZATION Operating Temperature Window Figure 11 shows the maximum output current values OUT max that can be provided by the LINE-5CV as a function of the operating temperature (or ambient temperature, TA) of the operation, summarized below: ... -
Page 11: Mechanical Dimensions
LINE-5CV Device Manual Made in Italy MECHANICAL DIMENSIONS Figure 13 details the mechanical measurements and the overall dimensions [mm] of the outer casing. Figure 13: Mechanical dimensions Institute of Electrical and Electronics Engineers (IEEE). IEEE std 1789: Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers. -
Page 12: Technical Notes
LINE-5CV Device Manual Made in Italy TECHNICAL NOTES NSTALLATION ATTENTION! Installation and maintenance should always be carried out in the absence of DC voltage. Before proceeding with the installation, adjustment and connection of the device to the power supply, make sure that the voltage is disconnected from the system. -
Page 13: Legal Notes
ERMS OF Dalcnet (hereinafter referred to as "the Company") reserves the right to make changes to this device, in whole or in part, wi thout prior notice to the customer. Such changes may affect technical aspects, functionality, design, or any other element of the device. The company is not required to notify you of such changes and that your continued use of the device will constitute your acceptance of the changes. - Page 14 Made in Italy LIGHTAPP LightApp © is the official Dalcnet application through which it is possible to configure, in addition to the functions of the LINE-5CV, also all the different Dalcnet products equipped with NFC technology. Dalcnet LightApp © can be downloaded free of charge from the Apple App Store and Google Play Store.
-
Page 15: Loading Parameters
LINE-5CV Device Manual Made in Italy IRMWARE On the firmware page, you can update the firmware of your device. The requested file must be of type .bin. Once the file has been uploaded, simply follow the on-screen instructions. ATTENTION: ... - Page 16 Control type: allows you to select the type of control to be assigned to the device (see next paragraph). ONTROL YPES Within the "Control Type" configuration it is possible to select from 7 types of controls available for LINE-5CV Independent Channels 2 push - RGB/RGBW 2 push - RGB+TW 2 push - CCT...
- Page 17 LINE-5CV Device Manual Made in Italy NDEPENDENT HANNELS Power-On Level: this is the intensity value to which the output is brought as soon as the device is powered. Last Level: Enable the memory function. The Power On level will correspond to the last level assumed before the power supply was removed.
- Page 18 LINE-5CV Device Manual Made in Italy - RGB+TW Power-On Level: Sets the RGB and white light levels to which the output is brought as soon as the device is powered. The RGB and intensity parameters can be set via the "Change"...
- Page 19 LINE-5CV Device Manual Made in Italy - CCT+CCT The parameters that can be set in mode 2 Push - CCT+CCT are identical to those set in mode 2 Push - CCT (refer to the previous paragraph). For assigned button functions, refer to the §Pushbutton Functionality for “2 Push - CCT+CCT” section.
- Page 20 LINE-5CV Device Manual Made in Italy NIMATION Power-On Level: Sets the RGB and white light levels to which the output is brought as soon as the device is powered. The RGB and intensity parameters can be set via the "Change" submenu.
