System 1
1922
DOP.22012601
DOP.22012602
21
ML-2310
ML-2311

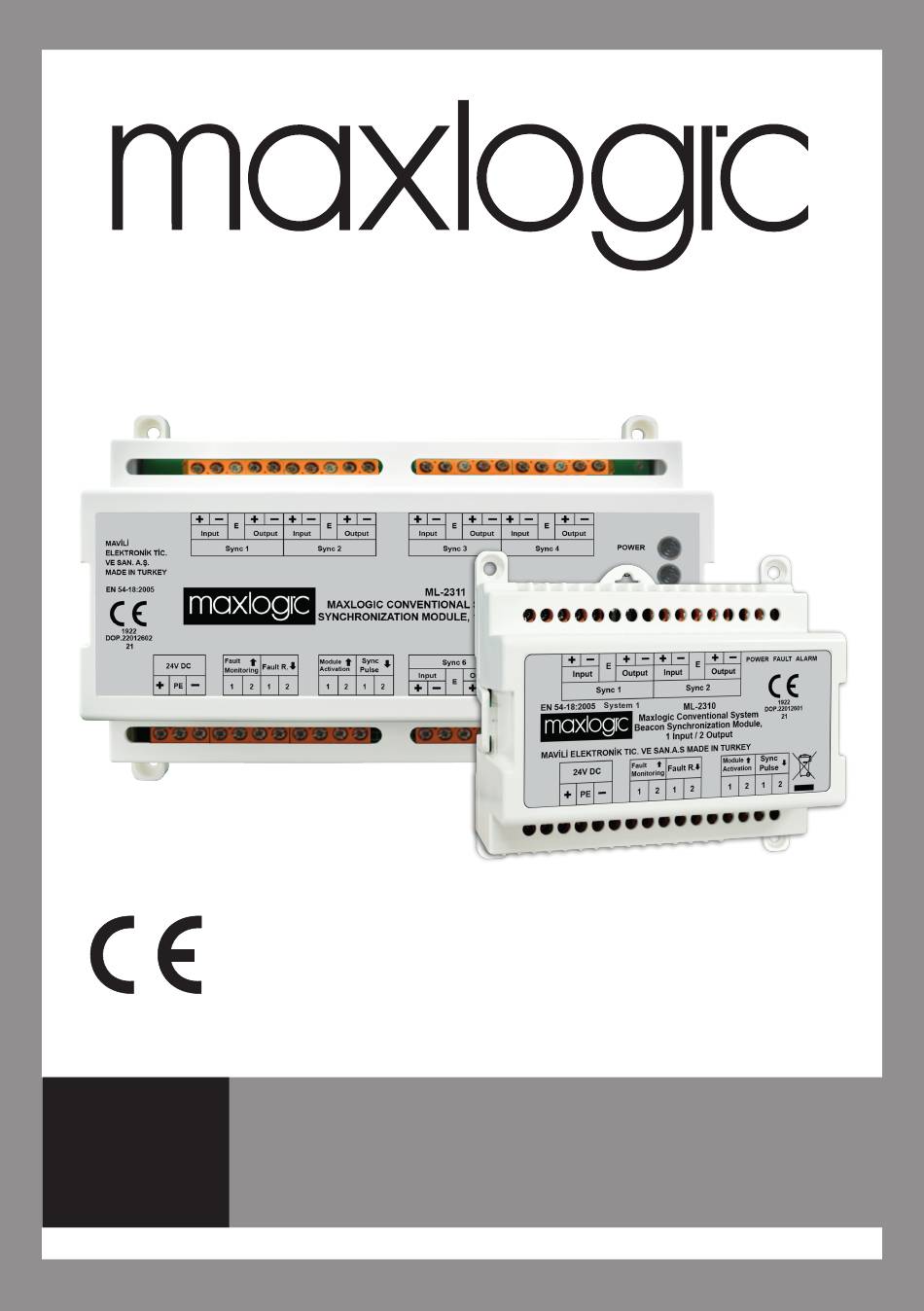

COMMISSIONING, OPERATING
AND MAINTENANCE MANUAL
MODEL: MAXLOGIC SERIES
SUB MODEL: Maxlogic Conventional
System Beacon Synchronization Modules

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAXLOGIC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mavili MAXLOGIC Series

Summary of Contents for mavili MAXLOGIC Series

  • Page 1 System 1 1922 DOP.22012601 DOP.22012602 COMMISSIONING, OPERATING AND MAINTENANCE MANUAL ML-2310 MODEL: MAXLOGIC SERIES ML-2311 SUB MODEL: Maxlogic Conventional System Beacon Synchronization Modules...

  • Page 2: General Information

    GENERAL INFORMATION Maxlogic conventional system beacon synchronization modules are designed to enable beacons to operate in a zonal synchronized operation. There are two different models as ML-2310 and ML-2311. ML-2310 model has one module activation input and two synchronous drive outputs. ML-2311, has one module activation input and six synchronous drive outputs. The Maxlogic&Mavigard Conventional Panel is designed to work with Addressable Panels and Gas Panels.

  • Page 3: Technicial Specifications

    MECHANICAL INSTALLATION The mounting of the device is made to a 35mm DIN rail system with the rail mechanism behind the device. ENCOUNTERED PROBLEMS • Wrong cable connections, • Open or short circuit of inputs or outputs causes the system to malfunction or faults. TECHNICIAL SPECIFICATIONS Product ML-2310...

  • Page 4: Installation

    INSTALLATION Figure-1: ML-2310 Dimensions Step1 Step2 System 1 1922 DOP.22012601 Rail System 100 mm 11 mm 41 mm 90 mm Mounting holes Figure-2: ML-2311 Dimensions 158 mm 52 mm 38 mm 11 mm System 1 1922 DOP.22012602 KK-633.024 Rev.No:3 20.12.23 ML-231X User Manual...
  • Page 5 Figure-3: ML-2310 Cable Connection ¹ Panel ¹ Panel Sounder Sounder Output Output ² Beacon ² Beacon 1922 System 1 DOP.22012601 Slave: ML-2310 / ML-2311 Synchronization Output Fault Relay ³ Alarm Relay 24V DC 1) Panel Sounder Output or ML-137X Sounder Output 2) ML-2420, ML-2450, ML-2470 Beacons (Max.
  • Page 6 Figure-4: ML-2311 Cable Connections ¹ Panel ¹ Panel ¹ Panel ¹ Panel Sounder Sounder Sounder Sounder Output Output Output Output ² ² ² ² Beacon Beacon Beacon Beacon System 1 1922 DOP.22012602 ³ Alarm Relay ² ² Beacon Beacon ¹ Panel ¹...
  • Page 7 Manufacturer Firm: MAVİLİ ELEKTRONİK TİCARET VE SANAYİ A.Ş. Address: ŞERİFALİ MAHALLESİ, KUTUP SOKAK NO: 27/1-2-4 ÜMRANİYE / İSTANBUL TEL: +90 216 466 45 05 FAX: +90 216 466 45 10 Web: www.mavili.com.tr Authorized Service Title, Address Details Authorized Service: TEKSİS TEKNİK ELEKTRONİK SİS. TİC. VE SAN. A.Ş.
