OWNER'S MANUAL

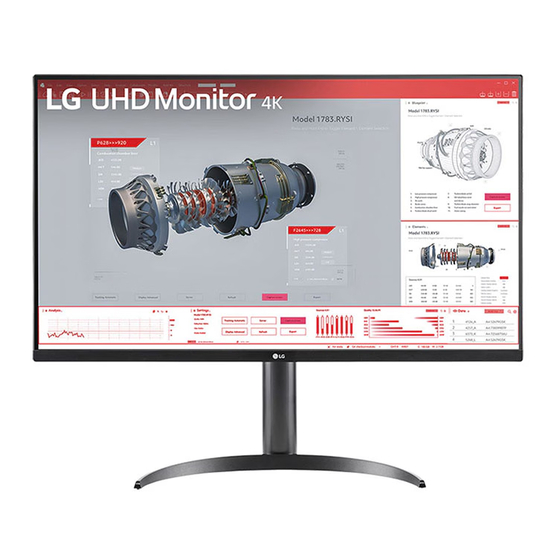

LED LCD MONITOR
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
32BR55U
32UR550
32UR500
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di Monitor
LG 32BR55U-B
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
o
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG 32BR55U-B
Summary of Contents for LG 32BR55U-B
- Page 1 Monitor OWNER’S MANUAL LED LCD MONITOR (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 32BR55U 32UR550 32UR500 www.lg.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 OPEN SOURCE SOFTWARE NOTICE The terms HDMI, HDMI High-Definition Multimedia Interface, and INFORMATION ..........3 the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Page 3: Open Source Software Notice
The power cord provided may differ depending upon the region. other relevant documents, please visit https://opensource.lge.com. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing Supported Drivers and Software such distribution (such as the cost of media, shipping, and handling) upon email request to ... -
Page 4: Product And Button Description
Product and Button Description Moving and Lifting the Monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •... -
Page 5: Installing On A Table
32BR55U/32UR550 32BR55U/32UR550 Installing on a Table Adjusting the Stand Height • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.94 Place the monitor mounted on the stand base in an upright position. 32UR500 inches) away from the wall to ensure sufficient ventilation. -
Page 6: Adjusting The Angle
Adjusting the Angle Using the Kensington Lock 32BR55U/32UR550 The connector for the Kensington security system is located at the back of the monitor. 32UR500 Place the monitor mounted on the stand base in an upright position. For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website Adjust the angle of the screen. -
Page 7: Installing The Wall Mount Plate
• A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a for any accidents relating to the use of non-standard screws. - Page 8 • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. • Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
-
Page 9: Using The Monitor
CAUTION HDMI Connection • If you use generic cables not certified by LG, the screen may not display or there may be image noises. Transmits digital video and audio signals from your PC to the monitor. • Do not press the screen for a prolonged time. This may cause image distortion. -
Page 10: Displayport Connection
Connecting AV Devices DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. HDMI Connection NOTE HDMI transmits digital video and audio signals from your AV device to the monitor. • There may be no video or audio output depending on the DP (DisplayPort) version of the PC. •... -
Page 11: Connecting Peripherals
Connecting Peripherals CAUTION • Cautions when using a USB device. USB Device connection - A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognized. The USB port on the product functions as a USB hub. - Some USB devices may not be supported or may not work properly. -
Page 12: Headphones Connection
Headphones Connection Connect peripherals to the monitor via the headphones port. NOTE • Peripheral devices are sold separately. • Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited. • If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones. -
Page 13: User Settings
USER SETTINGS NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. • When Beep Guide is activated, pressing the joystick button will take you to Settings right away. • Main menu disabled: Enables the main menu. Activating the Main Menu •... -
Page 14: Main Menu Features
Main Menu Features Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the [Settings]. Move the joystick up/down and left/right to set the options. To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it. - Page 15 [Quick Settings] [Input] [Settings] [Quick Settings] [Settings] [Input] • [Brightness]: Adjusts the brightness of the screen. • [Input List]: Selects the input mode. • • [Contrast]: Adjusts the contrast of the screen. [Aspect Ratio]: Adjusts the aspect ratio of the screen. The display may look the same for [Full Wide] and [Original] options at the recommended resolution (3840 x 2160).
- Page 16 [Picture] [Picture Mode] on HDR signal • [Custom]: Allows the user to adjust each element. [Settings] [Picture] [Picture Mode] • [Vivid]: Optimized the screen for HDR vivid colors. • [Cinema]: Optimized the screen for HDR video. [Picture Mode] on SDR (Non HDR) signal •...
- Page 17 [Settings] [Picture] [Picture Adjust] [Settings] [Picture] [Game Adjust] • • [Brightness]: Adjusts the brightness of the screen. [Response Time]: Sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use [Fast]. When there is a lot of motion, it is •...
- Page 18 [Settings] [Picture] [Color Adjust] [Settings] [Picture] [Picture Reset] • • [Gamma]: [Do you want to reset your picture settings?] - [Mode 1], [Mode 2], [Mode 3]: The higher the gamma value, the darker the image becomes. Likewise, the - [Yes]: Returns to the default settings. lower the gamma value, the lighter the image becomes.
- Page 19 [General] • [DisplayPort Version]: Set DisplayPort Version to the same version as the connected external device. ([1.4] and [1.2]) To use the HDR function, set to [1.4]. [Settings] [General] • [HDMI ULTRA HD Deep Color]:Provides sharper images when connected to a device supporting ULTRA HD Deep •...
-
Page 20: Troubleshooting
TROUBLESHOOTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? - Check if the power cord is correctly plugged into the power outlet. • Is the power LED on? - Check the power cable connection and press the power button. •... - Page 21 • Have you installed the display driver? - Be sure to install the display driver from our web site: http://www.lg.com. - Make sure to check if the graphics card supports Plug and Play function. No sound from the headphone port.
-
Page 22: Product Specification
5U/32UR550 PRODUCT SPECIFICATION 00/32UN500P 32UR500 32UR550 32UN50A/32UN50AP 32BP57U Color Depth 8-bit / 10-bit color is supported. Max Resolution 3840 x 2160 @ 60 Hz 50/32UN550P 32UN55B Resolution Recommended Resolution 3840 x 2160 @ 60 Hz Power Rating 19 V 2.4 A On mode: 45 W Typ. - Page 23 Monitor Size (Width x Height x Depth) 32UR500 32UR550 714.3 x 512.0 x 223.3 (mm) 714.3 x 597.1 x 239.3 (mm) With Stand Dimensions 28.1 x 20.1 x 8.7 (inches) 28.1 x 23.5 x 9.4 (inches) 714.3 x 420.1 x 45.7 (mm) 714.3 x 420.1 x 45.7 (mm) Without Stand 28.1 x 16.5 x 1.7 (inches)
- Page 24 PRODUCT SPECIFICATION 32UN500/32UN500P 32UR500 32UR550 32UN50A/32UN50AP 32BR55U 32BP57U 32UN550/32UN550P 32UN55B Color Depth 8-bit / 10-bit color is supported. Max Resolution 3840 x 2160 @ 60 Hz Resolution Recommended Resolution 3840 x 2160 @ 60 Hz Power Rating 19 V 7.0 A On mode: 31 W Typ.
-
Page 25: Factory Support Mode (Preset Mode, Pc)
Factory Support Mode (Preset Mode, PC) Display Port / USB-C (for 32BR55U) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 67.5 2560 x 1440 88.79... -
Page 26: Hdmi Timing (Video)
HDMI Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 67.5 2560 x 1440 88.79 59.95 HDMI Preferred timing, HDMI ULTRA HD Deep Color : Off 3840 x 2160 65.69 29.98... - Page 27 Beep Guide Menu Location Menu Location Menu Location Quick Settings Input - Aspect Ratio - Just Scan 2 2 3 Picture - Picture Adjust - Black Level - Low 3 2 5 2 Quick Settings - Brightness Picture Picture - Picture Adjust - DFC 3 2 6 Quick Settings - Brightness 1 1 1 Slider...
- Page 28 Menu Location Menu Location Menu Location 3 4 6 6 1 Picture - Color Adjust - Color Temp - Medium 3 4 2 3 General Picture - Color Adjust - Six Color - Blue Saturation Slider Picture - Color Adjust - Color Temp - Cool 3 4 2 4 General - Language Picture - Color Adjust - Six Color - Cyan Hue...
- Page 29 Menu Location Menu Location General - Power LED - Off 5 3 2 General - Reset to Initial Settings - No 5 11 2 General - Automatic Standby General - Automatic Standby - 8H 5 4 1 General - Automatic Standby - 6H 5 4 2 General - Automatic Standby - 4H 5 4 3...
- Page 30 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. (for 32BR55U) Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 E-mail lg.environmental@lge.com The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service.
