Siriusxm/Av/Radio - Boss Audio Systems Elite BE7ACP.WX User Manual

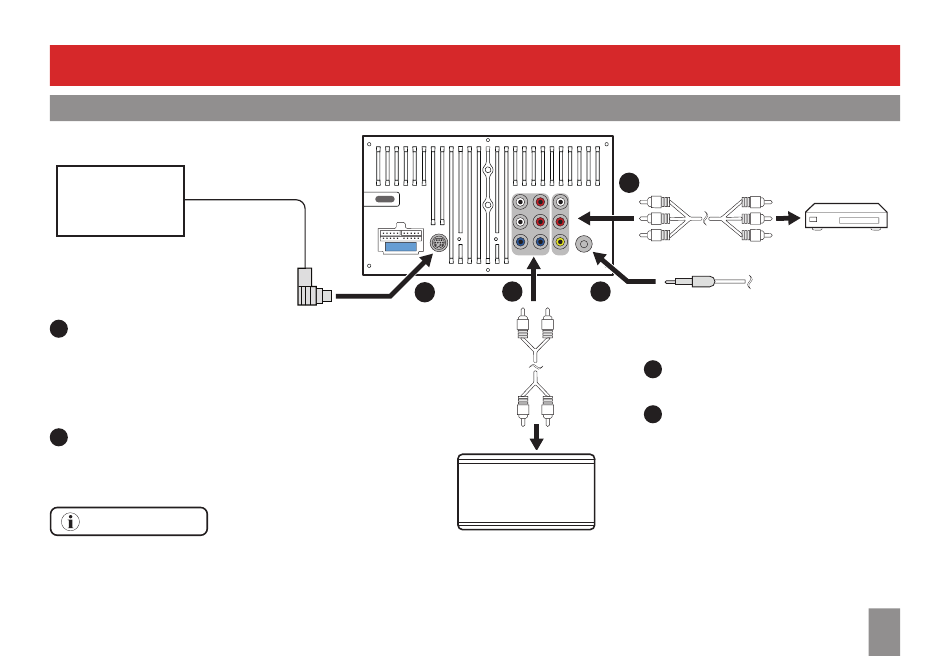

Connections

SiriusXM/AV/Radio

SiriusXM-Connect
Vehicle Tuner
1 Connect a SiriusXM-Connect Vehicle Tuner (not
included) before you can activate and receive
satellite radio.
For more information on how to install the
SiriusXM Vehicle Tuner, consult the SiriusXM
Vehicle Tuner Installation Guide.
2
Using RCA audio cables (not included), connect
the audio output on the unit to an external
amplifier (not included).
IMPORTANT NOTE
Subwoofer pre-amp is a non-fading mono output.
Always run signal wires away from power cables to
reduce the possibility of noise.
FL FR
SXM
RL RR
15
SUB1 SUB2
1 2
Pre-amp audio output
Front out (FL & FR)
Rear out (RL & RR)
Subwoofer out (SUB1 & SUB2)
Multi-channel/
monoblock amplifier
AV input
Audio in (L-IN & R-IN)
Video in (V-IN)
4
L-IN
R-IN
V-IN
RADIO
3
FM/AM antenna (not included)
3
Connect an FM/AM antenna (not included)
for better radio reception.
4
Using RCA audio cables (not included),
connect the audio input ("L-IN" and "R-
IN") on the unit to the audio output on an
external AV source.
Or using an RCA to 3.5mm/USB-C/lightning
adapter (not included), connect the audio
input ("L-IN" and "R-IN") to the audio output
on your mobile phone.
Using a yellow RCA cable (not included),
connect the video input ("V-IN") on the unit
to the video output on an external AV source.
External AV source
31
