Dual 1x30 fet multiplexer card

Advertisement

Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley
Introduction
The 3724 provides two independent banks of solid-state relays arranged as 1×30 two-pole multiplexers that are
ideal for high reliability, high speed multipoint measurement applications, including temperature. The two banks
can be automatically connected to the Series 3700A mainframe backplane and optional DMM through the analog
backplane connection relays. These connections allow the mainframe to configure the card to a single 1×60
two-pole multiplexer or to enable card-to-card expansion for even larger configurations.
The solid-state FET relay technology supports fast switching times, with scanning rates of greater than
1250 channels per second and provides unlimited contact life. In addition, the 3724 supports thermocouple
temperature measurements when used with the 3724-ST screw-terminal accessory, providing automatic cold
junction compensation (CJC).
The 3724 uses two 78-pin male D-sub connectors for signal connections. For screw terminal or automatic CJC,
use the detachable 3724-ST accessory. For more information regarding available cards and accessories, refer to
the Series 3700A System Switch/Multimeter and Plug-in Cards datasheet, available at tek.com/keithley.

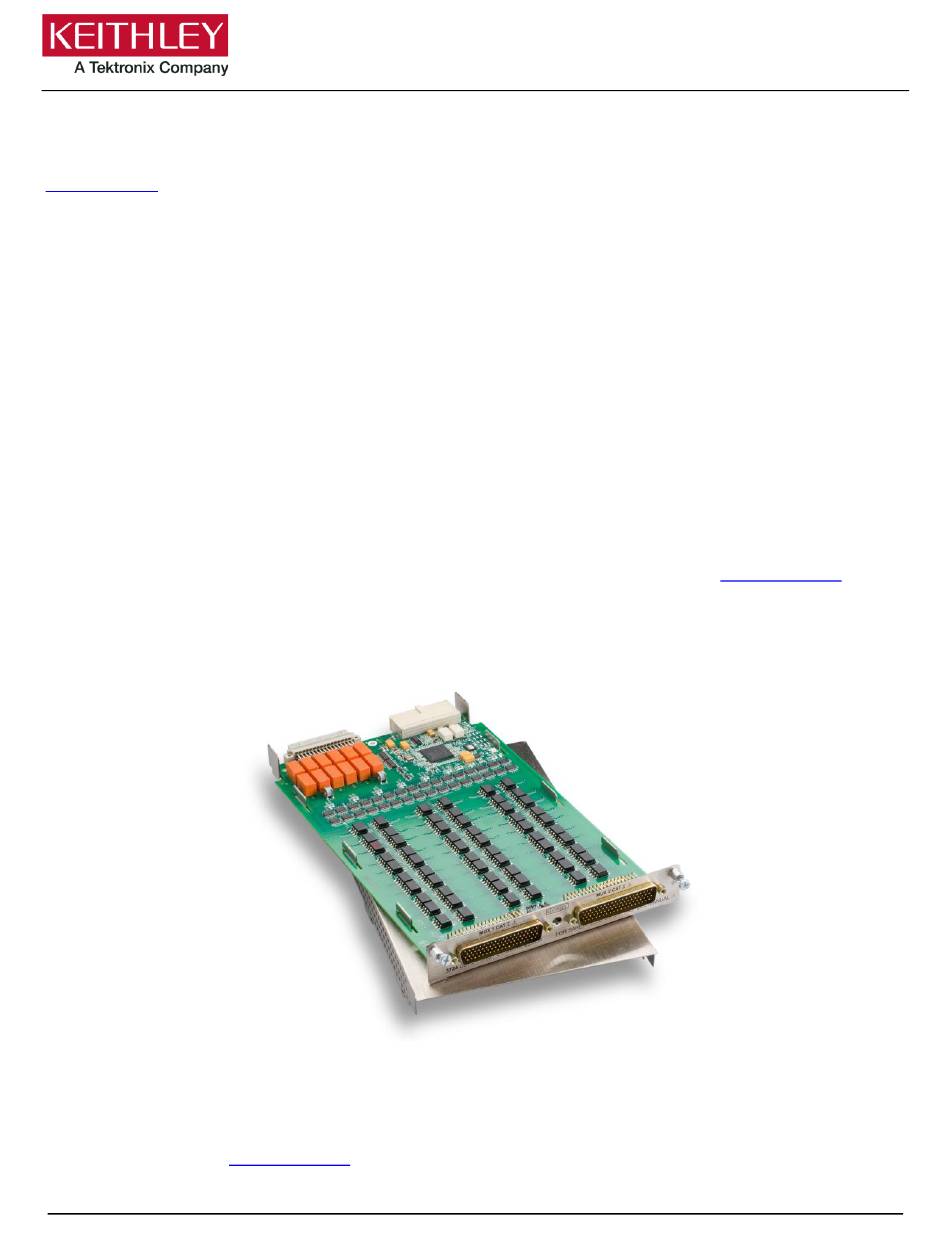

The 3724 card is shown in the following figure.
Item shipped may vary from model pictured here.
This document describes how to install the plug-in card and make connections to it. For information on scanning,
and on reading, writing, and controlling channels, refer to the Series 3700A System Switch/Multimeter Reference
Manual, available at tek.com/keithley.
077183700 October 2024
Model 3724 Dual 1×30 FET Multiplexer Card
Figure 1: Model 3724 Dual 1 x 30 Multiplexer Card
*P077183700*
Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEITHLEY 3724 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tektronix KEITHLEY 3724

  • Page 1 Model 3724 Dual 1×30 FET Multiplexer Card Keithley Instruments Instructions 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Introduction The 3724 provides two independent banks of solid-state relays arranged as 1×30 two-pole multiplexers that are ideal for high reliability, high speed multipoint measurement applications, including temperature. The two banks can be automatically connected to the Series 3700A mainframe backplane and optional DMM through the analog backplane connection relays.
  • Page 2: Card Installation

    Model 3724 Dual 1×30 FET Multiplexer Card Instructions Safety precautions for connections Shock hazard. To prevent electric shock that could result in serious injury or death, comply with these safety precautions. Connection information for plug-in cards is intended for qualified service personnel. Do not attempt to connect devices under test (DUTs) or external circuitry to a plug-in card unless you are qualified.
  • Page 3 Model 3724 Dual 1×30 FET Multiplexer Card Instructions To install a switching card into the instrument mainframe: 1. Turn the instrument off. 2. Position the instrument so that you are facing the rear panel. 3. Disconnect the power line cord and any other cables connected to the rear panel. 4.
  • Page 4 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Verify card installation To verify that the card was properly installed: 1. If the 3700A is controlled remotely (REM is displayed), press EXIT to switch control to local. 2. On the 3700A front panel, press SLOT. The name and firmware version of the instrument is displayed. 3.
  • Page 5: Connection Information

    Model 3724 Dual 1×30 FET Multiplexer Card Instructions The revision level of a pseudocard is always returned as 00.00 a. You can query the slot attributes to determine the capabilities of the installed switching modules. For example, send the following query to determine if slot 1 supports 4-wire commonside ohms channels: print(slot[1].commonsideohms) Refer to the Series 3700A System Switch/Multimeter Reference Manual for more information about using queries at tek.com/keithley.
  • Page 6 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Schematic The following figure provides a switching schematic for the Model 3724. Figure 4: Model 3724 schematic 077183700 October 2024...
  • Page 7 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Screw-terminal accessory The 3724-ST Screw-Terminal Accessory is shown in the following figure. The figure shows the high and low terminals and the locations of MUX1 and MUX2. Figure 5: Model 3724-ST Screw-Terminal Accessory 077183700 October 2024...
  • Page 8 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Wire the screw-terminal accessory These instructions describe how to connect wiring to a Series 3700A screw-terminal accessory. It is not necessary to remove a circuit board from its enclosure to wire the screw-terminal accessory.
  • Page 9 Model 3724 Dual 1×30 FET Multiplexer Card Instructions 4. As shown in the following figure, route your wiring through the slots at the rear of the screw-terminal accessory and connect it to the wiring terminals as described in Connection information (on page 5).
  • Page 10 Model 3724 Dual 1×30 FET Multiplexer Card Instructions 7. Slide the cover forward (1) and beneath the retaining tab (2), as shown in the following figure. 8. Fasten the two slotted captive screws (3). Figure 8: Install the screw-terminal assembly top cover Install the screw-terminal accessory Before using a screw-terminal assembly with an installed plug-in card, verify that the card is properly installed in the 3700A instrument and that the mounting screws are tightly fastened.
  • Page 11 Model 3724 Dual 1×30 FET Multiplexer Card Instructions 2. Make sure that the mounting screws (1 in the following figure) on the installed plug-in card are secure. Figure 9: Check 3700A card mounting screws 3. Align the screw-terminal assembly D-sub connectors with the connectors on the installed plug-in card, as shown in the following figure.
  • Page 12 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Remove the screw-terminal accessory To remove a screw-terminal accessory from an installed plug-in card: 1. Remove all power from the 3700A instrument. 2. Turn the knob on the screw-terminal accessory counter-clockwise until it is completely disengaged. You may need to use a slotted screwdriver to loosen the knob.
  • Page 13 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Pin number identification Pin number identification for the Model 3720-MTC-3 cables is shown in the following figure and table. Figure 12: Model 3720-MTC-3 connectors Connect drain wire to shield at both ends. Model 3720-MTC-3 pin number identification CONN 1 Color...
  • Page 14 Model 3724 Dual 1×30 FET Multiplexer Card Instructions CONN 1 Color CONN 2 CONN 1 Color CONN 2 White/black/green White/blue/violet White/black/blue White/blue/gray White/black/violet White/violet/gray White/black/gray White/black/brown/red White/brown/red White/black/brown/orange White/brown/orange White/black/brown/yellow White/brown/yellow White/black/brown/green White/brown/green White/black/brown/blue White/brown/blue White/black/brown/violet (spare) White/brown/violet Not connected White/brown/gray White/black/brown/gray White/red/orange...
  • Page 15: Measurement Considerations

    Model 3724 Dual 1×30 FET Multiplexer Card Instructions 3724 interlock pin numbers The following table shows the interlock pin numbers for the 3724 switch card. Interlock circuit Interlock pins Backplane relays affected Other relays affected Multiplexer #1 76, 78 n911 through n916 Multiplexer #2 76, 78 n921 through n926...
  • Page 16 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Maximum power usage with 3700A cards The 3700A plug-in cards can switch many relays at once, which can take a substantial amount of system power. The maximum power available in the 3700A is limited on a per-slot and per-bank basis, as shown in the following table.
  • Page 17 Model 3724 Dual 1×30 FET Multiplexer Card Instructions To determine how many relay operations can be performed, use the previous table to calculate the total power required by applying the following equation: + (N × P ) + (N × P Where: ▪...
  • Page 18 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Totals for each bank are calculated as shown in the following table. Slot 1 Slot 2 Slot 3 Total Bank 1 power consumed = 1750 1750 + 1750 5250 Slot 4 Slot 5 Slot 6 Total Bank 2 power consumed =...
  • Page 19 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Model 3724 connection log Use this table to record your 3724 connection information. Channel Color Description OUTPUT1 CH10 CH11 CH12 CH13 CH14 CH15 CH16 CH17 CH18 CH19 CH20 CH21 077183700 October 2024...
  • Page 20 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Channel Color Description CH22 CH23 CH24 CH25 CH26 CH27 CH28 CH29 CH30 OUTPUT 2 CH31 CH32 CH33 CH34 CH35 CH36 CH37 CH38 CH39 CH40 CH41 CH42 CH43 077183700 October 2024...
  • Page 21 Model 3724 Dual 1×30 FET Multiplexer Card Instructions Channel Color Description CH44 CH45 CH46 CH47 CH48 CH49 CH50 CH51 CH52 CH53 CH54 CH55 CH56 CH57 CH58 CH59 CH60 077183700 October 2024...
  • Page 22: Safety Precautions

    Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
  • Page 23 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
