Introduction
The 7701 32-Channel High-Speed Differential Multiplexer Module offers 32 channels of 2-pole or 16 channels
of 4-pole multiplexer switching. Its 32 channels can be configured for commonside 4-wire ohms measurements.
The channels can also be configured as two independent banks of multiplexers. The 7701 is ideal for RTD or
thermistor temperature applications.
Item shipped may vary from model pictured here.
The 7701 includes the following features:
▪
Configurable for 32 channels of differential measurements, with up to 16 channels of 4-pole
measurements
▪
Two female D-shell connectors are standard for secure hook-up and quick teardown
▪
150 V, 1 A capacity for voltage channels; 60 W, 125 VA
▪
Relay closures stored in onboard memory
▪
Screw terminal jumpers allow user-configurable DMM connections
The 7701 can be used with the DAQ6510 Data Acquisition and Multimeter System.
If you are using this switching module with the 2700, 2701, or 2750, please see Model 7701 User's
Guide, Keithley Instruments document number PA-769.
077144700 / June 2018

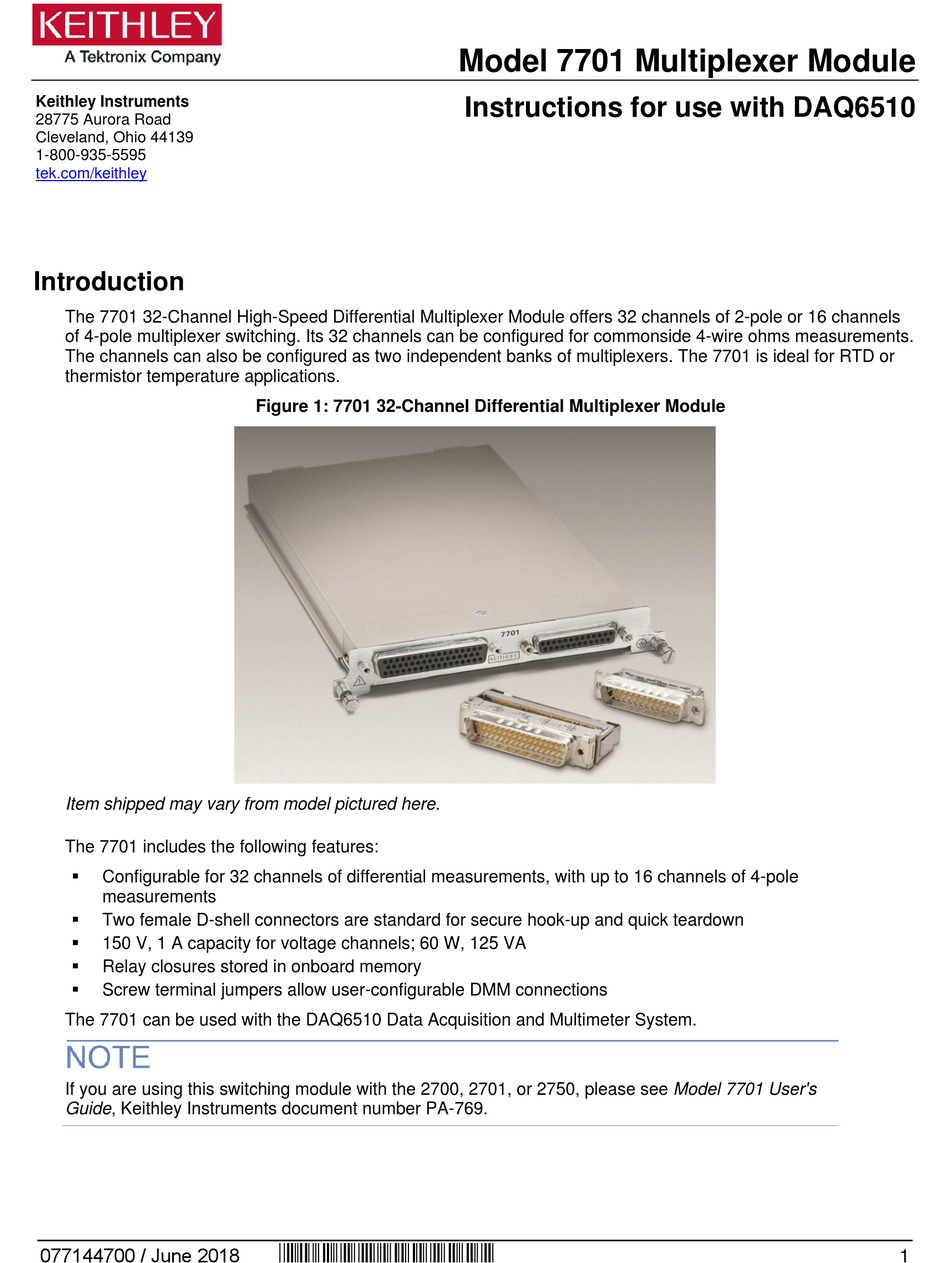

Figure 1: 7701 32-Channel Differential Multiplexer Module
*P077144700*
Model 7701 Multiplexer Module
Instructions for use with DAQ6510
