HO220PTA
(HSG1483)
LCD Monitor
OSD[V6.0]

Advertisement

loading
Need help?

Need help?

Do you have a question about the HO220PTA and is the answer not in the manual?

Questions and answers

Summary of Contents for HANNspree HO220PTA

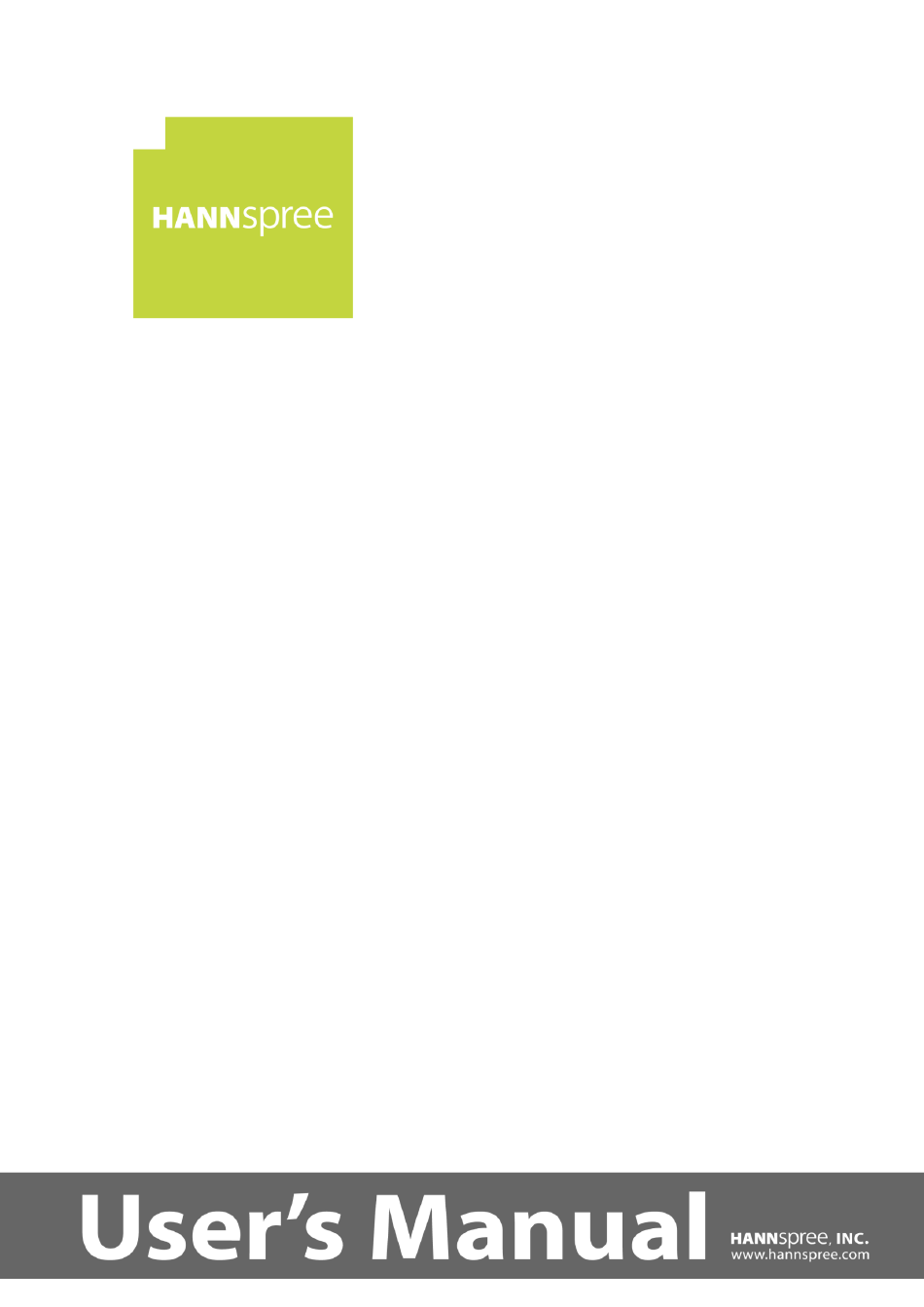

  • Page 1 HO220PTA (HSG1483) LCD Monitor OSD[V6.0]...
  • Page 2: Recycling Information

    HDMI Licensing LLC in the United States and other countries. RECYCLING INFORMATION We, the HANNspree care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life.
  • Page 3: Table Of Contents

    User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................4 PRECAUTIONS ....................4 SPECIAL NOTES ON LCD MONITORS ............5 BEFORE YOU OPERATE THE MONITOR ............6 FEATURES ......................6 CHECKING THE CONTENTS OF THE PACKAGE ........6 POWER ....................... 7 SETTING THE MONITOR ON THE WALL ..........
  • Page 4: Safety Notice

    User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
  • Page 5: Special Notes On Lcd Monitors

    User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem.  Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
  • Page 6: Before You Operate The Monitor

    User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 54,6cm / 21.5” Wide Screen TFT Color LCD Monitor   Crisp, Clear Display for Windows  GP Green Product  Ergonomic Design  Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: LCD Monitor Cables and User manual...
  • Page 7: Power

    *Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. HANNspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a qualified service...
  • Page 8: Making Connections

    User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer’s VGA port. 2.
  • Page 9: Operating Instructions

    User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.
  • Page 10: Front Panel Control

    User’s Manual FRONT PANEL CONTROL  MENU: Turn the OSD menu on/off or enter to the previous menu.  Adjust UP / DOWN: 1.Adjust Brightness and volume when the OSD is off. 2.Navigate through adjustment icons when OSD is ON or adjust a function when function is activated. ...
  • Page 11: Plug And Play

    User’s Manual HOW TO ADJUST A SETTINGS PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
  • Page 12: Technical Support (Faq)

    User’s Manual TECHNICAL SUPPORT (FAQ) BRIGHTNESS  BRIGHTNESS Adjust between 0-100.  CONTRAST Adjust between 0-100.  STANDARD, MOVIE, GAME, TEXT.  ACTIVE CONTRAST ON/OFF.
  • Page 13: Image

    User’s Manual IMAGE  ASPECT WIDE, 4:3.
  • Page 14: Blue Light

    User’s Manual BLUE LIGHT 0/25/50/75/100 COLOR TEMP COLOR TEMP USER, WARM, NORMAL, COOL Under user, the following colors can be adjusted.  0-100  0-100  0-100...
  • Page 15: Osd Setting

    User’s Manual OSD SETTING LANGUAGE ENGLISH, FRENCH, German, Italian, Spanish, Russian OSD .H. POS 0~100 OSD. V. POS 0~100 OSD TIME 0~60 TRANSDARENCY 0~100...
  • Page 16 User’s Manual REST REST...
  • Page 17: Misc

    User’s Manual MISC SIGNAL SOURCE HDMI, VGA, DP VOLUME 0-100 AUDIO INPUT DIGITAL / ANALOG...
  • Page 18: Q & A For General Problems

    User’s Manual Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. *Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &...
  • Page 19 60cm / 23.6” (16:9) 1920×1080@60Hz 1920×1080@50Hz 62,5cm / 24.6 (16:9) 68,6cm / 27 ” (16:9) And if you still have display problem after doing the above procedure, please visit HANNspree support and Service Website: http://www.hannspree.eu/en/monitors Windows is a registered trademark of Microsoft Corporation.
  • Page 20: Error Message & Possible Solutions

    User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS  CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage.  INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.
  • Page 21 User’s Manual 1440×900 @75Hz 70.635 74.984 1400×1050 @60Hz 64.744 59.948 1600×900 @60Hz 60.000 59.978 1680×1050 @60Hz 65.290 59.954 1920×1080 @60Hz 67.500 60.000 (Video mode) MODE RESOLUTION 640×480p @60Hz 720×480i @60Hz 720×480p @60Hz 720×576i @50Hz 720×576p @50Hz 1280×720p @60Hz 1920×1080i @50Hz 1920×1080i @60Hz 1920×1080p @50Hz 1920×1080p @60Hz...
  • Page 22: Appendix

    5.65 kg (12.44 lb) *** The above specification is subject to actual product specification and is subject to change without prior notice. NOTES: The Maximum Resolution will depends on the display card supporting. Related issue can refer to http://www.hannspree.eu/en/monitors. FAQ section.
