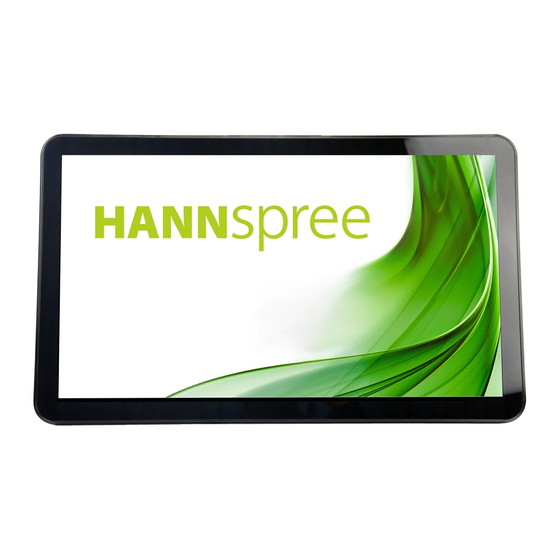

HANNspree HO325PTB User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

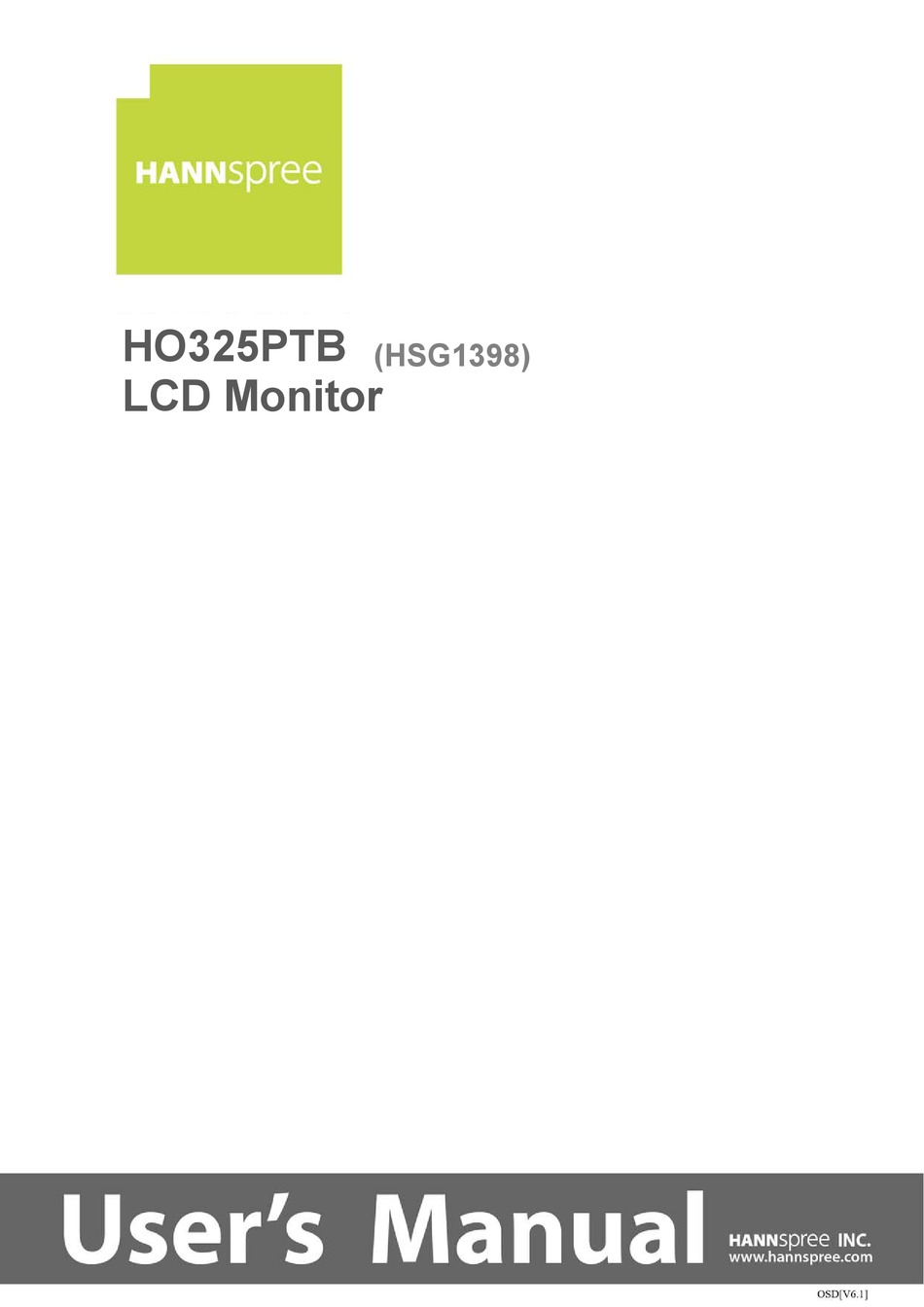

User's Manual
Before operating the monitor, please read this manual thoroughly. This manual should be retained for
future reference.
FCC Class B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
HO325PTB
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
LCD Monitor
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Parts 15 of the FCC Rule. Operation is subject to the following two
conditions﹕(1) this device may not cause harmful interference﹔and (2) this device must accept any
interference received, including interference that may cause undesired operations.
CANADA
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulation.
【Optional, depend on selected model】
This device complies with requirement of EMC directive 2014/30/EU with regard to
Electromagnetic Compatibility, and 2014/35/EU and 93/68/EEC with regard to Low Voltage
directive.
【Optional, depend on selected model】
Socket-outlet shall be near the equipment and shall be accessible.
Bemerkung zu den Warenzeichen:
HDMI, das HDMI-Logo und High-Definition Multimedia Interface sind Marken oder eingetragene
Markenvon HDMI Licensing LLC in den Vereinigten Staaten und anderen Ländern.
(HSG1398)
HANNspree -Produkte beinhalten High-Definition Multimedia
Interface-(HDMI™) Technologie.
2
OSD[V6.1]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HO325PTB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HANNspree HO325PTB

Summary of Contents for HANNspree HO325PTB

  • Page 1 【Optional, depend on selected model】 Socket-outlet shall be near the equipment and shall be accessible. Bemerkung zu den Warenzeichen: HANNspree -Produkte beinhalten High-Definition Multimedia Interface-(HDMI™) Technologie. HDMI, das HDMI-Logo und High-Definition Multimedia Interface sind Marken oder eingetragene Markenvon HDMI Licensing LLC in den Vereinigten Staaten und anderen Ländern.
  • Page 2 【Optional, depend on selected model】 Socket-outlet shall be near the equipment and shall be accessible. Trademark Notice: HANNspree products incorporate High-Definition Multimedia Interface (HDMI ) technology. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 3 User’s Manual RECYCLING INFORMATION We, the HANNspree care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels.

  • Page 4: Table Of Contents

    User’s Manual TABLE OF CONTENTS SAFETY NOTICE ....................5 PRECAUTIONS....................5 SPECIAL NOTES ON LCD MONITORS ............6 BEFORE YOU OPERATE THE MONITOR ............7 FEATURES......................7 CHECKING THE CONTENTS OF THE PACKAGE ........7 POWER....................... 8 SETTING THE MONITOR ON THE WALL ..........8 MAKING CONNECTIONS................

  • Page 5: Safety Notice

    User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

  • Page 6: Special Notes On Lcd Monitors

    User’s Manual SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem.  Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.

  • Page 7: Before You Operate The Monitor

    User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES 80cm /31.5” LCD Monitor  Crisp, Clear Display for Windows  Ergonomic Design  Space Saving, Compact Case Design  CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: LCD Monitor Cables and User manual Power Cable...

  • Page 8: Power

    *Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. HANNspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a...

  • Page 9: Making Connections

    User’s Manual MAKING CONNECTIONS CONNECTING TO A PC Turn off your computer before performing the procedure below. 1. Connect one end of the DP cable to the back of the monitor and connect the other end to the computer’s DP port. 2.

  • Page 10: Operating Instructions

    User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located on the rear panel of the monitor (See Figure 2). By changing these settings, the picture can be adjusted to your personal preferences.

  • Page 11: Front Panel Control

    User’s Manual FRONT PANEL CONTROL  Power Button: Press this button to switch ON/OFF of monitor’s power.  Power Indicator: Green — Power On mode. Amber — Power Saving mode.  MENU / Enter: 1. Turn the OSD menu on. 2.

  • Page 12: How To Adjust A Settings

    User’s Manual HOW TO ADJUST A SETTINGS PICTURE SETTING Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the BRIGHTNESS brightness value. Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast CONTRAST value.
  • Page 13 User’s Manual Select the「MUTE」option to switch the function On or Off. MUTE [Adjusting the volume while muted cancels Mute mode.] OTHER SETTING Reset to the factory settings RESET The MENU Time function, allows users to choose how long the OSD menu will reside on the screen after in-activity (number of MENU TIME seconds).

  • Page 14: Plug And Play

    User’s Manual PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

  • Page 15: Technical Support (Faq)

    User’s Manual TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL PROBLEMS PROBLEM & QUESTION POSSIBLE SOLUTION *Check if the Power Switch is in the ON position. Power LED is not on *Power Cord should be connected. * Check if the PC system is Plug & Play compatible. *Check if the Video Card is Plug &...
  • Page 16 62,5cm / 24.6 (16:9) 68,6cm / 27 ” (16:9) 70cm / 27.5” (16:10) 1920×1200@60Hz 1920×1200@50Hz And if you still have display problem after doing the above procedure, please visit Hannspree support and Service Website: http://www.hannspree.eu/en/monitors Windows is a registered trademark of Microsoft Corporation.

  • Page 17: Error Message & Possible Solutions

    User’s Manual ERROR MESSAGE & POSSIBLE SOLUTIONS  CABLE NOT CONNECTED: 1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage.  INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.
  • Page 18 User’s Manual 1680×1050 @60Hz 65.290 59.954 1920×1080 @60Hz 67.500 60.000 (Video mode) MODE RESOLUTION 640×480p @60Hz 720×480i @60Hz 720×480p @60Hz 720×576i @50Hz 720×576p @50Hz 1280×720p @60Hz 1920×1080i @50Hz 1920×1080i @60Hz 1920×1080p @50Hz 1920×1080p @60Hz ** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality.

  • Page 19: Appendix

    Weight (NW) 14.5 kg *** The above specification is subject to actual product specification and is subject to change without prior notice. NOTES: The Maximum Resolution will depends on the display card supporting. Related issue can refer to http://www.hannspree.eu/en/monitors. FAQ section.
