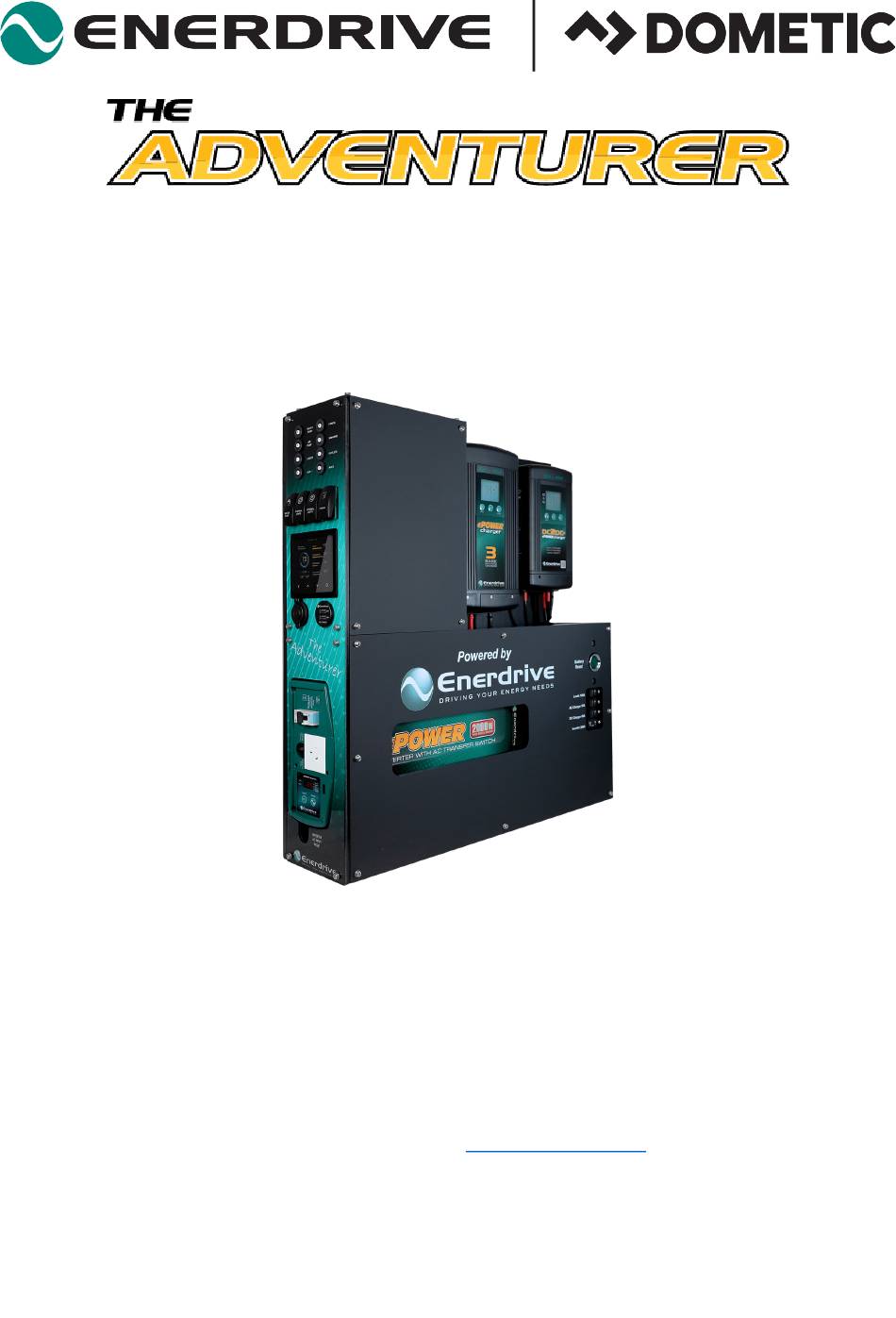

Congratulations on the purchase of The Adventurer power system from Enerdrive. This all-in-one system was
designed for those who want the best charging, power supply and monitoring package in one neat easy to install
package. Your system includes the following individual products:
•
Enerdrive DC2DC+ DC Battery Charger
Enerdrive ePOWER 12V 40A AC Battery Charger
•
Enerdrive ePOWER 2000W Inverter with AC Transfer Switch and Safety Switch
•
•
Simarine Pico Monitor with SC301 Shunt and additional SCQ50 shunt (-03 version only)
The following guide is for the installation of the pre-assembled power system, for specifics on each product please
refer to the individual product manuals supplied or online at
Installation Guide
K-ADVENTURER-02 and K-ADVENTURER-03
www.enerdrive.com.au
.
Advertisement
Related Manuals for Enerdrive DOMETIC THE ADVENTURER K-ADVENTURER-01
Summary of Contents for Enerdrive DOMETIC THE ADVENTURER K-ADVENTURER-01
- Page 1 Installation Guide K-ADVENTURER-02 and K-ADVENTURER-03 Congratulations on the purchase of The Adventurer power system from Enerdrive. This all-in-one system was designed for those who want the best charging, power supply and monitoring package in one neat easy to install package. Your system includes the following individual products: •...
- Page 2 • Mounting • Choose the location of The Adventurer with focus on keeping the battery as close as possible (less than 1.5m is ideal) to the system. If the distance from the battery to The Adventurer is greater than 1.5m larger diameter cable than the recommended 70mm2 will be required.
- Page 3 • Connect the negative wire from your lights, pumps, and other accessories to the system by connecting directly to the negative bus bar using 4mm ring terminals. If you have a larger load circuit (over 30 amps) we recommend to connect the negative directly to the Main negative Bar Connect negative wire from accessories to this busbar.
- Page 4 Connection to Main (Start) Battery • Connect the Battery Input terminals of your DC2DC+ to your vehicles main/start battery. A 70A midi fuse located as close as possible to the main/start battery is required. Refer below cable sizing chart. Vehicle Positive Vehicle Negative Note: Refer to DC2DC manual for information on wiring for vehicles with smart alternators.
- Page 5 Finally connect the positive cable to the battery followed by the negative cable to the battery using correctly • sized ring terminals, in the case of an Enerdrive Lithium battery use 8mm ring terminals. Note: No other connections are to be direct to the battery as this will result in incorrect reading on the Simarine system.
- Page 9 Specifications: DC Charger Output Current Maximum: 40~50A Solar Input Voltage: 14.5-45VOC Solar Wattage Maximum: ≤23V Input, 500W (600W allowable), ≥37.5V-45V Input, 750W (800W allowable) AC Charger Output Current Maximum: 40A Inverter AC Output: 230V 50Hz AC Output Power: 2000W AC Output Current: 8.7A General Dimensions: 630L x 155W x 665H Weight: 18Kg...
