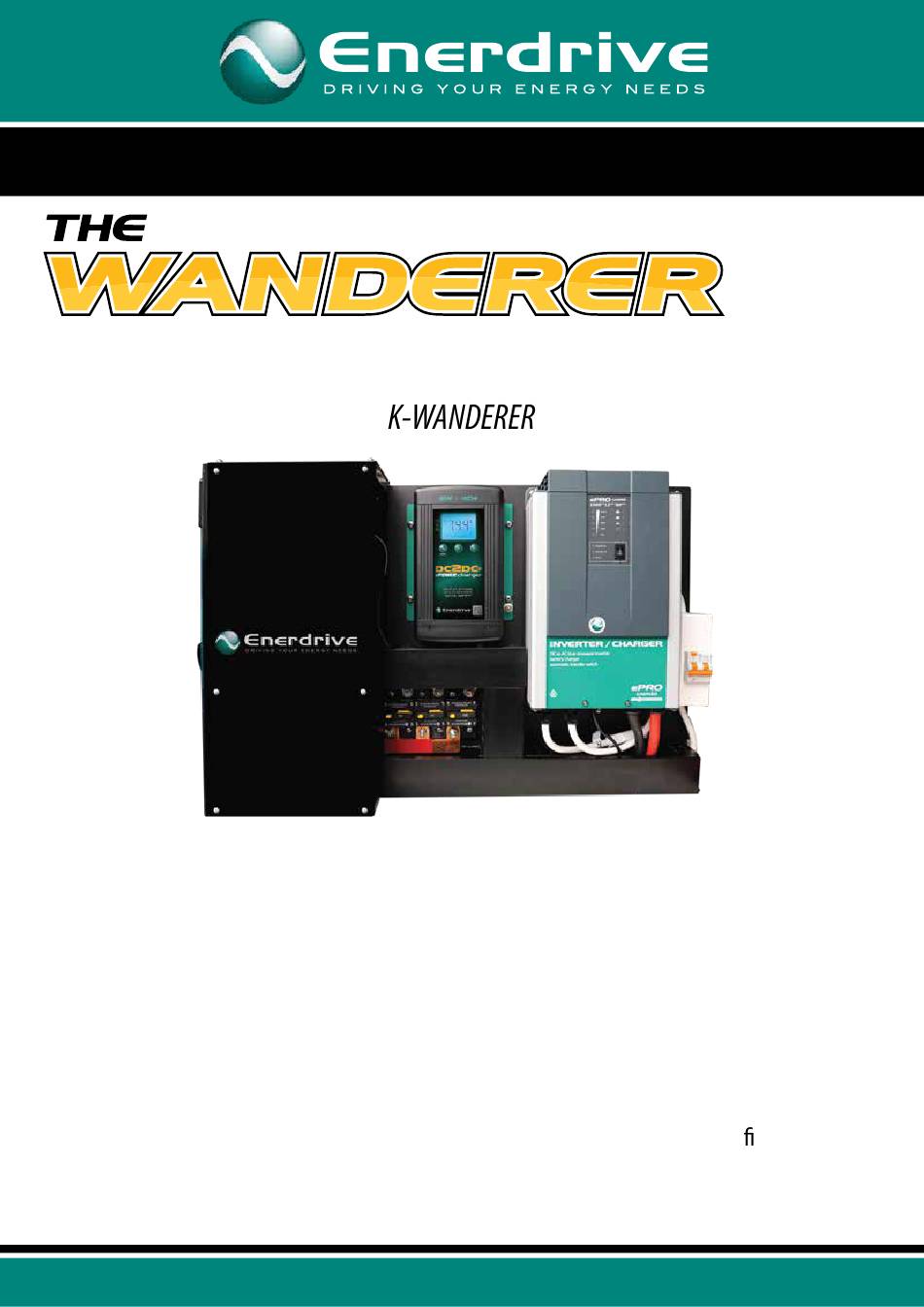

POWER SYSTEM SERIES
Installation Guide
Congratulations on the purchase of The Wanderer power system from Enerdrive. This all-in-one system
was designed for those who want the best charging, power supply and monitoring package in one
compact easy to install package. Your system includes the following individual products:
•
Enerdrive DC2DC40+ DC Battery Charger
•
Enerdrive ePRO 1600W/60A Combi Inverter Charger
•
Simarine Pico Monitor with SC301 Shunt and additional SCQ50 shunt
The following guide is for the installation of the pre-assembled power system, for speci cs on each
product please refer to the individual product manuals supplied or online at www.enerdrive.com.au.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enerdrive Wanderer
Summary of Contents for Enerdrive Wanderer
- Page 1 POWER SYSTEM SERIES Installation Guide Congratulations on the purchase of The Wanderer power system from Enerdrive. This all-in-one system was designed for those who want the best charging, power supply and monitoring package in one compact easy to install package. Your system includes the following individual products: •...
- Page 2 Choose the location of The Wanderer with focus on keeping the battery as close as possible (less than 1.5m is ideal) to the system. If the distance from the battery to The Wanderer is greater than 1.5m, larger diameter cable than the supplied 50mm2 will be required.
- Page 3 INSTALLATION GUIDE • Connect the negative wire from your lights, pumps, and other accessories to the system by connecting directly to the negative bus bar using 4mm ring terminals. If you have a larger load circuit (over 30 amps) we recommend to connect the negative directly to the Main negative Bar.
- Page 4 INSTALLATION GUIDE Connecting to Main (Start) Battery • Connect the Battery Input terminals of your DC2DC+ to your vehicles main/start battery. A 70A midi fuse located as close as possible to the main/start battery is required. Refer below cable sizing chart. DC2DC Connection Require Length &...
- Page 5 • Finally connect the positive cable to the battery followed by the negative cable to the battery using correctly sized ring terminals, in the case of an Enerdrive Lithium battery use 8mm ring terminals. Note: No other connections are to be direct to the battery as this will result in incorrect reading on the Simarine system.
- Page 6 INSTALLATION GUIDE...
- Page 7 INSTALLATION GUIDE...
- Page 8 Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions, as described in the complete Enerdrive Warranty Policy) for up to 5 years from the date of purchase.
