Fienza Lillian 444114 Installation Manual

L illian
R A I L S H O W E R
444114
Rail:
Made from stainless steel
●
ABS slider and wall mounts
●
Deluxe stainless steel elbow
●
Rail thickness: 20mm
●
1.5 metre stainless steel flexible hose
●
(PVC on matte black model)
Hand Piece:
Single water flow setting
●
Made from solid brass
●
IMPORTANT: Please read all of the instructions before installation. Check the product thoroughly for damage. Installation is acceptance
of goods supplied and will void warranty. This product is pre-assembled. Do not disassemble, as this may void the warranty.
Specifications
Please refer to fienza.com.au for the latest product specifications before installing.
Operating Pressure Min: 150 kPa / 1.5 bar
Max: 500 kPa / 5 bar
Optimum: 150 kPa / 1.5 bar - 500 kPa / 5 bar
Installation of pressure limiting valve recommended
if supply exceeds 500kPa
Operating Temperature Hot: Max 80°C
Cold: Min. 5°C
Inlet Connections 1/2" BSPP
Suitable Hot Water Units Storage tank and continuous flow only.
Not suitable for gravity feed.
WELS Rating 3 Star rated, 8.5L/min
General Information
This product must be installed by a qualified licensed plumber in accordance with AS/NZS 3500 and all applicable local regulations
●
and plumbing codes.
All pipe work must be thoroughly flushed prior to installation.
●
Do not remove the ceramic cartridge from the mixer when installing.
●
After installation all hoses and connections must be checked for leaks.
●
It is the responsibility of the installer to ensure a waterproof seal is achieved between the product and mounting surface.
●
F IEN ZA .COM. AU

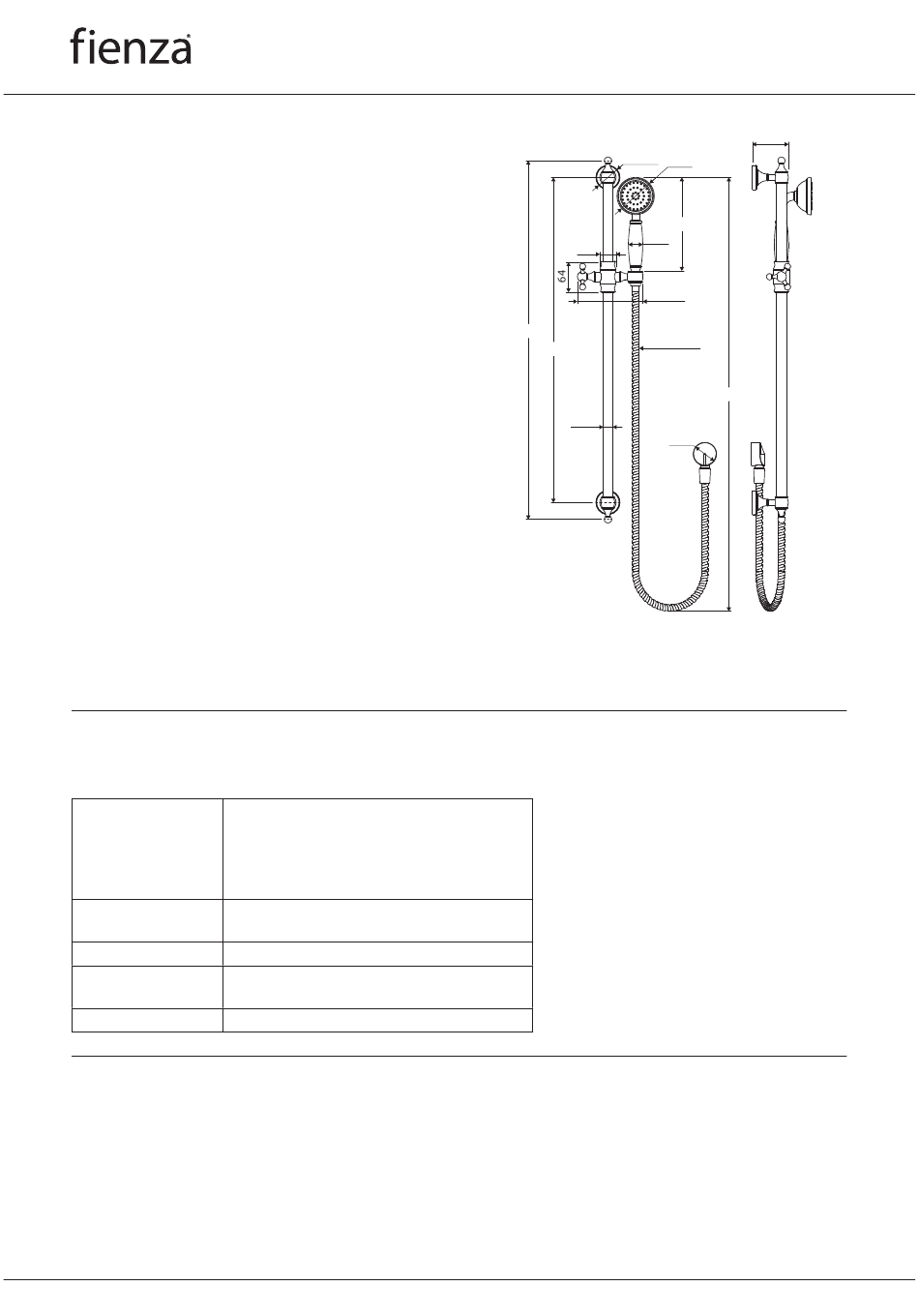

I N S TA L L AT I O N G U I D E
2-Ø50
Ø77
192.7
29.5
33.5
135.23
739
1.5 metre
670
long hose
Ø20
Ø48
Item Code: 444114 | Updated: 22/08/2023
74.45
894.14
