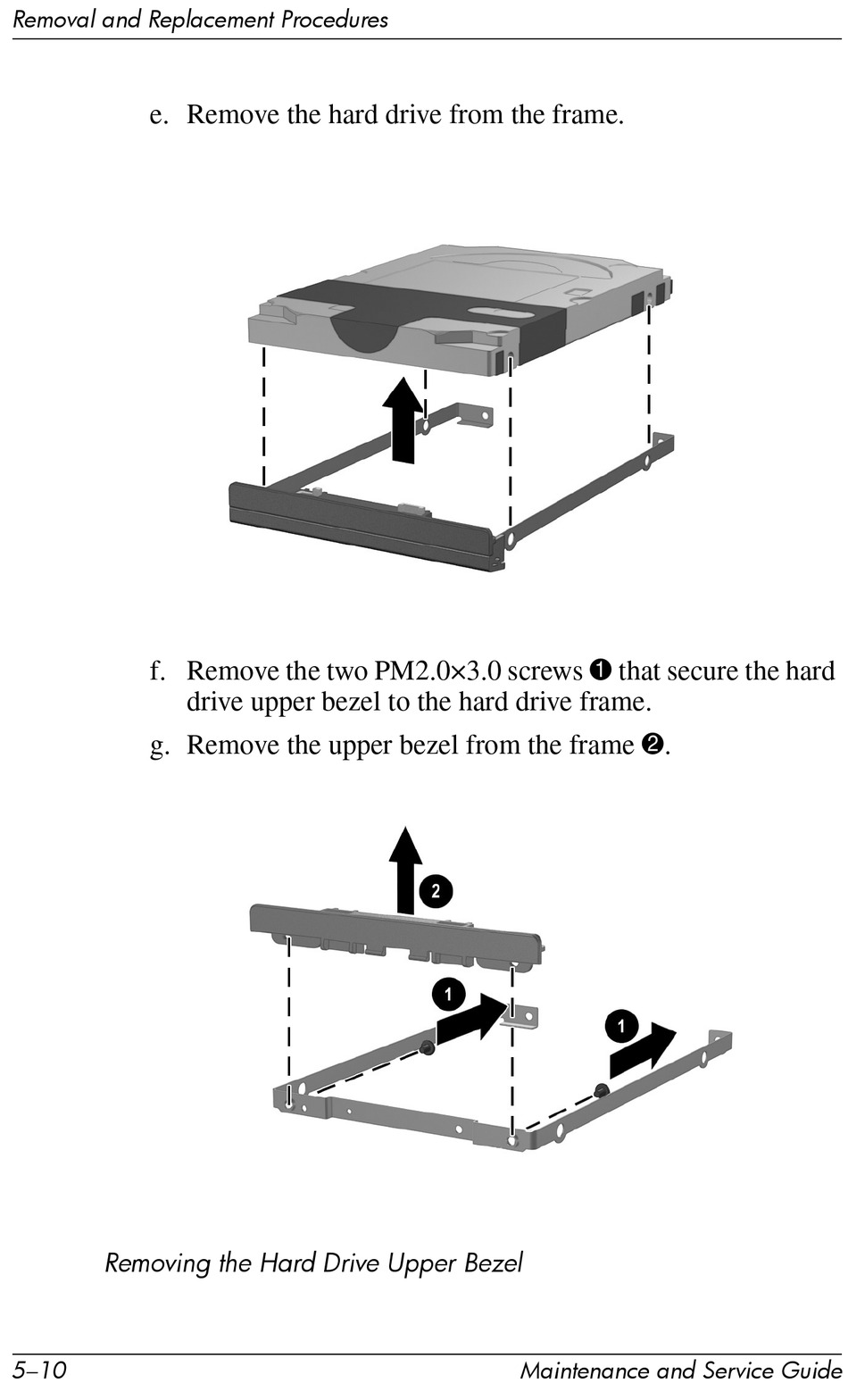

Removal and Replacement Procedures
e. Remove the hard drive from the frame.
f. Remove the two PM2.0×3.0 screws 1 that secure the hard
g. Remove the upper bezel from the frame 2.
Removing the Hard Drive Upper Bezel
5–10
drive upper bezel to the hard drive frame.
Maintenance and Service Guide
