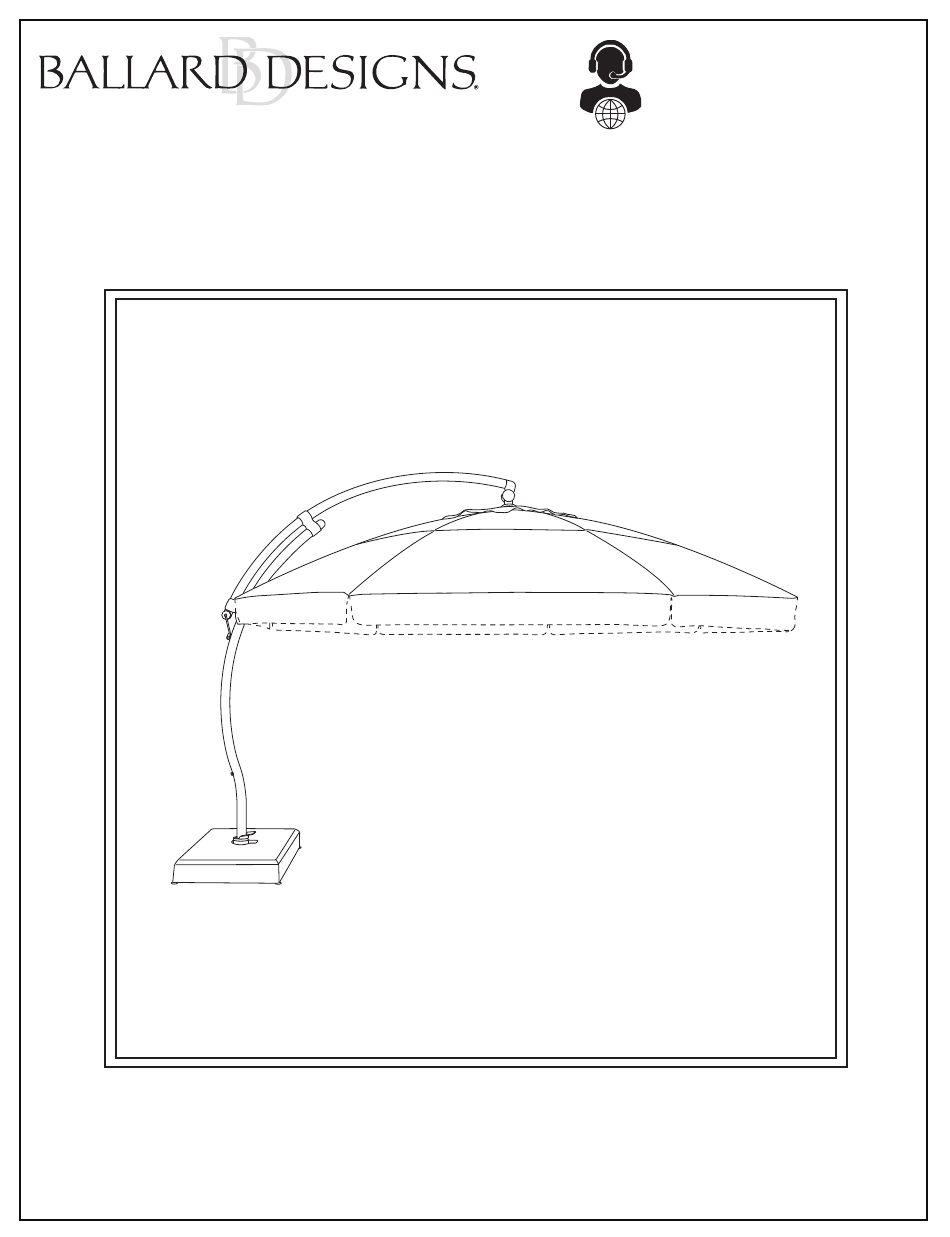

PRODUCT NAME: 13' Starlux 13' Octagonal Cantilever Umbrella
ITEM NUMBER: JU041
ASSEMBLED DIMENSIONS: 120 3/4"H (open) / 122 3/4"H (closed) x 13' Octagonal
*Canopy featured in Assembly Instructions representative only. Canopy style may vary.
UPDATED: 5-24-2023
Customer Service: 800-367-2810
Online: www.ballarddesigns.com
Page 1 of 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ballard Designs Starlux JU041
Summary of Contents for Ballard Designs Starlux JU041
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: 13’ Starlux 13’ Octagonal Cantilever Umbrella ITEM NUMBER: JU041 ASSEMBLED DIMENSIONS: 120 3/4”H (open) / 122 3/4”H (closed) x 13’ Octagonal *Canopy featured in Assembly Instructions representative only. Canopy style may vary. Page 1 of 13 UPDATED: 5-24-2023...
- Page 2 Assemble in location for intended use. Please remove all contents from the package, inspect and review checklist. Some parts may be included in the styrofoam packaging. Do not discard any packaging or box until assembly is complete. CHECKLIST A - (1) 360° Rotating Hub H - (1) Canopy Support Beam B - (1) Foot Pedal I - (1) Canopy...
- Page 3 NOTE: REFER TO SEPARATE BASE ASSEMBLY (PAGE 12) FOR BASE ASSEMBLY PRIOR TO PROCEEDING. IMPORTANT: For free standing base applications, it is imperative to install the appropriate base for your size cantilever. The minimum base weight required for each size is: ·...
- Page 4 STEP OPENING UMBRELLA Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle midway up main frame (Fig. 5). NOTE: It may be necessary to give the canopy structure a gentle push outward while squeezing the main frame grip handle. Release grip handle to lock into place.
- Page 5 Turn umbrella lights on by pressing button located under plug (Fig. 12). Lights will initially turn on high setting (Fig. 13). For low setting, press button once more. To turn off lights, press button a third time. WARNING: We do not recommend use of lights while raining. See Safety Precautions on page 9.
- Page 6 To Tilt Canopy Horizontally: IMPORTANT: PRIOR TO USING TILT FEATURE. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure. Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from main frame track (Fig.
- Page 7 STEP ROTATING UMBRELLA Place your foot on the foot pedal of the rotating hub and step-on the foot pedal to release rotating lock (Fig. 21). Place one hand on the main frame and one hand on the tilt lever (Fig. 22), swivel the umbrella frame in either direction until desired position is reached (Fig.
- Page 8 STEP LIGHT ADAPTER FEATURE To Open Light Adapter: • Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 24). • After loosening, pull down light adapter post (Fig. 25). To Open and Attach Umbrella Light: (light sold separately) •...
- Page 9 STEP CLOSING UMBRELLA Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle midway down main frame (Fig. 28). Release grip handle to lock into place. Slowly turn the crank lift handle counter-clockwise until the canopy is fully closed (Fig. 29). Squeeze main frame grip handle to release lock and continue to slide grip handle downward SLOWLY until umbrella is fully closed in an upright position (Fig.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE • When not in use, close and cover umbrella with provided protective cover. • Store rechargeable battery pack and power supply in dry place. • Allow a wet canopy to dry while in open position, but do not leave unattended. •... -
Page 11: Safety Precautions
SAFETY PRECAUTIONS • To reduce risk of personal injury in which a person is injured or harmed, and/or damage to personal property, read and follow the Assembly Guide prior to assembling and operating umbrella and base. • Close and store the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind;... - Page 12 CANTILEVER BASE CHECKLIST A - (1) Base Lid B - (1) Steel Base Frame C - (4) Add-on Weight Containers D - (4) Feet E - (4) Screws F - (1) Wrench G - 400 lbs. All-Purpose Sand (not included) 400 lbs.
- Page 13 STEP ASSEMBLE BASE • Select area to set base frame and place in desired location. • Screw (4) feet onto bottom of base frame with supplied (4) screws (Fig. 1). • Remove rotating hub (sold separately) from the main frame of umbrella by removing the (2) bolts and (2) washers (Fig.
