Customer Service: 800-367-2810
Online: www.ballarddesigns.com

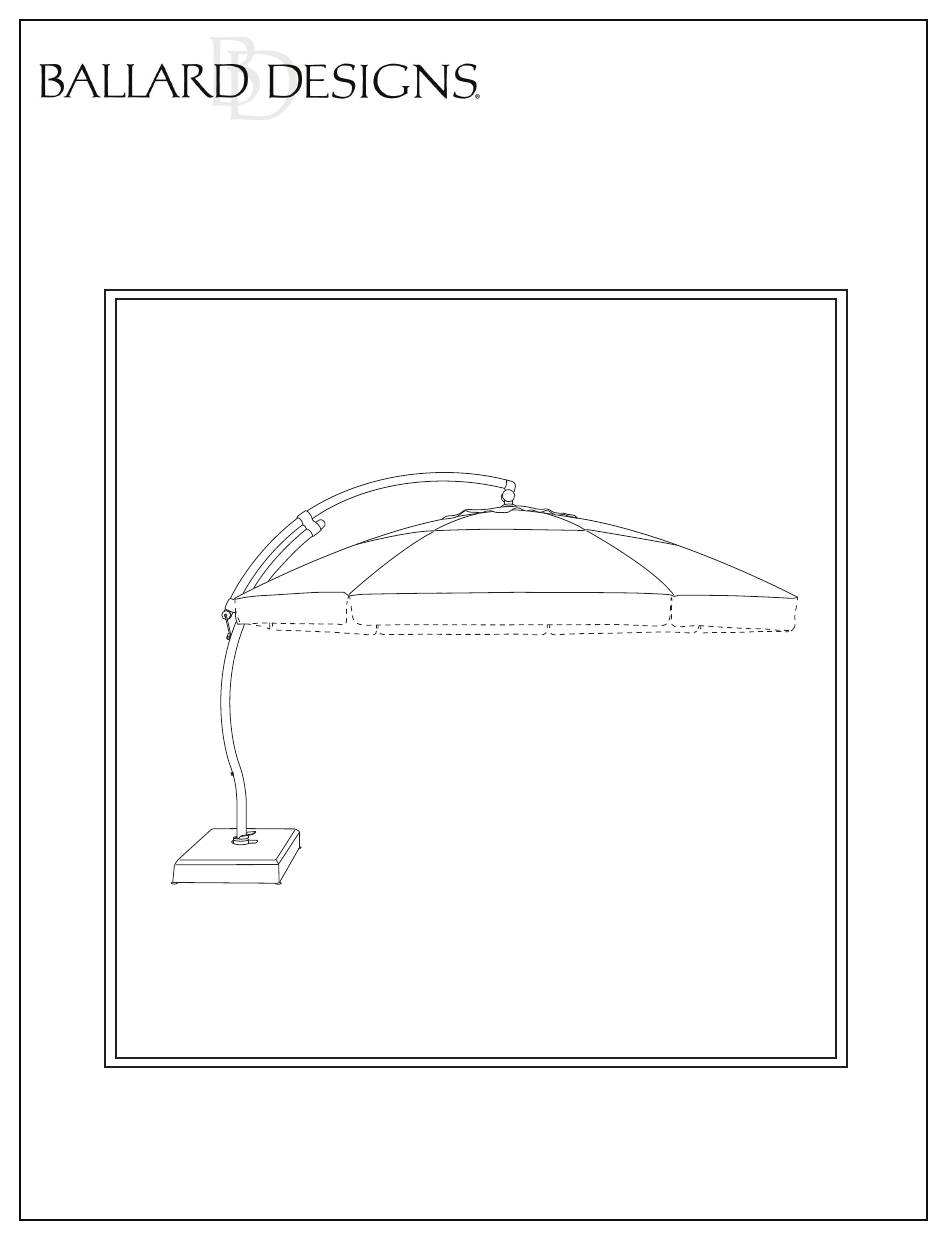

PRODUCT NAME: 13' Octagon Cantilever *Umbrella
ITEM NUMBER: JU020
ASSEMBLED DIMENSIONS: 113 2/3"H (open) / 112 1/2"H (closed) x 13' Octagonal
*Canopy featured in Assembly Instructions representative only. Canopy style may vary.
Page 1 of 10
Advertisement
Related Manuals for Ballard Designs JU020
Summary of Contents for Ballard Designs JU020
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: 13’ Octagon Cantilever *Umbrella ITEM NUMBER: JU020 ASSEMBLED DIMENSIONS: 113 2/3”H (open) / 112 1/2”H (closed) x 13’ Octagonal *Canopy featured in Assembly Instructions representative only. Canopy style may vary. Page 1 of 10...
- Page 2 Assemble in location for intended use. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your AG7813, read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly.
- Page 3 AG7813 CHECKLIST A - Base Lid, Frame and Add-on Weights I - Arm Connector B - 360° Rotating Hub J - Mainframe Arm C - Base Pedal K - Gemel Hinge D - Stopper A L - Canopy E - Bottom Pole Mainframe M - Spring Loaded Rib End Cap F - Housing N - Optional Valance...
- Page 4 S T E P 1 Base Assembly Select area to set base frame and place in desired location. NOTE: Moving the umbrella will be difficult once fully assembled. Remove rotating hub from the main frame by removing the bolt and washer (Fig. 1), set aside bolt and washer for later use in step 2. Screw (4) feet onto bottom of base frame with supplied (4) screws (Fig.
- Page 5 S T E P 2 Umbrella Assembly Two-persons recommended for team lift and to complete assembly. With base lid in place, insert the main frame back onto the rotating hub (Fig. 8) {align tilt lever with foot pedal}. Assembled in upright position, re-insert the removed bolt and washer and tighten using large hexagon wrench provided (Fig.
- Page 6 S T E P 3 Opening, Tilting and Closing To Extend Mainframe Arm and Open Canopy: Turn knob on housing, counter-clockwise (Fig. 11). Push bottom of arm (Fig. 12) until arm is fully extended and reaches Stopper B (Fig. 13). Turn knob clockwise to tighten and secure in place (Fig.
- Page 7 To Tilt Canopy: When in horizontal open position, turn knob counter-clockwise and pull down (Fig. 17) to retract arm to Stopper A (Fig. 18). Tighten knob to secure in place. To Close Canopy: Set canopy to horizontal position (Fig. 19) and turn crank handle counter-clockwise until canopy is in closed position (Fig.
- Page 8 AG7813 Features To OPERATE the 360° Rotating Hub Swivel: Place your foot on the foot pedal of the rotating hub and step-on the base pedal to release rotating lock (Fig. 22). Place one hand on the main frame, swivel the umbrella frame in either direction until desired position is reached (Fig.
- Page 9 AG7813 Features To Attach an Umbrella Light: Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 24). After loosening, pull down light adapter post (Fig. 25) to attach the umbrella light (sold separately). To Remove Umbrella Light and Close Adapter: Remove VEGA umbrella light, and gently push up the light adapter post back into umbrella runner and tighten turning clockwise (Fig.
- Page 10 S A F E T Y P R E C A U T I O N S : • Close the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind; this could damage the canopy. •...
