Sealey MC680E.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs
9
and all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with
all electrical products.
Electrical safety information. It is important that the following information is read and understood:
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the correct fuse.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately
8
by a qualified electrician.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualified electrician.
1.2. GENERAL SAFETY
WARNING! Disconnect lift from mains power supply before changing parts, servicing or performing any maintenance.
‰
Ensure lift is kept clean and in good working order. Immediately repair or replace damaged parts.
9
Use recommended parts only. Incorrect parts may be dangerous and will invalidate the warranty.
9
Use a qualified person to lubricate and maintain the lift. DO NOT use brake fluid to top up system. Use Sealey hydraulic oil only.
9
Locate lift in a suitable, well lit work area. Keep area clean and tidy and free from unrelated materials.
9
Use lift on level and solid ground, preferably concrete, capable of withstanding the weight of the lift and any load placed on it.
9
Avoid tarmacadam since lift may sink in.
9
Ensure all non-essential persons keep a safe distance.
9
Always keep your hands and feet away from moving parts. DO NOT reach under the lift.
9
DO NOT operate the lift if parts are missing or damaged.
8
DO NOT adjust the safety overload valve.
8
Keep the lift clean for best and safest performance.
9
The maximum load is 680kg. DO NOT exceed this rated capacity.
9
Use this lift for lifting purpose only. NOT to be used for lifting persons. DO NOT use it for any other purpose it is not designed to
9
perform.
Keep children and unauthorised persons away from the work area.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery, and contain long hair.
9
Keep proper balance and footing, DO NOT overreach and wear non-slip footwear.
9
Ensure the vehicle is adequately secured to the lifting platform with appropriate straps.
9
Before lowering lift ensure that there are no obstructions underneath and that all persons are standing clear.
9
DO NOT use the lift if damaged, any suspect parts are noted or it has been subjected to a shock load.
8
DO NOT operate the lift when you are tired or under the influence of alcohol, drugs or any intoxicating medication.
8
DO NOT allow untrained persons to operate the lift.
8
DO NOT make any modifications to the lift.
8
DO NOT get the lift wet.
8
When not in use remove from mains supply, and store in the down position in a safe, dry, childproof area.
9
WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
‰
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.

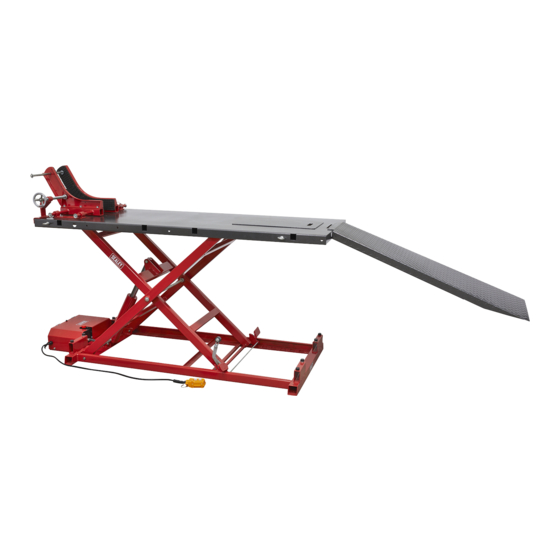

2. INTRODUCTION
All steel construction with a 680kg capacity powered by 230V Electro/Hydraulic lifting system for simple, fast operation. Heavy-
duty ramp and platform with removable rear access panel to aid with wheel removal. Supplied with motorcycle front wheel locking
attachment for tyre widths between 75-340mm to assist in securing the vehicle. Fitted with multi-position safety lock to prevent
accidental lowering. Suitable for use with centre-stand motorcycles or with a rear paddock stand. Can be easily converted to a mini
tractor or quadbike lift with the additional side ramps (Model No. MC680EXK).
© Jack Sealey Limited
680KG HEAVY-DUTY MOTORCYCLE LIFT -
ELECTRO/HYDRAULIC
MODEL NO:
Wear safety Warning:
footwear Crushing of Hands
Original Language Version
MC680E.V2
No reaching in
MC680E.V2 Issue 2 (H,1,F) 28/03/24
