Sealey AK98941 Instructions

thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/
OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE kEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1 Safety Instructions
WARNING! Ensure Health & Safety, local authority and

general workshop practice regulations are adhered to
when using this tool.
DO NOT use the suction cup if any parts are damaged or

missing as this may cause failure and/or personal injury.
Before each use, check condition of suction cup. Examine

rubber pads for excessive glaze, cuts or roughness. If any
component is worn or damaged replace immediately.
DO NOT clean the suction cup with solvents or other

harsh chemicals.
Use genuine parts only. Unauthorised parts may be

dangerous and will invalidate the warranty.
Use in a suitable work area. Keep area free from

unrelated materials and ensure that there is adequate
lighting.
WARNING! Always wear approved eye, face and hand

protection when using the suction cup.
Remove ill fitting clothing. Remove ties, watches, rings,

other loose jewellery and contain and/or tie back long hair.
Maintain correct balance and footing. DO NOT over reach,

ensure the floor is not slippery, wear non-slip footwear.
Keep children and unauthorised persons away from the

working area.
Ensure workpiece is secure before attaching and using

the suction cup.
WARNING! Ensure that the surface to which the suction

cup is to be attached is non-pourous, clean, dry and free
from oil and grease.
DO NOT exceed the maximum pull capacity of the suction

cup.
DO NOT use the suction cup for any purpose other than

that for which it is designed.
DO NOT use the suction cup when you are tired or under

the influence of alcohol, drugs or intoxicating medication.
When not in use, store in a safe, dry, childproof location.

DO NOT use any sharp object to loosen the suction

cup as it may damage the rubber and prevent the tool
from creating suction.
DO NOT attempt to attach the suction cup to a person as

severe bruising and/or damage to internal organs can
occur.
DO NOT allow anything to interfere with the free

movement of the plunger whilst the suction cup is
attached to a surface.
Keep fingers clear of suction release tag during use.

DO NOT allow anything else to touch the release tab

whilst in the process of lifting e.g. other lifting gear or
adjacent fixtures and fittings.
2. INTRODUCTION & SPECIFICATION
Model No:
Size:
40kg (horizontal)
Maximum Lift Capacity:
© Jack Sealey limited 2012
Ak98941 Ak98942
Ø178mm Ø178mm
40kg (horizontal)
Original Language Version
InStRUctIonS foR:
VACUUM SUCTION CUPS - 40kg
Ak98941 & Ak98942
ModEl no's:

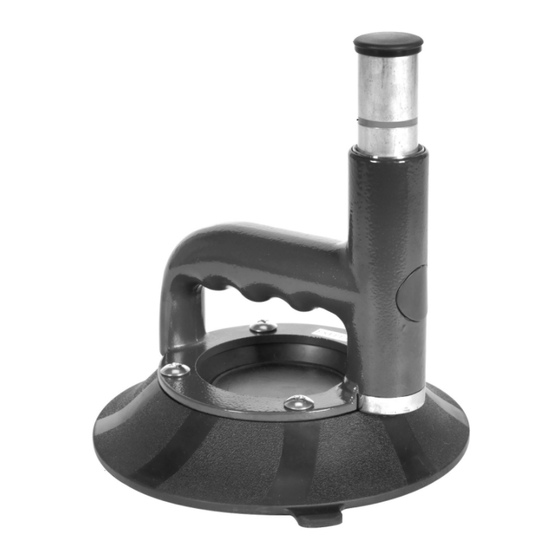

Ak98941 is a rubber suction device with a red line indicator
which warns of any vacuum loss. Easy attachment on smooth,
non-porous FLAT SURFACES such as glass, sheet metal and
tiles.
Ak98942 is a profiled rubber suction cup suitable for
attachment to CURVED SURFACES such as windscreens.
Red line indicator warns of any vacuum loss. can also be used
on smooth, non-porous flat surfaces such as glass, sheet metal
and tiles.
AK98941, AK98942 Issue: 1 - 23/07/12
