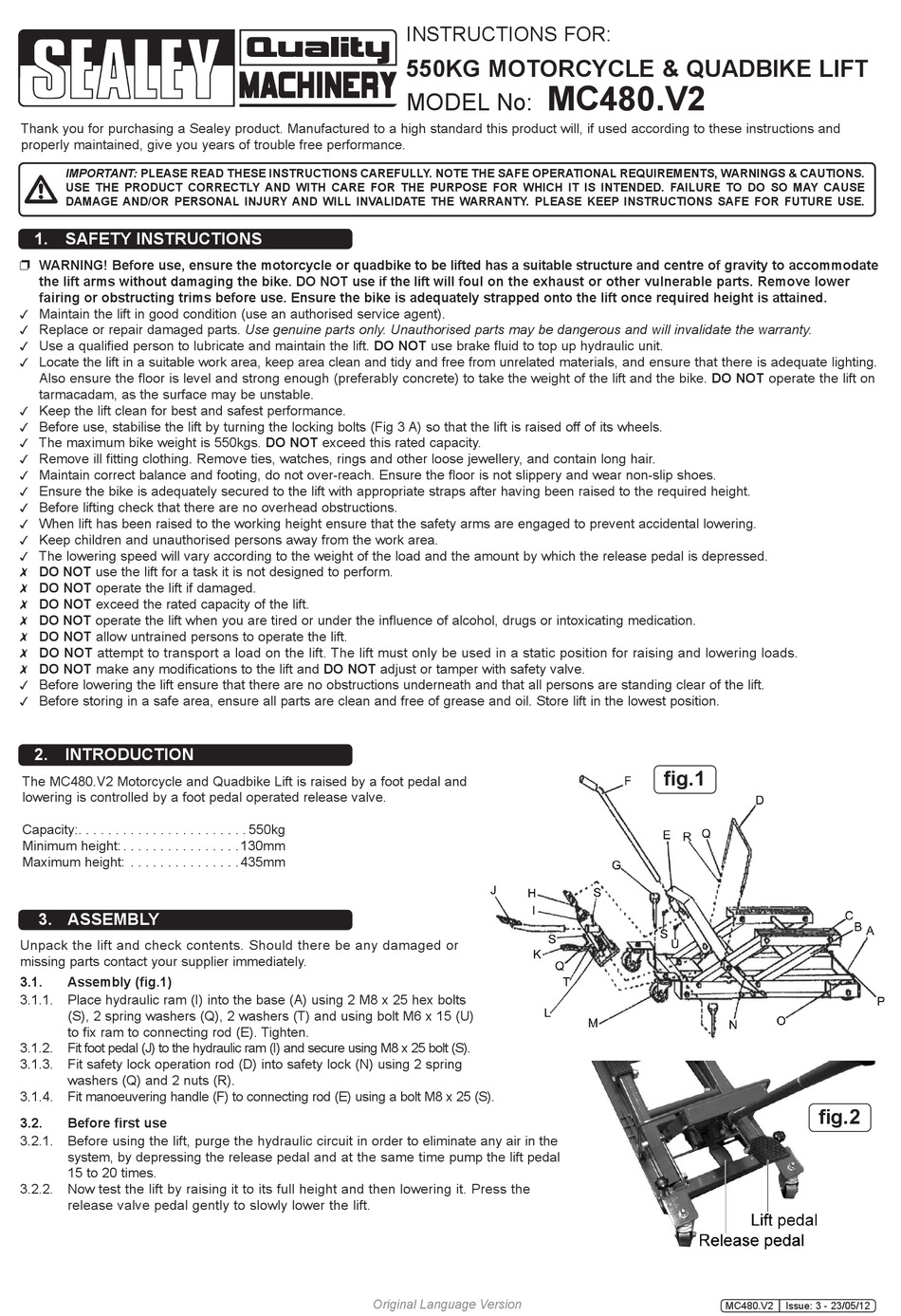

Sealey MC480.v2 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEaSE REad THESE iNSTRuCTiONS CaREFuLLY. NOTE THE SaFE OPERaTiONaL REquiREMENTS, WaRNiNgS & CauTiONS.
uSE THE PROduCT CORRECTLY aNd WiTH CaRE FOR THE PuRPOSE FOR WHiCH iT iS iNTENdEd. FaiLuRE TO dO SO MaY CauSE
daMagE aNd/OR PERSONaL iNJuRY aNd WiLL iNvaLidaTE THE WaRRaNTY. PLEaSE kEEP iNSTRuCTiONS SaFE FOR FuTuRE uSE.

1. SaFETY iNSTRuCTiONS

 WaRNiNg! before use, ensure the motorcycle or quadbike to be lifted has a suitable structure and centre of gravity to accommodate
the lift arms without damaging the bike. dO NOT use if the lift will foul on the exhaust or other vulnerable parts. Remove lower
fairing or obstructing trims before use. Ensure the bike is adequately strapped onto the lift once required height is attained.
Maintain the lift in good condition (use an authorised service agent).

replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

use a qualified person to lubricate and maintain the lift. dO NOT use brake fluid to top up hydraulic unit.

Locate the lift in a suitable work area, keep area clean and tidy and free from unrelated materials, and ensure that there is adequate lighting.

Also ensure the floor is level and strong enough (preferably concrete) to take the weight of the lift and the bike. dO NOT operate the lift on
tarmacadam, as the surface may be unstable.
Keep the lift clean for best and safest performance.

Before use, stabilise the lift by turning the locking bolts (fig 3 A) so that the lift is raised off of its wheels.

the maximum bike weight is 550kgs. dO NOT exceed this rated capacity.

remove ill fitting clothing. remove ties, watches, rings and other loose jewellery, and contain long hair.

Maintain correct balance and footing, do not over-reach. Ensure the floor is not slippery and wear non-slip shoes.

Ensure the bike is adequately secured to the lift with appropriate straps after having been raised to the required height.

Before lifting check that there are no overhead obstructions.

When lift has been raised to the working height ensure that the safety arms are engaged to prevent accidental lowering.

Keep children and unauthorised persons away from the work area.

the lowering speed will vary according to the weight of the load and the amount by which the release pedal is depressed.

 dO NOT use the lift for a task it is not designed to perform.
 dO NOT operate the lift if damaged.
 dO NOT exceed the rated capacity of the lift.
 dO NOT operate the lift when you are tired or under the influence of alcohol, drugs or intoxicating medication.
 dO NOT allow untrained persons to operate the lift.
 dO NOT attempt to transport a load on the lift. the lift must only be used in a static position for raising and lowering loads.
 dO NOT make any modifications to the lift and dO NOT adjust or tamper with safety valve.
Before lowering the lift ensure that there are no obstructions underneath and that all persons are standing clear of the lift.

Before storing in a safe area, ensure all parts are clean and free of grease and oil. store lift in the lowest position.


2. iNTROduCTiON

the Mc480.V2 Motorcycle and Quadbike Lift is raised by a foot pedal and
lowering is controlled by a foot pedal operated release valve.
capacity:. . . . . . . . . . . . . . . . . . . . . . . 550kg
Minimum height: . . . . . . . . . . . . . . . . 130mm
Maximum height: . . . . . . . . . . . . . . . 435mm

3. aSSEMbLY

unpack the lift and check contents. should there be any damaged or
missing parts contact your supplier immediately.
3.1. assembly (fig.1)
3.1.1. Place hydraulic ram (I) into the base (A) using 2 M8 x 25 hex bolts
(s), 2 spring washers (Q), 2 washers (t) and using bolt M6 x 15 (u)
to fix ram to connecting rod (E). tighten.
3.1.2. fit foot pedal (J) to the hydraulic ram (I) and secure using M8 x 25 bolt (s).
3.1.3. fit safety lock operation rod (D) into safety lock (n) using 2 spring
washers (Q) and 2 nuts (r).
3.1.4. fit manoeuvering handle (f) to connecting rod (E) using a bolt M8 x 25 (s).
3.2. before first use
3.2.1 Before using the lift, purge the hydraulic circuit in order to eliminate any air in the
.
system, by depressing the release pedal and at the same time pump the lift pedal
15 to 20 times.
3.2.2. now test the lift by raising it to its full height and then lowering it. Press the
release valve pedal gently to slowly lower the lift.
InstructIons for:
550kg MOTORCYCLE & quadbikE LiFT
MoDEL no:
Original Language Version
MC480.v2
fig.1
fig.2
Mc480.V2 Issue: 3 - 23/05/12
