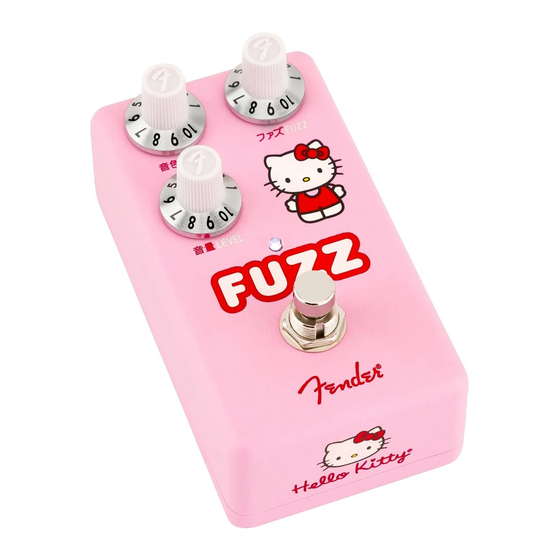

- Page 2 DC POWER CONNECTOR OUTPUT JACK INPUT JACK FUZZ TONE CONTROL CONTROL KNOB KNOB LEVEL CONTROL KNOB FOOTSWITCH 9V BATTERY SCREW ACCESS ON REAR...
- Page 3 H EL LO K IT T Y FUZ Z ® A fun-loving fuzz like no other—the Fender Hello Kitty Fuzz introduces a pop of color ® and charm to one of the pedal world’s most formative effects. Sporting an opamp-based circuit with three...
- Page 4 OUTPUT JACK Low-impedance output connects to amp or next pedal in signal chain. INPUT JACK High-impedance input for electric guitar, bass, acoustic guitars with pickup systems, keyboards and other instruments. DC POWER CONNECTOR Connect DC adapter here. Standard center-negative 9VDC jack for use with appropriate power supplies.
- Page 5 INTERNAL TRIM POTENTIOMETER (ACCESSIBLE BY REMOVING COVER) TONE 2 trim pot adjusts high-frequency character. Remove cover using a flat-head screwdriver. Adjust trim pot using a Phillips-head screwdriver. TONE 2 TRIM POT 9V BATTERY (NOT INCLUDED)
- Page 7 A PRODUCT OF FENDER MUSICAL INSTRUMENTS CORPORATION CORONA, CALIFORNIA, U.S.A. Fender is a registered trademark of FMIC. ® Copyright © 2024 FMIC. All rights reserved. PN 7730389000 REV A IMPORTANT SAFETY INSTRUCTIONS •WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture.
- Page 8 © FENDER MUSICAL INSTRUMENTS 2024 Fender Musical Instruments Corp. 1575 N. Gower St. Los Angeles, Calif. 90028 www.fender.com...
