- Page 1 Ratio Mobi Box MANUAL...
- Page 2 Thank you for choosing Ratio Mobi box io1 Manufacturer Ratio Electric B.V. Ambachtsstraat 12 NL – 3861 RH Nijkerk The Netherlands Tel. +31-33-2452360 info@ratio.nl UK English - Original www.ratio.nl EV030 - V01.3 - 10/2024...
- Page 3 Disclaimer of liability Ratio Electric B.V. cannot be held responsible for personal injury, damage to the product or property damage caused by incorrect use, foreseeable misuse or failure to follow the instructions in this manual. This also applies to unauthorized modifications of the product and the use of non-approved spare parts, tools or accessories.
-
Page 4: Table Of Contents
1.3. Reasonably foreseeable misuse 1.4. Qualification of personnel Service 1.5. Safety precautions Warranty Description of the product 2.1. Charger components 10. Disposal Technical data 3.1. Nameplate/Marking Transport and storage 4.1. Transport 4.2. Storage 5.1. Start charging 5.2. Stop charging Ratio Mobi Box Manual... -
Page 5: Safety
Messages that are not hazard-related are indicated with the signal word NOTICE. These messages do not have a safety alert symbol. Signal word Meaning NOTICE Could result in damage to the product when instruction is ignored or not followed correctly Note Additional information or emphasis on an instruction www.ratio.nl... -
Page 6: Intended Use

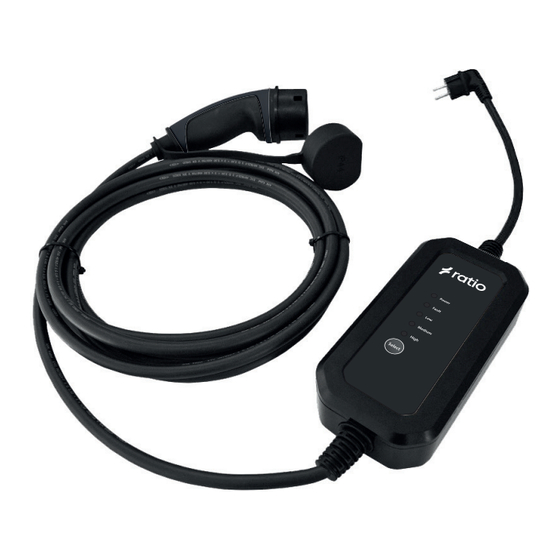

1.2. Intended use The Ratio Mobi Box is a mobile charger intended to charge electrical vehicles using power from the household power grid. The product can be operated indoors and outdoors. Depending on the charger version, the product can be plugged into standard Plug or CEE outlets and allows you to charge your EV when there is no charge point available. -
Page 7: Safety Precautions
• Do not use this product if it does not function according to the instructions in this manual. Seek advice from Ratio, your vendor, or a qualified electrician or serviceman. • Do not remove the charging plug while a charging session is active. - Page 8 • Do not expose the internal components product to moisture. • Do not immerse the product in water or any other liquid. • The charging cable is liable to get warm during normal operation. Ratio Mobi Box Manual...
-
Page 9: Description Of The Product
2.1. Charger components Power Fault Power Fault Medium Medium High High Select Select Grounded plug Power LED CEE plug Fault LED EV charging connector Active charging current LEDs* Charging current selector *charging currents may differ based on region/charger version www.ratio.nl... -
Page 10: Technical Data
Technical data Product name Mobi box io1 Art. no. 313xx Charging System IEC61851, Mode 2 EV charging connector IEC 62196, type 1 or type 2 Wall outlet connector IEC 60309 CEE plug Schuko plug Power input single-phase, 230V AC, 16A... -
Page 11: Nameplate/Marking
Manufacturer LED explanation table Maximum charging current* Rated input power Product number Ratio product number Product serial number UKCA compliance markin g CE compliance marking IP protection rating Firmware/hardware version Operating temperature range... -
Page 12: Use
The active charging current LED switches off. 1 . Unplug the EV charging connector from the EV. 2 . Unplug the power plug from the power outlet. Medium Note: Always unplug the EV charging connector first. High Select Ratio Mobi Box Manual... -
Page 13: Troubleshooting
Ratio Electric B.V. Maintenance Ratio chargers are practically maintenance-free, aside from periodic cleaning of the housing. 1 . Switch off the charger before cleaning the housing. 2 . Clean the Mobi Box using a soft cloth lightly moistened with mild detergent solution. -
Page 14: Service
Service To avoid risk of electric shock, only qualified electricians should perform service or maintenance on the charger. If your charger is in need of servicing, please contact Ratio, your local vendor or a qualified electrician. Warranty Ratio Electric B.V. warrants this product to be free from defects in material, manufacture and design for a period of 3 years after the date of purchase. -
Page 15: 10. Disposal
This device must accept any interference received, including interference that may cause undesired operation. This product has been designed to protect against Ratio Frequency Interference (RFI). However, there are some instances where high powered radio signals or nearby RF-producing equipment (such as digital phones, RF communications equipment, etc.) could affect operation. - Page 16 Ratio Electric B.V. Ambachtsstraat 12 NL – 3861 RH Nijkerk The Netherlands Tel. +31-33-2452360 For more information see info@ratio.nl our website. www.ratio.nl...
